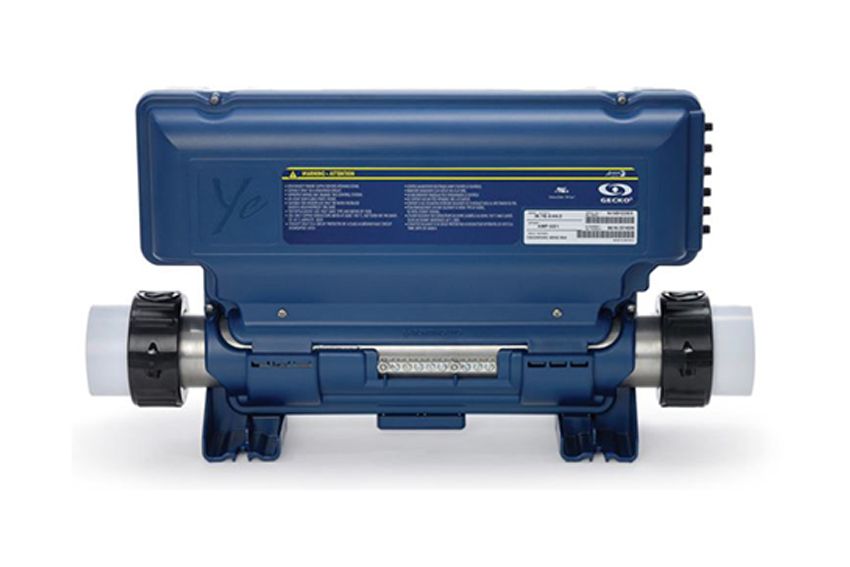

Gecko IN.YE-5 Control Box

£501.85 £418.21
10 In stock
Gecko IN.YE-5 Control Box - please see inside for topside and system compatibility.
0610-221045-338
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

This is a Gecko IN.YE-5 Control Box with 3KW heater, a perfect choice for entry level - mid range spas with 1 pump (1 or 2 speeds), 2 pump (1 or 2 speeds), Blower, Circulation pump or Ozone System.

It supports 5 configurable outputs (equipped with 5 relays, hence the number 5 in its YE-5  and can easily be installed and connected to pumps and accessories, dual speed pumps use 2 outputs

It delivers optimal performance and has the ability to open up to the addition of add-ons such as wireless control from mobiles, audio streaming and water sanitation, increasing your spa experience.

The configuration of this pack is done via the keyboard by choosing one of the pre-registered options available to you. Please contact you tech team if you have any questions regarding this

  • IPX5 rated waterproof
  • Solid state water flow detection
  • Programmable filter cycles
  • Self diagnostic
  • Aeware keypad compatible
  • Supports 1,2,3 phase input power
  • In.Touch Wireless remote compatible
  • Protection against overheating
  • Easy installation
  • Quick Connect, AMP connections available
  • Integrated temperature probe

Dimensions: (W x H x D) 19.58" x 10.75" x 4.98" (497 x 273 x 126 mm)
Weight: 9.7 lb (4.4 kg)

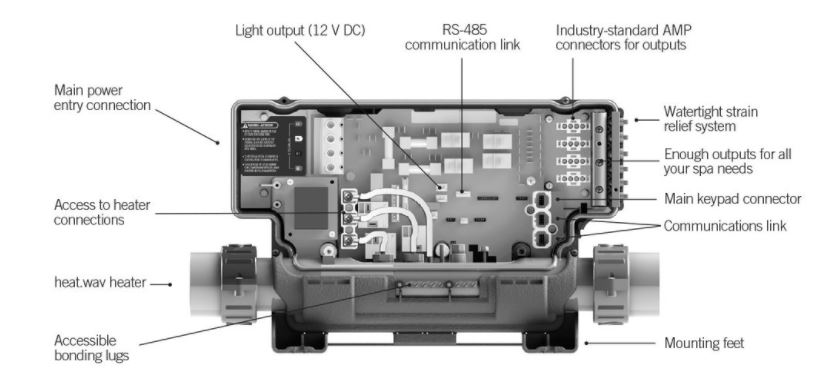

The Control Box Supports:

5 Outputs
3kW heater
12V Light
Keypad

In essence:

5 Outputs (Note: 2 speed pumps use 2 outputs) so Pump 1, Pump 2, Pump 3, Pump 4, Pump 5, Blower, Circ Pump, Ozone.

So you could set it up for example as: Pump 1-2speed (2 outputs), Pump 2 -1speed, Blower and Ozone. If using both circulation and ozone system, it must be in the same voltage and will need an Amp splitter harness as in related products


in.ye5 system



Below are some of the packs that this unit replaces

Old references :

Wellis P/N replacement: ACM0756

0610-221003 **IN.YE-5-H3.0-AMP-CE-GE1
0610-221004 **IN.YE-5-H4.0-AMP-CE-GE1
0610-221005 **IN.YE-3-H4.0-CE-GE1
0610-221006 **IN.YE-5-H3.0-AMP-CE-GD1
0610-221007 **IN.YE-3-H3.0-AMP-CE-GE1
0610-221008 **IN.YE-3-H3.0-AMP-CE-GD1
0610-221011 **IN.YE-3-H4.0-CE-BF1
0610-221012 **IN.YE-3-H3.0-AMP-CE-GE2
0610-221013 **IN.YE-3-H4.0-CE-GE2
0610-221014 **IN.YE-5-H4.0-AMP-CE-GE2
0610-221015 **IN.YE-5-H3.0-AMP-CE-GE2
0610-221016 **IN.YE-3-H3.0-AMP-CE-GD1
0610-221017 **IN.YE-5-H3.0-AMP-CE-GD2
0610-221022 IN.YE-5-H3.0-REG-AMP-CE-D11 (Dimension One spas, contact our tech team)
0610-221023 **IN.YE-5-H2.0-REG-AMP-CE-D11 (Dimension One spas, contact our tech team)
0610-221025 **IN.YE-3-H4.0-AMP-CE-GE3
0610-221026 **IN.YE-3-H2.0-CE-BF1
0610-221027 **IN.YE-3-H2.0-AMP-CE-GD2
0610-221028 **IN.YE-3-H4.0-AMP-CE-GD1
0610-221031-287 **IN.YE-5-H3.0-AMP-CE-GD2
0610-221032 **IN.YE-3-H4.0-AMP-CE-EM1
0610-221034 **IN.YE-5-H4.0-AMP-CE-EM1
0610-221037 **IN.YE-3-H3.0-AMP-CE-AX1
0610-221038 **IN.YE-5-H3.0-AMP-CE-AX1
0610-221041-298 **IN.YE-5-H3.0-CE-WK (Hotspring / Caldera spas, contact our tech team)
0610-221043 **IN.YE-3-H3.0-AMP-CE-AM1
0610-221044-334 **IN.YE-3-H3.0-AMP-CE-V2-WE1
0610-221044-336 **IN.YE-3-H3.0-AMP-CE-V2-GD3
0610-221044-373 *IN.YE-3-H3.0-AMP-CE-V2-AS1
0610-221044-374 IN.YE-3-H3.0-AMP-CE-V2-DE1
0610-221044-380 **IN.YE-3-H3.0-AMP-CE-V2-GD3 (contact our tech team)
0610-221044-411 IN.YE-3-H3.0-AMP-CE-V2-HY1
0610-221045-335 IN.YE-5-H3.0-AMP-CE-V2-WE1 (Wellis spas, contact our tech team)
0610-221045-338 IN.YE-5-H3.0-AMP-CE-V2-GD5
0610-221045-339 IN.YE-5-H3.0-AMP-CE-V2-AX1
0610-221045-341 IN.YE-5-H3.0-TI-AMP-CE-V2-AM1
0610-221045-375 IN.YE-5-H3.0-AMP-CE-V2-DE1
0610-221045-393 *IN.YE-5-H3.0-AMP-CE-V2-PL1
0610-221045-413 *IN.YE-5-H3.0-AMP-CE-V2-HY1
0610-221045-416 IN.YE-5-H3.0-AMP-CE-V2-SI1
0610-221045-561 IN.YE-5-H3.0-AMP-CE-V2-AS1
0610-221049-348 *IN.YE-5-H3.0-CE-485-V2-WK1 (Hotspring / Caldera spas, contact our tech team)
0610-221050 **IN.YE-5-H3.0-AMP-CE-AM1
0610-221052 **IN.YE-3-H3.0-AMP-CE-AS1
0610-221055 **IN.YE-5-H3.0-AMP-CE-DE1
0610-221056 **IN.YE-3-H3.0-AMP-CE-DE1
0610-221057-342 IN.YE-3-H4.0-CE-V2-BF1 (Artic spas, contact our tech team)
0610-221059-343 *IN.YE-5-H3.0-REG-AMP-CE-V2-D11 (Hotspring / Caldera spas, contact our tech team)
0610-221060-344 *IN.YE-5-H2.0-REG-AMP-CE-V2-D11 (Dimension One spas, contact our tech team)
0610-221061-345 IN.YE-3-H2.0-CE-V2-BF1 (Artic spas, contact our tech team)
0610-221062-337 IN.YE-3-H2.0-AMP-CE-V2-AX1
0610-221062-346 **IN.YE-3-H2.0-AMP-CE-V2-GD3
0610-221062-409 IN.YE-3-H2.0-AMP-CE-V2-DE1
0610-221062-560 IN.YE-3-H2.0-AMP-CE-V2-AS1
0610-221063-347 **IN.YE-3-H4.0-AMP-CE-V2-GD3
0610-221064-352 IN.YE-3-H3.0-TI-AMP-CE-V2-AM1
0610-221069-380 IN.YE-3-H3.0-AMP-3P-CE-V2-WE1 (Wellis spas, contact our tech team)
0610-221069-417 IN.YE-3-H3.0-AMP-3P-CE-V2-SI1 (Replaced by the 0610-221069-382 model)
0610-221070-383 IN.YE-3-H4.0-AMP-3P-CE-V2-GD3
0610-221071-384 IN.YE-3-H2.0-AMP-3P-CE-V2-GD4
0610-221072-390 IN.YE-5-H3.6-AMP-CE-V2-GD4
0610-221072-420 *IN.YE-5-H3.6-AMP-CE-V2-DY1
0610-221073-391 IN.YE-5-H4.0-CE-V2-BF1 (Artic spas, contact our tech team)
0610-221076-348 IN.YE-5-H0.0-CE-485-V2-WK1 (Hotspring / Caldera spas, contact our tech team)
0610-221078-420 *IN.YE-5-H2.0-AMP-CE-V2-DY1
0610-221079-424 *IN.YE-5-H3.0-AMP-CE-V2-CL1
0610-221081-562 IN.YE-5-H3.0-AMP-CE-V2-LP1 (Leisure spas, contact our tech team)

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable
