Harwil Reed Flow Switch - 2 barb

£90.79 £75.66

Availability: 6 In stock

This is the complete assembly has a clear Tee with 2 x 3/4 inch barb straight through boxed end connectors.

MPN: Q-12DS

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

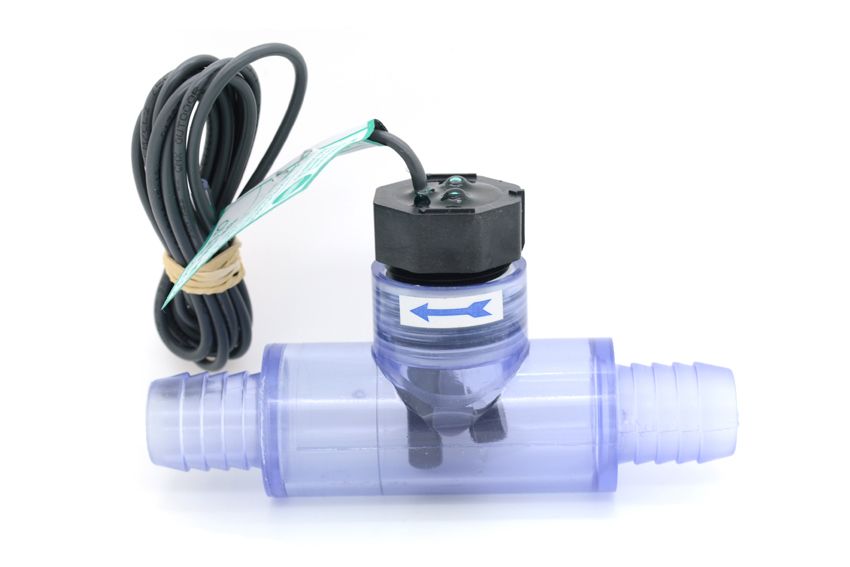

This Harwil Reed Flow Switch assembly comes complete with the Harwil Flo Switch and a clear plastic housing comprising of 2 x 3/4 inch barb straight through boxed end connectors, it is essential to measure the flow switch dimensions prior to purchasing.

We supply the same switch with a 3 pin plug (2 wire) here.

testing ebay

Dimensions

Flo Switch Thread diameter: 1"
Flo Switch Grey probe length : 1"
Tee Length: 125mm
Tee Height: 65mm

Ideal For

Certain Artesian, DIMENSION ONE SPAS® & LA Spa models

All 1-Pump SUNDANCE SPAS® with the 6500-301, 6500-310 Heater
Except for 2001+ Capri :

SUNDANCE SPAS® Part Ref: 6560-857

Additional Info

The arrow on the side of the switch shows the direction of flow and which way the unit must be positioned, the thread must be completely wound in.

Be aware this product has the code Q-12DS-C2 on the label - this is used on varying models within the range all with differing parameters always check the probe length and the connector type for confirmation of unit.
