HydroAir HA400 pump

£249.61 £208.01
Out of stock. Available for back order.
Hydroair HA400 pump.
22-40171
- +
Add to Wishlist

In-stock orders dispatched:14:00

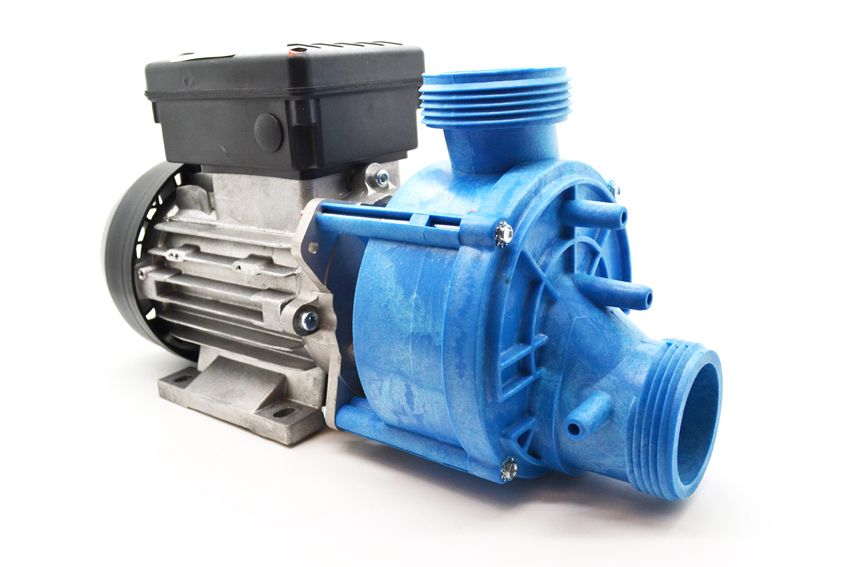

A Hydroair HA400 Circulation Pump, Whirlpool Bath Pump. Hydroair code 22-40171.

The unit comes complete with a self drain centre discharge blue wet end.

Not sure which pump you need?

Below is a breakdown of what to check. First will be AMPs and RPMs.
  • If there is only one rating then it will be a single speed, if there is two, you guessed it ... two speed.
  • AMP ratings will typically be 5 – 7 amps = 1.5 (HP), 7–9 amps = 2.0 (HP), 9–11 amps = 2.5 (HP), 11–12 amps = 3.0(HP) & 14–15 amps = 4.0 (HP)
  • RPM rating will normally be 1450 for low speed and 2900 for high speed.
Next, check the outside diameter's of the threads for your pipe connections.



Most wet ends can be rotated to 3, 9 and 12 o'clock so no need to worry about that.

It is worth checking overall dimensions of the pump before ordering to ensure you have enough space for the new pump.

Now you have all the information to look through our Jet Pump Range!

Motor Power (P1): HP 1.1 HP
Volts / Hz: 230V / 50Hz
Amps: 3.6 A
Suction / Discharge: outside Ø 1.5'' x 1.5'' (62x62mm)
Pneumatic Switch: Yes
Cord / Plug Type: Bare End

This version is fitted with a pneumatic (air) switch so on/off operation is possible either by air buttons or electronic controls.

Direct Replacement for:

Persius 450 - 21-4532 & 45321

Genesis Compact - GXD75-2XC-S1, GXD75-2XD-S1

Koller, Stuart Turner, JA35,50,75, Superflow, LX, Seriem, GG Ind, Team
