Indux 1

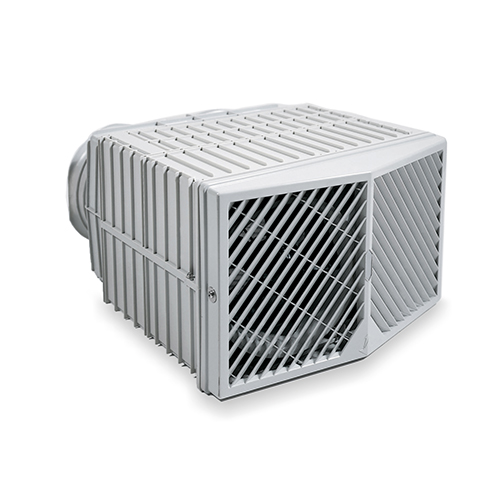

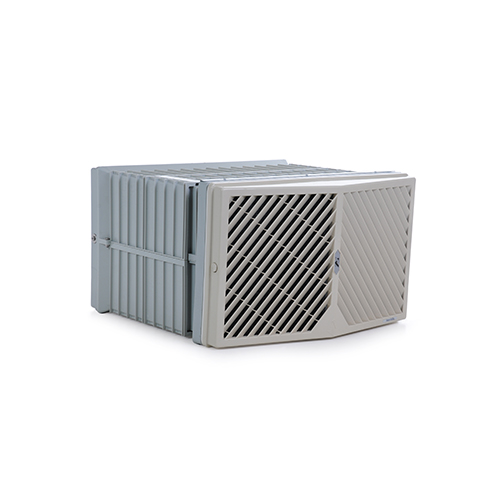

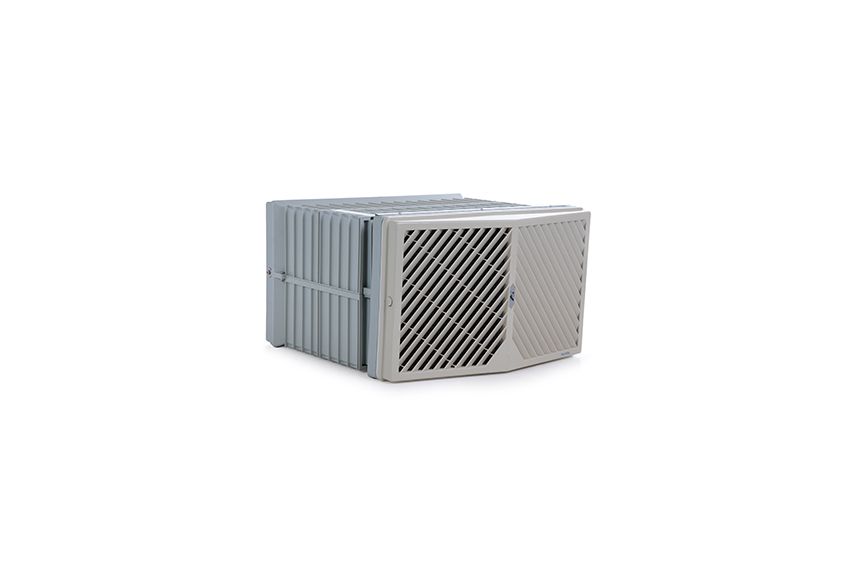

Indux E300 heat recovery makes the unit ideal for swimming pools, examination rooms, changing rooms, laundries, virtually all environments where ventilation and fresh air are required.
How It Works
The E300 uses 2 specially developed mix flow fans to simultaneously supply and extract air. Both streams are passed through a plastic heat exchanger which extracts heat from the stale exhaust air and pre-warms fresh air supply. Extract and supply air streams do not touch. The heat exchanger consumes no power.
High Performance is achieved because of the special fan design which develops high pressure at low noise levels.
High Efficiency is achieved because of a breakthrough in the technology of heat exchanger manufacture. The all polymer welded construction provides up to 70% heat recovery by using maximum possible plate area with minimum pressure drop.
Performance

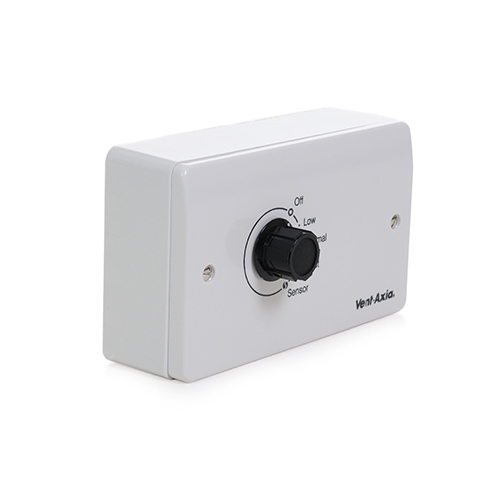

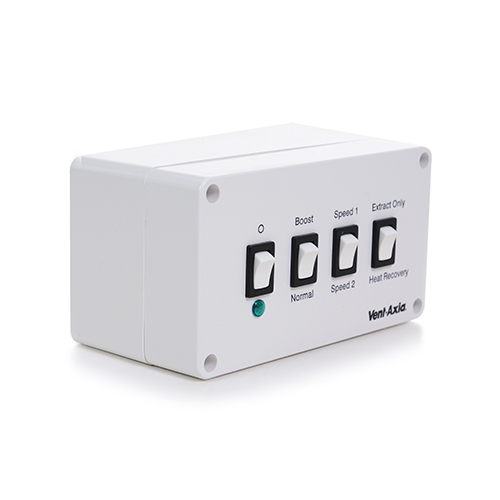

The E300 is fully controllable by use of a dedicated 3 speed controller. Automatic On / Off control or switching to boost is easily achieved. A separate humidistat can be used in conjunction with this equipment offering further flexibility.
Integra Plus EC
- Up to 135 l/s FID.
- Balanced ventilation is achieved by using nominal 150mm ducting.
- Up to 70% heat recovery
- Low power consumption
- Effective condensation control
- 3 speed control (Normal, Boost and Purge)
- Summer mode
- EC motors

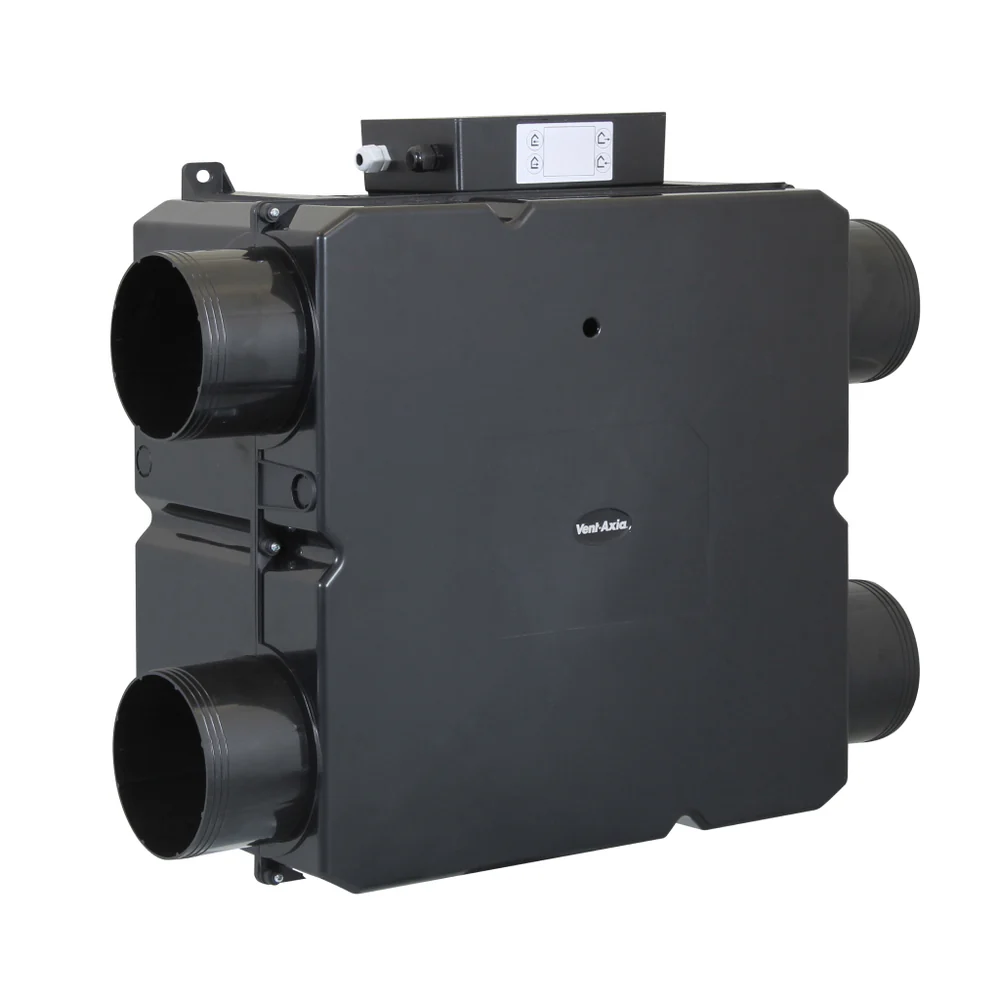

The Vent Axia Integra Plus EC Heat Recovery Unit has been specially designed to provide ventilation for flats or internal rooms in large residential, commercial, educational or leisure applications. The Vent Axia Integra Plus EC Heat Recovery Unit boasts a temperature efficiency of up to 70%. The compact cube interleaves outgoing moist air with incoming fresh air, allowing the heat from one to warm the other without the two air streams mixing.Energy is saved on room heating, with no power being used by the cube itself.
What's Included
- 2 integral centrifugal speed controllable EC fans plus a high-efficiency polymeric heat exchanger.
