SKU
170
E10-NSHNDNN2W

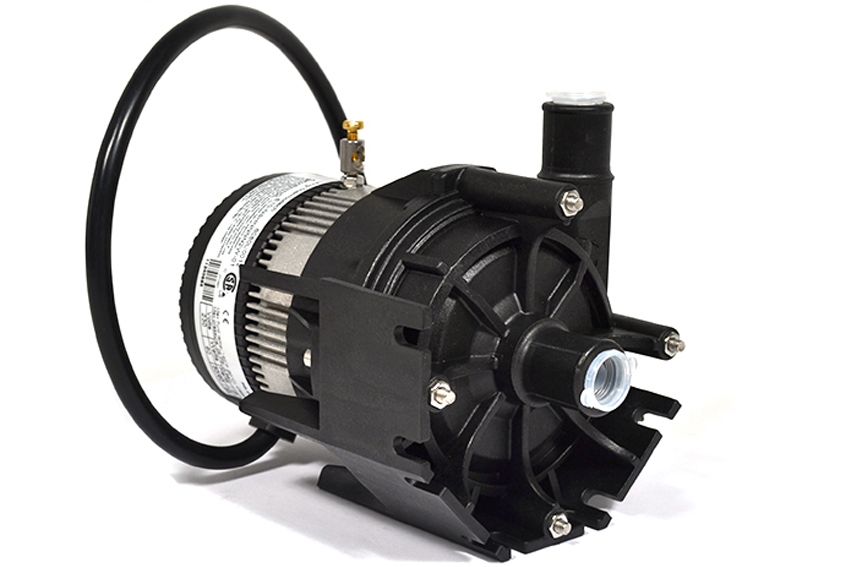

Laing E10 Circulation Pump 3/4 inch - smooth barb

£166.28 £138.57
22 In stock
The most common hot tub circ. pump brand in the UK - please read for full details
E10-NSHNDNN2W
- +
Add to Wishlist

In-stock orders dispatched:14:00

The Laing E-10 Circulation Pump replaces the previous red bodied versions, it was extremely common in the UK, believe it or not even with its popularity it has now been discontinued.

The new E10 uses 40% less energy and runs 40% cooler than previous models. It also includes a smart "chip" in the motor that gradually increases rpm at power up to ensure "air lock" free startups.

Laing pumps are commonly found on Dimension One, Sundance and Jacuzzi spas.

Connects to pipe work via 3/4" smooth barb.



  • Thermoplastic motor bracket is adjustable to 4 different discharge angles.
  • High density ceramic bearing ball and graphite impeller bearing cap designed for high efficiency and long life.
  • Highly efficient, clog resistant open impeller is dynamically balanced with carbon bearing for smooth ultra quiet operation.
  • Unique patented design has no mechanical seal which is a potential leak path.
  • Highly efficient and ultra quiet spherical motor design. Pump is designed for continuous operation. All ratings are within working limits of the motor
  • Whisper quiet, less than 40 db
  • Consumes 40% less energy
  • Dry Run Protection
  • Length: 154mm
  • Height: 125mm
  • Width: 105mm
  • Volts: 230
  • Hz: 50
  • RPM: 3200
  • Watts: 60

DIMENSION ONE SPAS® (p/n 01512-321) (please remove filter mesh this is essential not to burn pump out)

Previous iterations - that can be replaced

  • SM909NH-14 3/4" Barb,
  • SM909NHW-14 3/4" Barb,
  • SM909NH-18 3/4" Barb,
  • SM909NHW-18 3/4" Barb,
  • SM909-NH-26 3/4" Barb,
  • SM909NHW-26 3/4" Barb,
  • SM909NHW-26 3/4" Barb,
  • SM1212-NH-26 3/4" Barb,
  • SM1212-NH-26 3/4" Barb,
  • 6000-125

SUNDANCE® SPAS, Saratoga, LA Spa, Iberspa, Canadian Spa, Spa in a Box and other brands of spas.

It is easily adaptable to virtually any other spa.



This pump comes with either a metal plate or plastic base dependent on stock, both are exactly the same, the pump head can be simply rotated by moving a screw to your desired position.

Please note: This pump model can exist under different branded names and you may receive a pump with a different branded label.
Laing/Xylem is the Factory name. Some pumps are/were produced under different brand names such as Goulds, Lowara and ITT. The pump you receive will still be manufactured to the same specifications.

Your old pump will typically have had been 1/20hp and 88watt with 3/4" OD barb fittings. Typical Model Numbers: SM-959-NHW-14 thru SM-959-NHW-26. (Note that older models of this circulation pump may also have a motor capacitor mounted on the outside of it).
