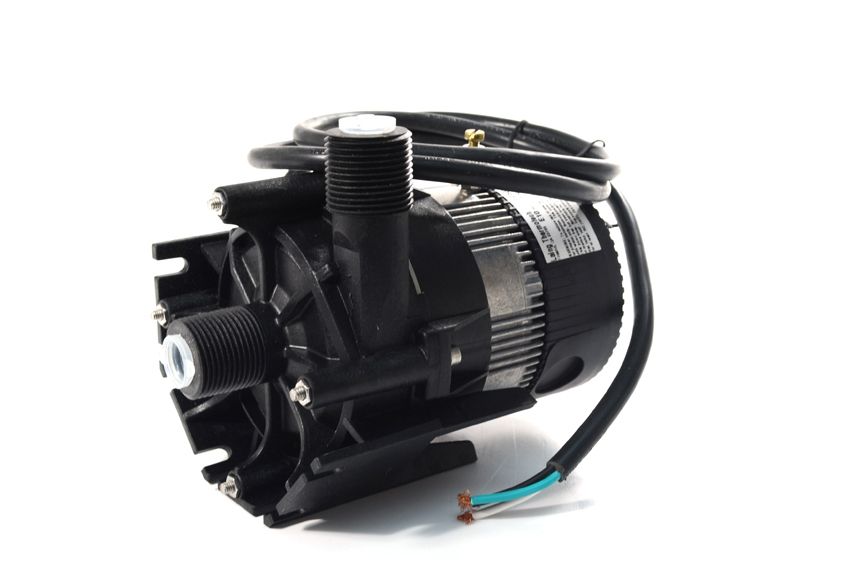

Laing E10 Circulation Pump - 3/4 inch - threaded barb

This is a relatively popular Laing Circulation Pump - sometimes has a code sm1252 ntw-24 on its sticker

Don't through away your old pump until this unit is fitted as even-though it comes with a cable you may need to fit your existing one.

• Thermoplastic motor bracket is adjustable to 4 different discharge angles.
• High density ceramic bearing ball and graphite impeller bearing cap designed for high efficiency and long life.
• Highly efficient, clog resistant open impeller is dynamically balanced with carbon bearing for smooth ultra quiet operation.
• Unique patented design has no mechanical seal which is a potential leak path.
• Highly efficient and ultra quiet spherical motor design. Pump is designed for continuous operation. All ratings are within working limits of the motor
• Whisper quiet, less than 40 db
• Consumes 40% less energy
• Dry Run Protection

154mm (L)

125mm (H)

105mm (W)

Connections: 3/4 inch Threaded barb
Volts: 230 / Hz: 50
Motor KW: 0.009 - 0.063
RPM: 4000 rpm

Fits Halliburton / Muskoka models

Replaces:

SM909NTW-14 3/4' Thread
SM909NTW-18 3/4' Thread
SM909NTW-26 3/4' Thread
