SKU
G153

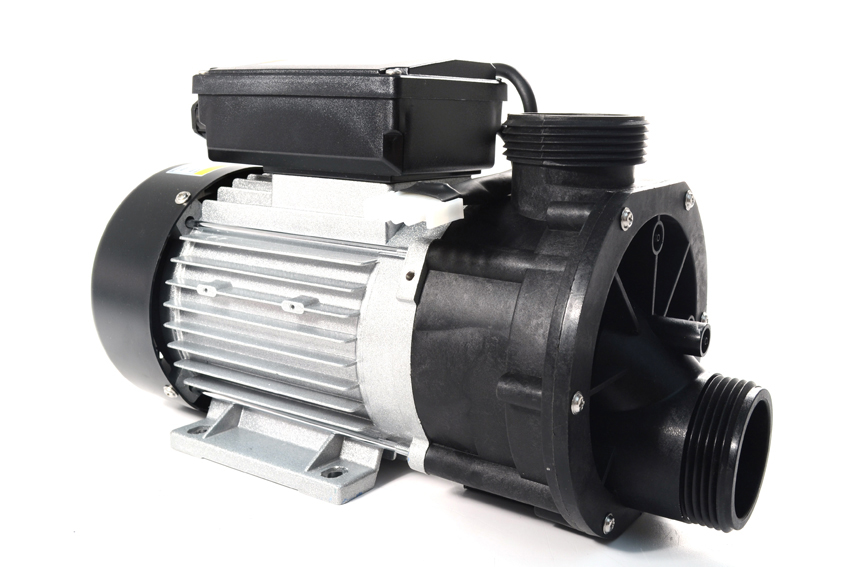

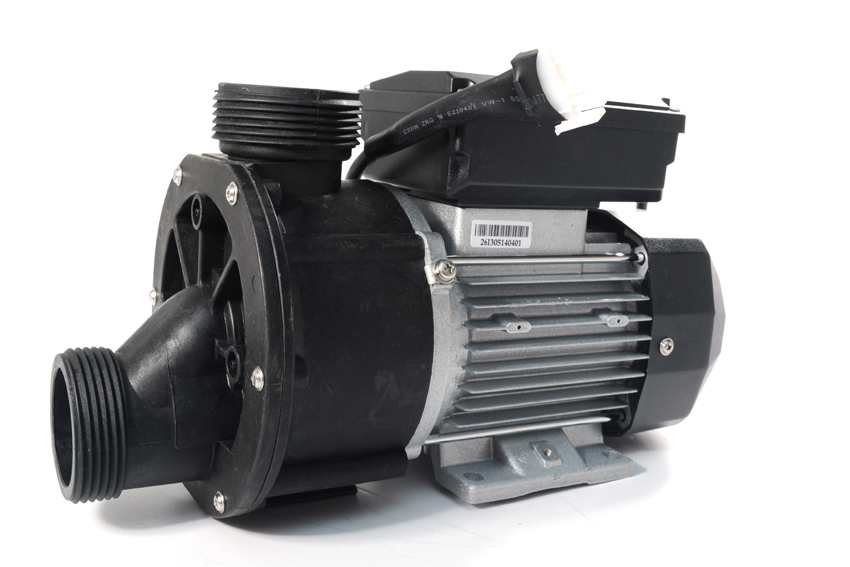

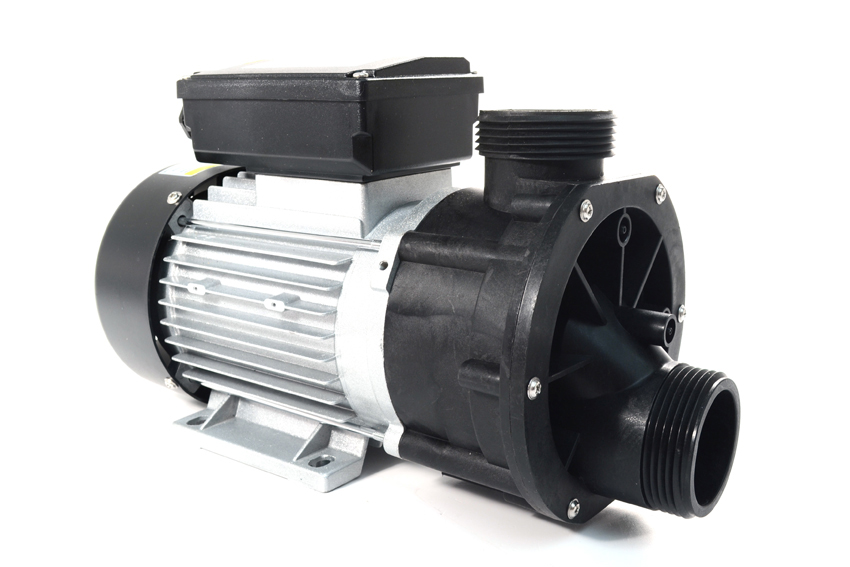

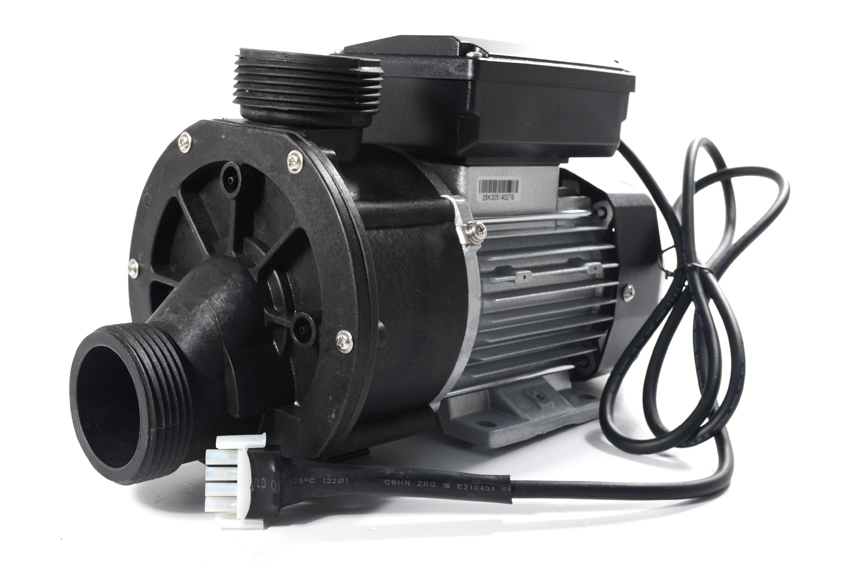

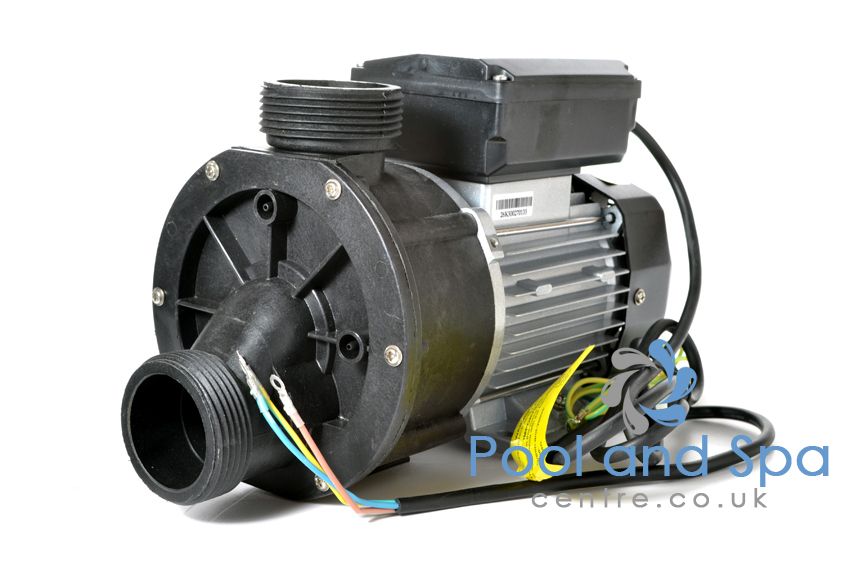

LX JA35, JA50, JA75, JA100 Circulation Pumps

The new JA range of chinese circulation pumps are commonly found in the UK market
Grouped product items
Product Name SKU MPN Price Qty Stock
LX JA35 LX JA35 173 JA35
£87.94 £73.28
- +
Available for
Back Order
LX JA50 LX JA50 269 JA50
£97.69 £81.41
- +
Available for
Back Order
LX JA75 LX JA75 270 JA75
£92.05 £76.71
- +
Available for
Back Order
LX JA100 LX JA100 18817 JA100
£106.13 £88.44
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

The JA range of Chinese circulation pumps come complete with unions for fitment

JA35 / JA50 / JA75:

Length: 325mm
Width: 155mm
Height: 185mm



JA100

Length: 350mm
Width: 160mm
Height: 205mm

JA35 JA50 JA75 JA100
Amps: 1.6 Amps: 2 Amps: 3.2 Amps: 3.8
Volts: 230 Volts: 230 Volts: 230 Volts: 230
Hz: 50 Hz: 50 Hz: 50 Hz: 50
RPM: 2900 RPM: 2900 RPM: 2900 RPM: 2900
Motor KW: 0.25  HP: 0.33 Motor KW: 0.37  HP: 0.5 Motor KW: 0.55  HP: 0.75 Motor KW: 0.75  HP: 1
Capacitor: 7uf Capacitor: 7uf Capacitor: 10uf Capacitor: 15uf
Fittings: 1.5 inch Fittings: 1.5 inch Fittings: 1.5 inch Fittings: 1.5 inch


These pumps are commonly found on spas in the UK including AMC Winer Spa, Chinese Spas, Spa Serve.

If you can't find a replacement for your DXD-8A, then the JA50 is the closet equivalent - some work may need to be undertook

The JA50 is a direct replacement for the Monarch Spanet XS-3C

The JA100 is a replacement for: Rocoi LDPB-140B, it is the same as the DXD pump and EA350 pump

The JA50 is Wellis Part Number ACM0077

Comes complete with cable.
