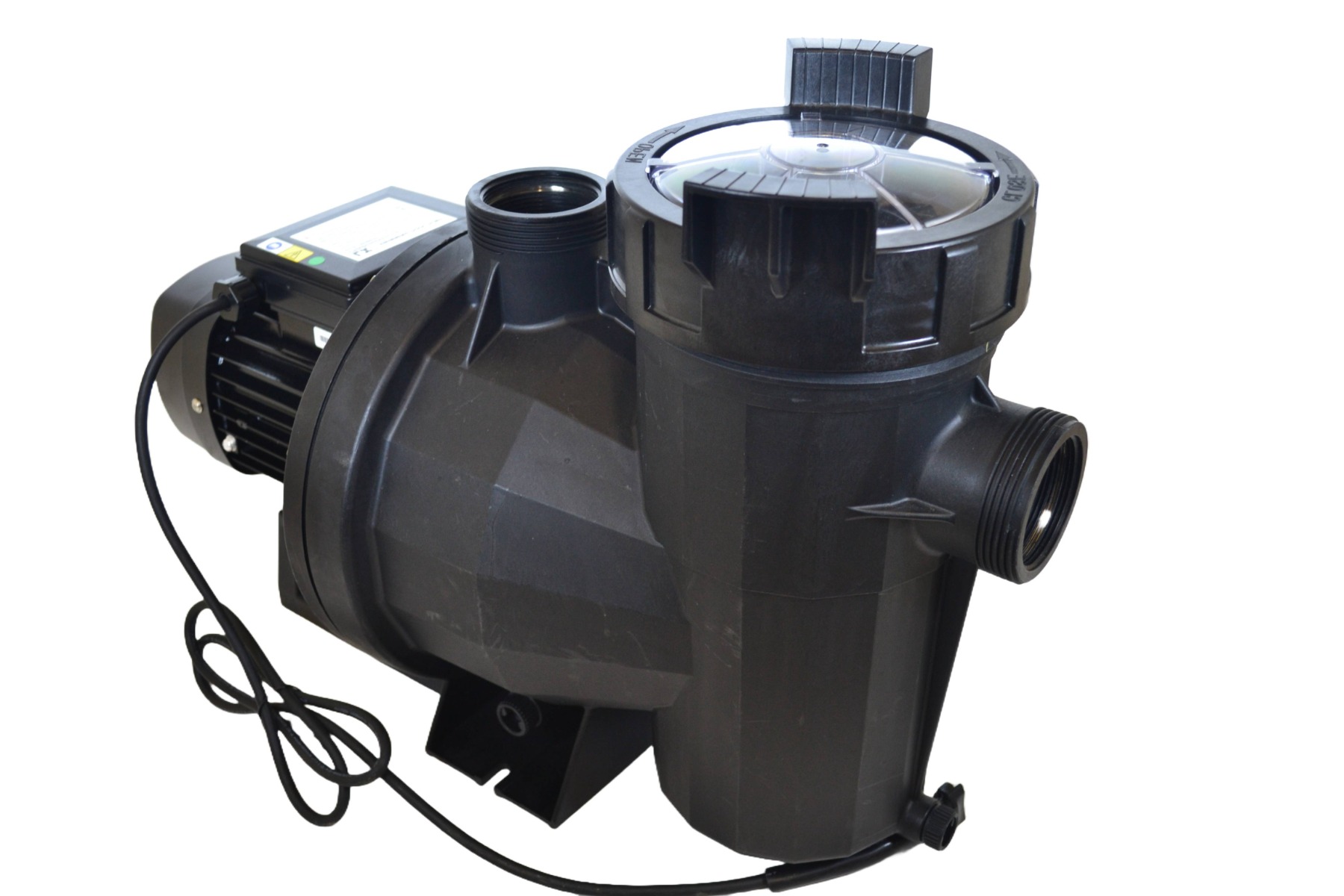

LX SVQ Pool Pump - to suit Astral Victoria + Pump

1. General

These units are designed to operate with clean water at a maximum water temperature of 50°C.

Built of top quality materials, they are subjected to strict hydraulic and electrical controls and are carefully verified.

Correct installation is ensured by following these instructions and those of the wiring diagram: otherwise, overloads may be produced in the motor. We decline responsibility for any damage caused by not following these instructions.

2.Installation

Through the holes in the supports to prevent undesirable noise and vibration.

The suction, pipe of the pump should be as short as possible.

The rating Label must be visible after installation.

Parts containing live parts, except parts supplied with safety extra low voltage <12V, must be inaccessible to a person in the swimming pool.

For Class I devices that do not have a plug, they must be permanently connected to a fixed wiring. Part including electrical components except remote control devices must be located or fixed 3.Pipe

3. Pipe Assembly

The suction and discharge pipes should have a diameter equal to or greater than that of the intake tapping of the pump.

Avoid traps as, in addition to affecting efficiency, they impede total overall emptying The suction and discharge pipes should not rest on the pump in any case.

Seal all the connectors and unions well. Avoid any dripping on the motor, which would unfailingly damage it.

The suction and discharge pipes should not rest above the pump in any case.

Seal all the connectors and unions well. Avoid any dripping on the motor, which would unfailingly damage it.

4. Electrical connection

The electrical install action should have a multiple separation system with contacts opening at least 3mm.

For continued protection against possible electric shock this unit is to be mounted to the base in accordance with the installation instructions.

1). The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.

The supply cable should comply with EMC standards.

2). Single-phase motors have built-in thermal protection.

The electric connection must be carried out by qualified staff following strictly the "EN60335-2-41" standard. Be sure that the earth cable connection is correctly made.

Be sure that the equipotential connection between the swimming pool and the pump is correctly Wires serving as equipotential bonding conductors shall have a cross sectiona are e between 2.5 mm? and 6mm and shall be equipped with the terminal suitable receptacie.

5. Controls Prior to Initial Start-up

Verify that the pump shaft turns freely.

Check that the mains voltage and frequency are according to the naminate.

Water levld be equipped with a system to prevent the pump from stating up fould conou

that indicated on the fan cover.

that indical is not present. Check the rotating di theip of remstor, which should concur with and their possible solutions that is provided further on.

and inet etati ng tart up. try to lecate the problen in the tale of nos common fauts

THE PUMP SHOULD NEVER OPERATE DRY.

6.Start-up

Start electrically the pump only when the suction and discharge pipes are connected to the corresponding inlets and outlets. Check that there is no obstacle in the pipes.

Apply voltage to the motor and suitably adjust the jets to obtain the desired flow.

7. Maintenance and clean
Our pumps do not require any special maintenance or programming.

If the pump will be idle for a long period of time, it is recommended to disassemble, clean and store it in a dry, well-ventilated place.

Pump can be automotive empty water after correct installation.

When the pump needs to clean (1) Filled with water to the level position of the nozzle,

(2) operating 2-3mimute, (3) exhausting water off after engine stop.

• Single Phase comes with 1.5m Cable and Amp Plug.
• Comes with Unions - Supplied with 1.5 inch imperial and white adapter which welds over the black fitting to convert to 2 inch . The white fitting has 2inch on the edge this is the end NOT to be welded .
