LX WTC50M Centre Suction Circulation Pump

£84.56 £70.47

Availability: Out of stock. Available for back order.

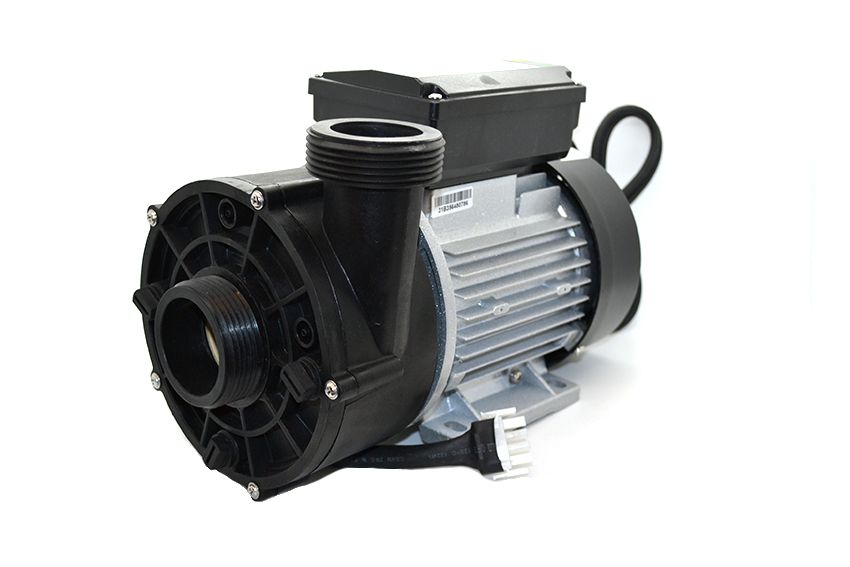

The WTC50M is a centre suction - 0.33hp circulation pump

MPN: WTC50M

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

This single speed pump is a short bodied and is rated as 1 hp, it is a self drain pump.Commonly used as a circulation pump on hot tubs and swim spas but can also be fitted to many whirlpool baths as well.

This is the replacement for Spa Command - Storm Force 1 / Replacement For BWSCSF1 commmonly used on Blue Whale Spas

Dimensions

Length: 290mm
Width: 160mm
Height: 200mm

Specifications

Amps: 1.0
Volts: 230
Hz: 50
RPM: 1400
Motor HP: 0.35
Capacitor: 7uf
Fittings: 1.5 inch
Motor KW: 0.25
Wet end impellor HP: 0.33

Includes

Comes complete with cable & unions

Spare Parts

LX WTC50M Wet End

Additional Info

LX pumps are not fitted with air switches. They can be retrofitted by a qualified electrician.

This model can be found on a Wellis Hot Tub under Part Number ACM0846.

It can also be used as a replacement for 6500-920 which can be found on JACUZZI® J375/J365/J355/J335 models.
Please note that this may require some pipework adjustment.
