A complete hot tub skid pack - 2 pump system with air
Available for Back Order
* Required Fields
£4.86 £4.05
In-stock orders dispatched:14:00

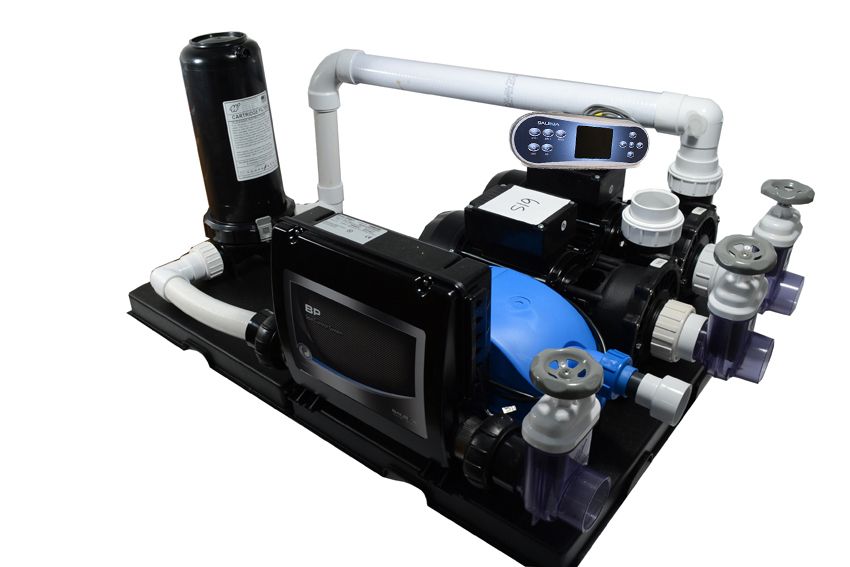

This is a complete hot tub skid pack (version 4) with the configuration for 1 x two speed pump / 1 x single speed pump and a blower, it utilises the best of the spa industries components to provide an easy to install solution for those complete renovations – it is also ideal for either plant room or self build projects.
All items arrive unassembled. We supply a photographic idiots assembly guide and all control system manuals are available on this page.
The assembly time is 1h30 – 2h30 for 1 person carrying out the work for the 1st time.
Traders, please note that there will be a set price for you, to see this please login and add the product to your basket.
Kit (approx): (L) 850mm x (D) 500mm x (H) 600mm.Topside: 187mm x 83mm
BP2100 system parameters
Control Box Power: Volts: 230vacSpecification:
Pump 1: Either a Dual speed pump or a Single speed pump and separate circulation pump.Pump 2: Either a Single or Dual speed pumpPump 3: Either a Dual speed pump or a Single speed pump, if a blower is being used belowAir Blower: Single speed blower (if pump 3 above is single speed)Heater: x 1 (3kW, plug)Ozone: x 1Light: x1, 10v @ 1amp MaxRadio/TV/AV: Point availableVolts: 230vacHz: 50These packs have a number of possible set ups. They are shipped in Set Up 1 mode so you may need to amend the dip switches on the PCB and the set up program within the topside controller according to your specific set up. Please refer to the tech sheet in the above associated documents. Some set ups may require an additional purchase of the BP2X-wire kit. This is available above.
1 x Balboa BP2100 control box with Balboa TP700 topside control
(topside silicone is available here if required)
1 x Waterway 25sq ft in-line filter (will come complete with a separate 50 sq ft filter to replace the 25sq ft filter pre-loaded),1 x Waterway 56f 2spd 2HP (2x2) pump.1 x Waterway 56f 1spd 2HP (2x2) pump.1 x Genesis Blower 900w with 250w heater1 x plumbing as shown in picture / glue1 x 4 pin cable (2 speed pump) + pins2 x 3 pin cable (1 speed pump, blower or ozone) + pins1 x 2 pin cable (Spa light) + pins
*If your system requires a circulation pump as well as a separate jet pump you will need to purchase another 1 x 3 pin cable along with the circulation pump. This system does not incorporate an ozone unit
When choosing your pack take into consideration the number of jets you wish to operate and their sizes, also think about the distance of the skid pack from the Spa. This directly affects pump performance.
A simple guide is if the skid pack is positioned right next to the spa an average of 15 - 20 average sized jets is achievable. This is then compromised the further away from the spa you go, at 5m (approx. 10 - 15 jets) & 10m as a guide (approx. 6 – 10 jets). If the Air Blower is further than 5m from the Spa you may need a higher output Air Blower.
If your design requires a different scenario please feel free to contact us.
You may require extra items such as wood screws 50mm to suit some 24mm flat penny washers, cable ties, etc, in order to install the skid pack depending on your circumstances. These can be obtained from any local DIY store.
This is a large value order and all parts included are typically in stock, because of variation of systems, please allow 48 - 72 hrs to get the skid items together before shipping as apposed to standard next day.
We kindly request you ring us prior to placing your order to ensure all is correct as this item is made to order and non returnable.
