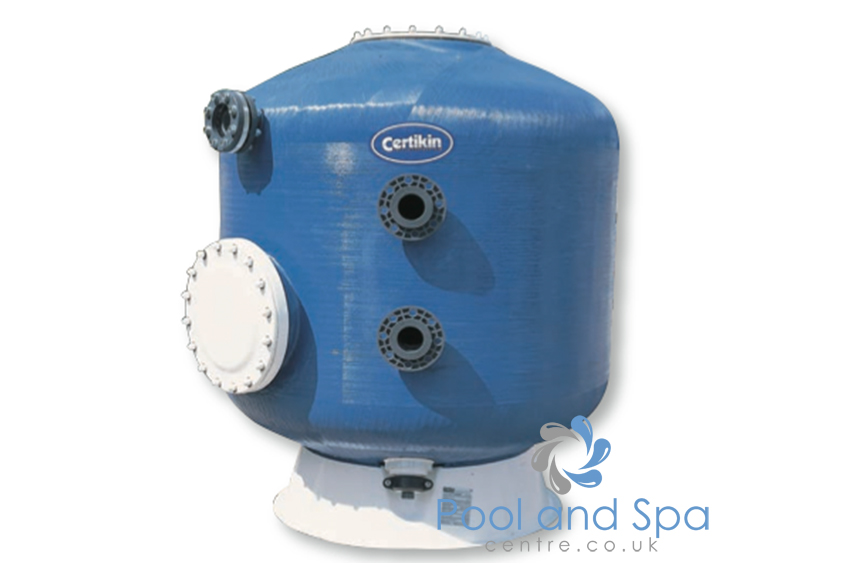

SLX Lateral Bobbin Wound Commercial Filters

The SLX filter is manufactured from bobbin wound fibreglass and polyester resin; the distribution and collection system from PVC/polypropylene.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
SLX Lateral Bobbin Wound Filter - 1050mm Filter with 75mm Connections (2.5 bar)	SLX Lateral Bobbin Wound Filter - 1050mm Filter with 75mm Connections (2.5 bar)	17663	SLX1050-30MX	£4,217.60 £3,514.67	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1200mm Ø 75mm Connections (33 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1200mm Ø 75mm Connections (33 m³/hr flow)	37852	SLX1200-30MX	£4,747.08 £3,955.90	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1400mm Ø 90mm Connections (46 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1400mm Ø 90mm Connections (46 m³/hr flow)	37853	SLX1400-30MX	£5,933.86 £4,944.88	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1600mm Ø 110mm Connections (60 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1600mm Ø 110mm Connections (60 m³/hr flow)	37854	SLX1600-30MX	£6,733.98 £5,611.65	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1800mm Ø 110mm Connections (76 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1800mm Ø 110mm Connections (76 m³/hr flow)	37855	SLX1800	£8,087.22 £6,739.35	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 200mm Ø 125mm Connections (94 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 200mm Ø 125mm Connections (94 m³/hr flow)	37856	SLX2000-30MX	£8,989.38 £7,491.15	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2350mm Ø 140mm Connections (130 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2350mm Ø 140mm Connections (130 m³/hr flow)	37857	SLX2350-30MX	£14,133.84 £11,778.20	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2500mm Ø 160mm Connections (150 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2500mm Ø 160mm Connections (150 m³/hr flow)	37858	SLX2500-30MX	£16,217.40 £13,514.50	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1050mm Ø 75mm Connections (34 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1050mm Ø 75mm Connections (34 m³/hr flow)	37859	SLX1050-40MX	£3,106.80 £2,589.00	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1200mm Ø 90mm Connections (45 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1200mm Ø 90mm Connections (45 m³/hr flow)	37860	SLX1200-40MX	£4,747.08 £3,955.90	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1400mm Ø 110mm Connections (61 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1400mm Ø 110mm Connections (61 m³/hr flow)	37861	SLX1400-40MX	£5,933.86 £4,944.88	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1600mm Ø 110mm Connections (80 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1600mm Ø 110mm Connections (80 m³/hr flow)	37862	SLX1600-40MX	£6,733.98 £5,611.65	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1800mm Ø 125mm Connections (101 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1800mm Ø 125mm Connections (101 m³/hr flow)	37863	SLX1800-40MX	£8,087.22 £6,739.35	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2000mm Ø 140mm Connections (125 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2000mm Ø 140mm Connections (125 m³/hr flow)	37864	SLX2000-40MX	£8,989.38 £7,491.15	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2350mm Ø 160mm Connections (175 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2350mm Ø 160mm Connections (175 m³/hr flow)	37865	SLX2350-40MX	£14,133.84 £11,778.20	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2500mm Ø 200mm Connections (200 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2500mm Ø 200mm Connections (200 m³/hr flow)	37866	SLX2500-40MX	£16,217.40 £13,514.50	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1050mm Ø 90mm Connections (43 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1050mm Ø 90mm Connections (43 m³/hr flow)	37867	SLX1050-50MX	£4,442.06 £3,701.72	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1200mm Ø 90mm Connections (56 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1200mm Ø 90mm Connections (56 m³/hr flow)	37868	SLX1200-50MX	£5,289.46 £4,407.88	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1400mm Ø 110mm Connections (77 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1400mm Ø 110mm Connections (77 m³/hr flow)	37869	SLX1400-50MX	£6,551.40 £5,459.50	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1600mm Ø 125mm Connections (100 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1600mm Ø 125mm Connections (100 m³/hr flow)	37870	SLX1600-50MX	£7,625.40 £6,354.50	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 1800mm Ø 140mm Connections (127 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 1800mm Ø 140mm Connections (127 m³/hr flow)	37871	SLX1800-50MX	£8,758.48 £7,298.73	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2000mm Ø 160mm Connections (157 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2000mm Ø 160mm Connections (157 m³/hr flow)	37872	SLX2000-50MX	£9,934.50 £8,278.75	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2350mm Ø 200mm Connections (217 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2350mm Ø 200mm Connections (217 m³/hr flow)	37873	SLX2350-50MX	£15,121.92 £12,601.60	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - 2500mm Ø 225mm Connections (245 m³/hr flow)	SLX Lateral Bobbin Wound Filter - 2500mm Ø 225mm Connections (245 m³/hr flow)	37874	SLX2500-50MX	£11,905.92 £9,921.60	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - Options for SLX Filter - SLX Filter media sight glass Ø110mm	SLX Lateral Bobbin Wound Filter - Options for SLX Filter - SLX Filter media sight glass Ø110mm	37875	SLXSG	£558.48 £465.40	- +	Available for Back Order
SLX Lateral Bobbin Wound Filter - Options for SLX Filter - SLZ Filter service hatch Ø400mm ( not available for 1050 or 1200Ø filters)	SLX Lateral Bobbin Wound Filter - Options for SLX Filter - SLZ Filter service hatch Ø400mm ( not available for 1050 or 1200Ø filters)	37876	SLXSH-400	£2,427.24 £2,022.70	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The SLX filter is manufactured from bobbin wound fibreglass and polyester resin; the distribution and collection system from PVC/polypropylene.

Gauges are supplied with all SLX filters.
All prices exclude filter media.
Filtration Rate up to 11m3/m2/hr is available POA.
Media sight glass and sand service hatch are available as optional extras.
1.0m or 1.2m bed depth available.
50mm laterals or plate and nozzle under drain system available.
Differential pressure gauge and double effect air vent supplied with all SLX filters.

Specifications

SKU	Description	Filteration Rate m³/m²/hr
17663	1050mm Filter with 75mm Connections (2.5 bar)	10-30m³/m²/hr
37852	1200mm Ø 75mm Connections (33 m³/hr flow)	10-30m³/m²/hr
37853	1400mm Ø 90mm Connections (46 m³/hr flow)	10-30m³/m²/hr
37854	1600mm Ø 110mm Connections (60 m³/hr flow)	10-30m³/m²/hr
37855	1800mm Ø 110mm Connections (76 m³/hr flow)	10-30m³/m²/hr
37856	200mm Ø 125mm Connections (94 m³/hr flow)	10-30m³/m²/hr
37857	2350mm Ø 140mm Connections (130 m³/hr flow)	10-30m³/m²/hr
37858	2500mm Ø 160mm Connections (150 m³/hr flow)	10-30m³/m²/hr
37859	1050mm Ø 75mm Connections (34 m³/hr flow)	30-40m³/m²/hr
37860	1200mm Ø 90mm Connections (45 m³/hr flow)	30-40m³/m²/hr
37861	1400mm Ø 110mm Connections (61 m³/hr flow)	30-40m³/m²/hr
37862	1600mm Ø 110mm Connections (80 m³/hr flow)	30-40m³/m²/hr
37863	1800mm Ø 125mm Connections (101 m³/hr flow)	30-40m³/m²/hr
37864	2000mm Ø 140mm Connections (125 m³/hr flow)	30-40m³/m²/hr
37865	2350mm Ø 160mm Connections (175 m³/hr flow)	30-40m³/m²/hr
37866	2500mm Ø 200mm Connections (200 m³/hr flow)	30-40m³/m²/hr
37867	1050mm Ø 90mm Connections (43 m³/hr flow)	40-50m³/m²/hr
37868	1200mm Ø 90mm Connections (56 m³/hr flow)	40-50m³/m²/hr
37869	1400mm Ø 110mm Connections (77 m³/hr flow)	40-50m³/m²/hr
37870	1600mm Ø 125mm Connections (100 m³/hr flow)	40-50m³/m²/hr
37871	1800mm Ø 140mm Connections (127 m³/hr flow)	40-50m³/m²/hr
37872	2000mm Ø 160mm Connections (157 m³/hr flow)	40-50m³/m²/hr
37873	2350mm Ø 200mm Connections (217 m³/hr flow)	40-50m³/m²/hr
37874	2500mm Ø 225mm Connections (245 m³/hr flow)	40-50m³/m²/hr
37875	Options for SLX Filter - SLX Filter media sight glass Ø110mm
37876	(Options for SLX Filter) - SLZ Filter service hatch Ø400mm (not available for 1050 or 1200Ø filters)

Additional Info

Please ring us for prices and availability of the filters listed below:

SLX1400-30MX	1400mm FILTER - 90mm CONNECTIONS - 2.5 bar - 30m_ - LATERAL TYPE
SLX1600-30MX	1.6m FILTER 110mm CONNECTIONS
SLX1800-30MX	1.8m FILTER 110mm CONNECTIONS
SLX2000-30MX	2.0m FILTER 125mm CONNECTIONS
SLX2350-30MX	SLX FILTER 2350-30 140mm CONNECTIONS
SLX2500-30MX	2500mm DIAMETER FILTER 160mm CONNECTIONS
SLX3000-30MX	3000mm DIAMETER FILTER 200mm CONNECTIONS
SLXSG	SLX FILTER MEDIA SIGHT GLASS - 90mm
SLXSH-400	SLX FILTER SERVICE HATCH - 400mm
SLXSH-500	SLX FILTER SERVICE HATCH - 500mm
SLX1050-30MXN	1050mm FILTER - 75mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX1200-30MXN	1200mm FILTER - 75mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX1400-30MXN	1400mm FILTER - 90mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX1600-30MXN	1600mm FILTER - 110mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX1800-30MXN	1800mm FILTER - 110mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX2000-30MXN	2000mm FILTER - 125mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX2350-30MXN	2350mm FILTER - 140mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX2500-30MXN	2500mm FILTER - 160mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX3000-30MXN	3000mm FILTER - 200mm CONNECTIONS - 2.5 bar - 30m_ - NOZZLE PLATE
SLX1050-40MXN	1050mm FILTER - 75mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX1200-40MXN	1200mm FILTER - 90mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX1400-40MXN	1400mm FILTER - 110mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX1600-40MXN	1600mm FILTER - 110mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX1800-40MXN	1600mm FILTER - 110mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX2000-40MXN	2000mm FILTER - 140mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX2350-40MXN	2350mm FILTER - 160mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX2500-40MXN	2500mm FILTER - 200mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX3000-40MXN	3000mm FILTER - 225mm CONNECTIONS - 2.5 bar - 40m_ - NOZZLE PLATE
SLX1050-50MXN	1050mm FILTER - 90mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX1200-50MXN	1200mm FILTER - 90mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX1400-50mxn	1400mm FILTER - 110mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX1600-50MXN	1600mm FILTER - 125mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX1800-50MXN	1800mm FILTER - 140mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX2000-50MXN	2000mm FILTER - 160mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX2350-50MXN	2350mm FILTER - 200mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX2500-50MXN	2500mm FILTER - 225mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLX3000-50MXN	3000mm FILTER - 250mm CONNECTIONS - 2.5 bar - 50m_ - NOZZLE PLATE
SLXAS	SLX FILTER AIR SCOUR PORT - 90mm
SLX1050-30MX4N	1050mm FILTER - 75mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX1200-30MX4N	1200mm FILTER - 75mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX1400-30MX4N	1400mm FILTER - 90mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX1600-30MX4N	1600mm FILTER - 110mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX1800-30MX4N	1800mm FILTER - 110mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX2000-30MX4N	2000mm FILTER - 125mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX2350-30MX4N	2350mm FILTER - 140mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX2500-30MX4N	2500mm FILTER - 160mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX3000-30MX4N	3000mm FILTER - 200mm CONNECTIONS - 4 bar - 30m_ - NOZZLE PLATE
SLX1050-40MX4N	1050mm FILTER - 75mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX1200-40MX4N	1200mm FILTER - 75mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX1400-40MX4N	1400mm FILTER - 90mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX1600-40MX4N	1600mm FILTER - 110mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX1800-40MX4N	1800mm FILTER - 110mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX2000-40MX4N	2000mm FILTER - 125mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX2350-40MX4N	2350mm FILTER - 140mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX2500-40MX4N	2500mm FILTER - 160mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX3000-40MX4N	3000mm FILTER - 200mm CONNECTIONS - 4 bar - 40m_ - NOZZLE PLATE
SLX1050-50MX4N	1050mm FILTER - 75mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX1200-50MX4N	1200mm FILTER - 75mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX1400-50MX4N	1400mm FILTER - 90mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX1600-50MX4N	1600mm FILTER - 110mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX1800-50MX4N	1800mm FILTER - 110mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX2000-50MX4N	2000mm FILTER - 125mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX2350-50MX4N	2350mm FILTER - 140mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX2500-50MX4N	2500mm FILTER - 160mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
SLX3000-50MX4N	3000mm FILTER - 200mm CONNECTIONS - 4 bar - 50m_ - NOZZLE PLATE
