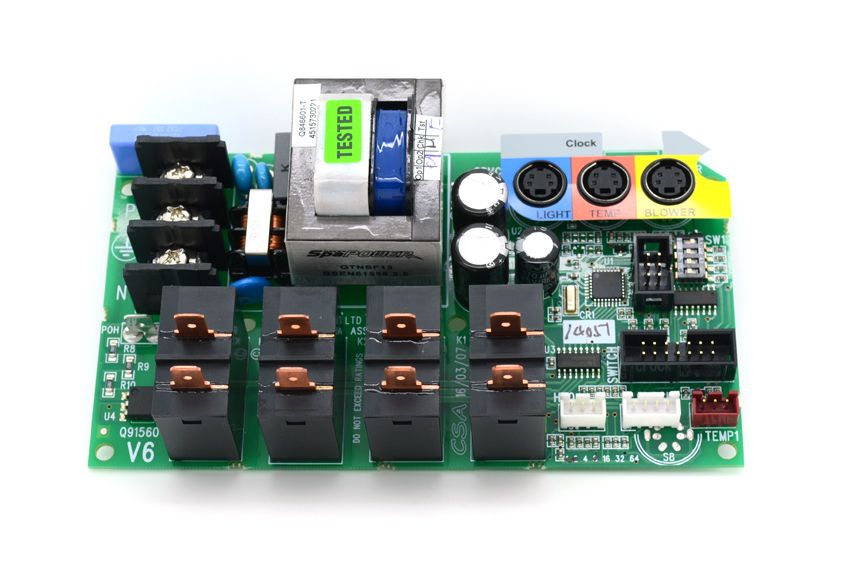

SpaQuip / Davey SP600/601 PCB Board

A PCB board from Spaquip - Q846601, please note it will typically be for the SP600/601 system.

Volts: 230vac
Hz: 50
KW: 1.5

Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single Speed (Only If Pump 1 Is Single Speed With Circ)
Air Blower: Single Or Variable Speed
1 x Light: 12v
1 x Ozone
1 x 1.5kw Heater

This hot tub circuit board must only be fitted to the hot tub control system specified, it should be fitted by a competent individual as all our boards are tested prior to sending out, so we recommend you read our easy to understand PCB installation notes in our troubleshooting section.

IMPORTANT INFORMATION:

Circuit boards and other computerised equipment are exempt from our returns policy if they have been opened or installed.

If the board is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the board is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.
