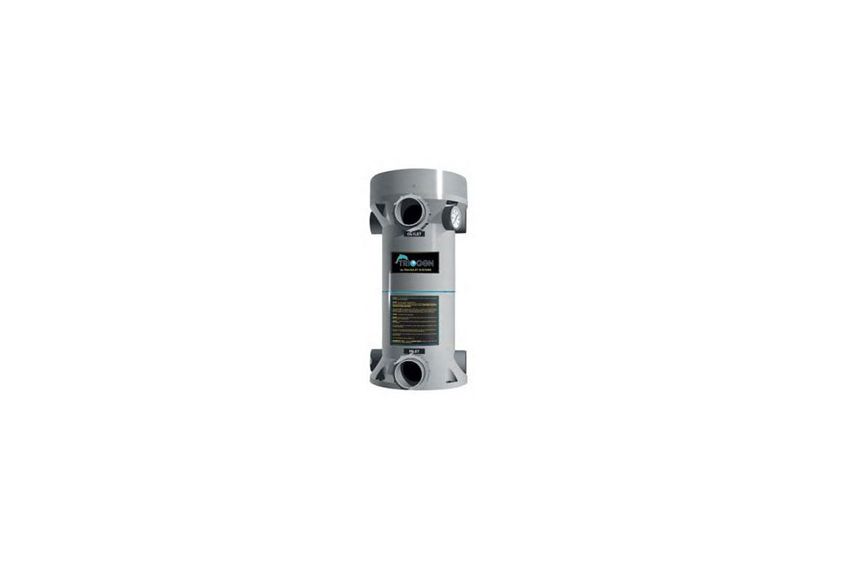

Triogen UV Ultra Disinfection Unit

Triogen UV Ultra Disinfection Unit
Grouped product items
Product Name SKU MPN Price Qty Stock
No options of this product are available.
Add to Wishlist

In-stock orders dispatched:14:00

The Triogen Ultra range of ultraviolet units is designed to provide residential swimming pools and spas, water features and ponds with a cost effective UV system for disinfection and improved water quality. The reactor bodies are manufactured from UV inhibited polymeric materials making them suitable for use with pools utilising salt water chlorinators or standard chemical dosing. The units simply connect to a suitably protected mains power supply and come complete with union adaptors, pressure gauge and flow-switch.

  • Designed to provide residential pools and spas with a cost effective UV system for disinfection and improved water quality.
  • One to three high output, low pressure UV lamps can be incorporated within the same unit.
  • Improves algae control.
  • Suitable for indoor and outdoor applications.
  • Long term compatibility with saltwater/salt chlorinator pools.
  • Low pressure UV system.
  • 13,000 hours operational lamp life.
  • 100% corrosion resistant UV inhibited polymeric reactor vessel.
  • Select-able inlet and outlet positions for easy installation.
  • Centre ring to view lamp operation.
  • Easy UV lamp replacement and thimble cleaning.
  • Automatic pre-set pressure switch.

Technical Information:

  Ultra-1 Ultra-2 Ultra-3
Number of lamps 1 2 3
Wattage 58 W 116 W 174 W
Flow rate (max) 11 m³/hr 22 m³/hr 32 m³/hr
Flow rate (min) 2.4 m³/hr 4.8 m³/hr 7.2 m³/hr
Supply voltage 230 V, 1ph, 50-60 Hz 230 V, 1 ph, 50-60 Hz 230 V, 1 ph, 50-60 Hz
Current 0.24 A 0.48 A 0.73 A
Empty weight 8.2kg 8.2kg 8.2kg
Operating weight 21.3kg 21.3kg 21.3kg
Shipping weight 11.3kg 11.3kg 11.3kg


Benefits:

  • Safely lower free chlorine residual with effective disinfection and including chlorine-resistant micro-organisms.
  • Reduction in skin, eye and respiratory irritation.
  • Improves algae control.
  • Suitable for indoor and outdoor applications.
  • Simple to install and operate with minimal plant room space required.
  • Long-term compatibility with saltwater/salt chlorinator pools.
  • Systems can be upgraded to treat additional flow capacity.
