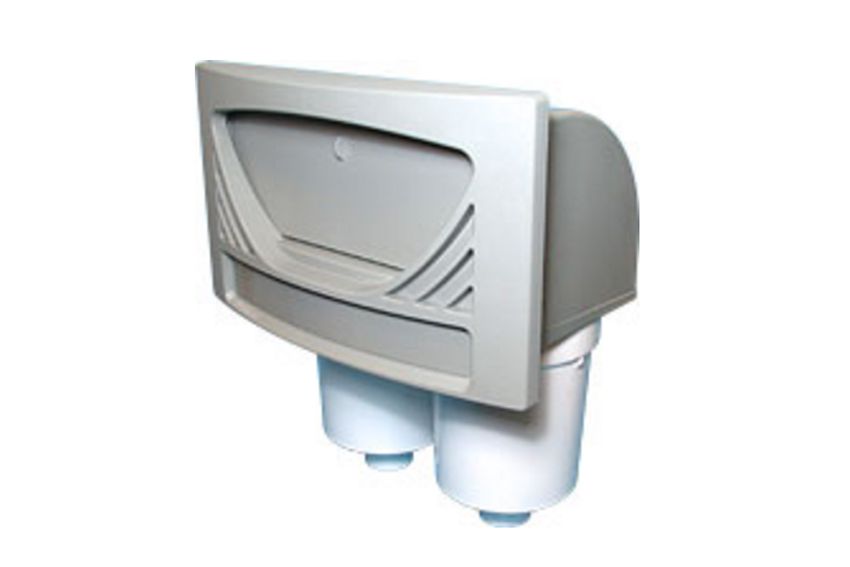

Waterway 100sq ft Front Access Skim Filter Assembly

This is Waterway's 100 square foot skim filtration assembly, it comes in a grey oval design and is easy to install. It has a dual port to accept 2 x 50sq ft PWW50 filter cartridges which are included in the package, only available in grey

• Overall Height: 500mm
• Overall Width: 460mm
• Overall Depth: 280mm (approx)
• Fits hole size: 380mm x 215mm

PWW50 Filter (SC714)

Waterway Skim Filter Bottom

The fixing area needs to be flat. In the majority of applications it is better to leave the top horizontal cut in the acrylic shell slightly higher (no more than 10mm) so that the housing can slip in from the front, always consult a professional as applications can vary.

After positioned in place you will need to pilot through the shell. Use plenty of silicone, a rear fixing template is included which the screws wind into.
