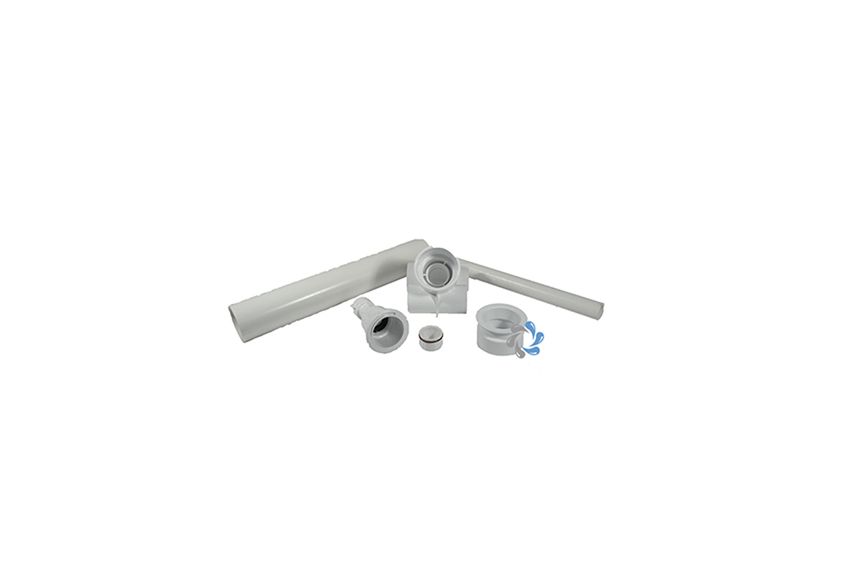

Waterway 3-3/8 - 4" Poly Storm Gunite Body Assemblies

Please take your time to read the attached "installation documents" in the Associated Documents

Gunite jets are ideal when undertaking a project to build a sprayed concrete hot tub.

Waterway Mini Storm Gunite Body Assemblies have 2 parts which are set apart using rigid pipe which can take into account varying wall thicknesses, both packs are not supplied with the wall pipes due to varying wall thicknesses, the

1" pipes can be bought here
2.5" can be bought here

Waterway Gunite assemblies accept any standard PUSH FIT Waterway Poly Storm jets

It is best to use Waterway Gunite shut off nozzles.

The straight style is usually seen on jet bodies on acrylic hot tubs, whilst the stacked jet body (AKA "H" or "Tee") usually seen on pool jets that have an air feed

Straight: 1″ SPG AIR X 1 1⁄ 2″ SPG WATER
Tee:1 1⁄ 2″ S AIR X 2″ S WATER

If you are pressure testing which is recommended you will find the caps here.

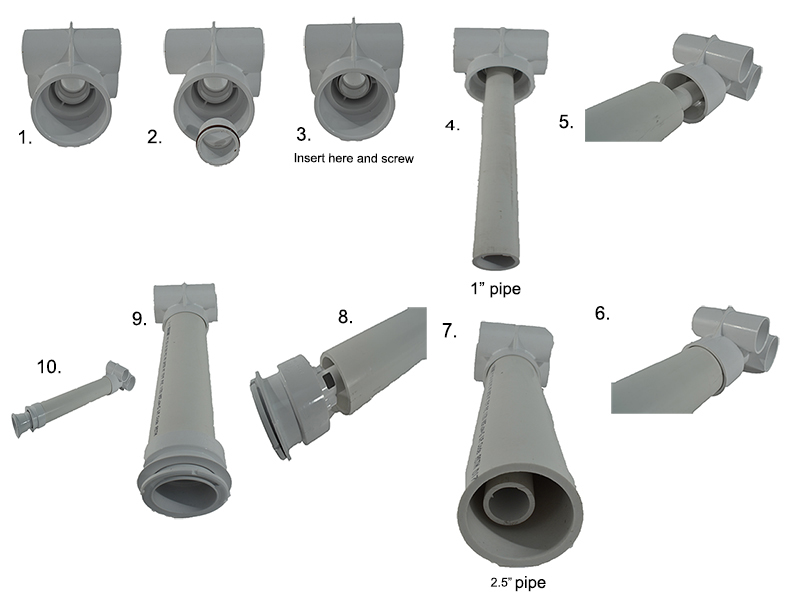

How to assemble Gunite jet bodies (for reference only consult the installation notes above):
