SKU
G455

Waterway Executive 56 Frame Wet Ends - 2.5 inch

A range of 56 Frame Waterway Executive Wet Ends with a 2.5 inch suction inlet.
Grouped product items
Product Name SKU MPN Price Qty Stock
Waterway Executive 56 Frame Wet Ends - 2.5 inch - 2 hp Waterway Executive 56 Frame Wet Ends - 2.5 inch - 2 hp 598 310-1480
£85.82 £71.52
- +
1 In stock
Waterway Executive 56 Frame Wet Ends - 2.5 inch - 3 hp Waterway Executive 56 Frame Wet Ends - 2.5 inch - 3 hp 599 310-1500
£80.90 £67.42
- +
3 In stock
Waterway Executive 56 Frame Wet Ends - 2.5 inch - 4 hp Waterway Executive 56 Frame Wet Ends - 2.5 inch - 4 hp 600 310-1440-SL
£104.39 £86.99
- +
16 In stock
Waterway Executive 56 Frame Wet Ends - 2.5 inch - 5 hp Waterway Executive 56 Frame Wet Ends - 2.5 inch - 5 hp 601 310-1510-SL
£93.13 £77.61
- +
7 In stock
Add to Wishlist

In-stock orders dispatched:14:00

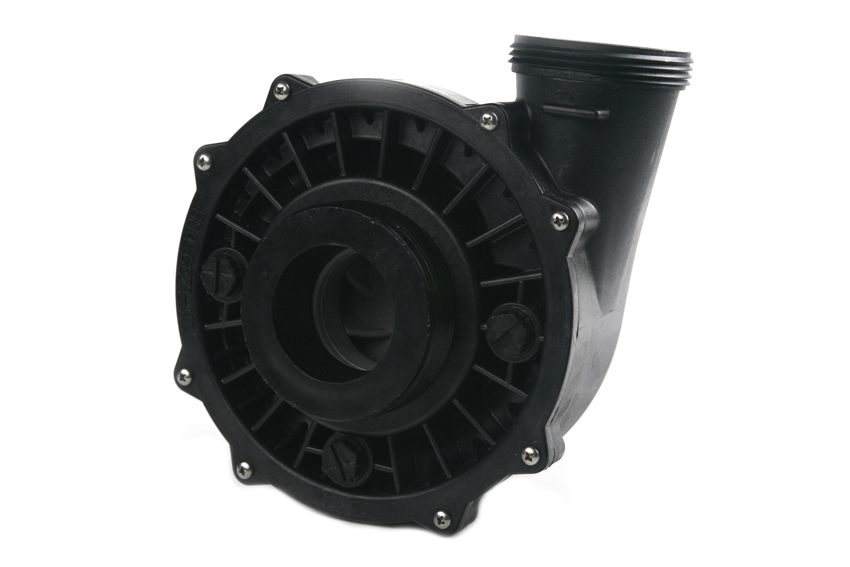

This is a Waterway 56 frame wet end with a 2.5" Suction inlet and a 2" discharge outlet.

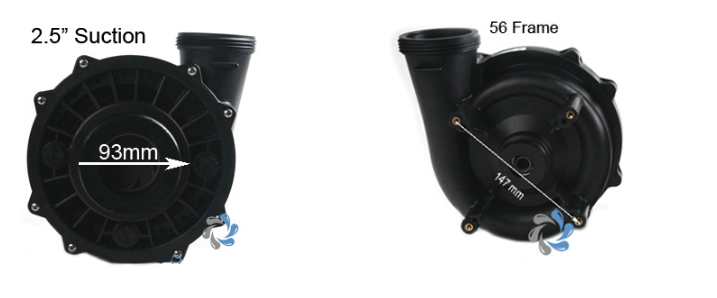

To ensure correct specification of the suction outlet, measure over the threads and look at the diagram above to ensure a match. Our tip is that 2.5" union connection sizes are just a hot tub industry term, the actual outside diameter of a pump connection is 93mm.

To ensure correct frame size, measure 147mm for a 56 frame wet end, then on the rear of the wet end, if you look closely you will see P/N 315-1220 as shown in the title pictures, this designates the front and rear volute (the plastic casing).

  • Height: 230mm
  • Width: 200mm (face diameter)
  • Depth: 145mm

Waterway hot tub pump

If you look very carefully (difficult to see) through the centre suction hole at your existing impellor centre (near off centre), you may see a 2hp or 3hp or 4hp or 5hp stamped into the ceramic impellor, these different impellor sizings can be selected through the drop-down box above.

If you can't find it don't worry, we will send you the factory standard for the UK - 4hp impellor all you will get is more umff in the water coming from the jets.

We have a complete list of spare parts available for the Waterway Executive 56 Frame Wet End

Internally factory fitted seal kit to fit 56 frame motors / fitted with 1 x drain /bleed screw

Please note: with effect from February 2021, the wetends will only be manufactured with 1 x drain /bleed screw at the base of the faceplate. The images above may differ to the wetend received.

Icon Label Type Size Download
pdf 2021 Update to Wetend Design pdf 601.7 KB Download
