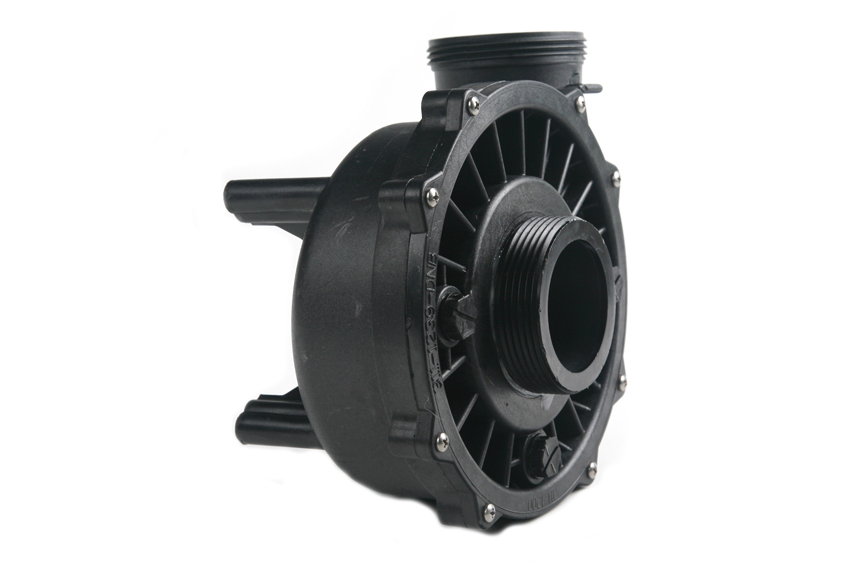

This is a Waterway 56 frame wet end with a 2" Suction inlet and a 2" discharge outlet.
Identification

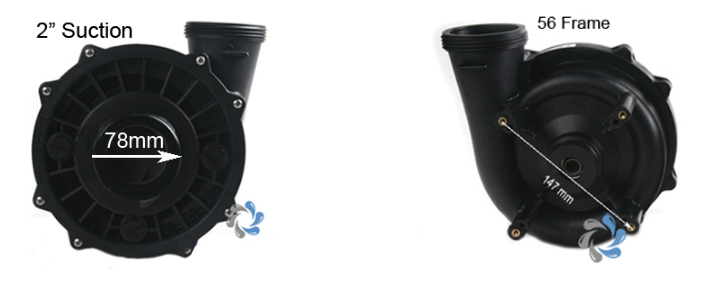

To ensure correct specification of the suction outlet, measure over the threads and look at the diagram above to ensure a match. Our tip is that 2.0" union connection sizes are just a hot tub industry term, the actual outside diameter of a pump connection is 78mm.
To ensure correct frame size, measure 147mm for a 56 frame wet end, then on the rear of the wet end, if you look closely you will see P/N 315-1220 as shown in the title pictures, this designates the front and rear volute (the plastic casing).
If you look very carefully (difficult to see) through the centre suction hole at your existing impellor centre (near off centre), you may see a 2hp or 3hp or 4hp or 5hp stamped into the ceramic impellor, these different impellor sizings can be selected through the drop down box above.
To be sure of the correct impellor, check the wetend for a sticker with the wetend code and refer to the table above to identify the correct HP required. Do not go by the sticker with the HP rating if you find one on the wetend as this does not actually refer to the HP of the wetend.
We have a complete list of spare parts available for the Waterway Executive 56 Frame Pumps
Internally factory fitted seal kit to fit 56 frame motors / fitted with 1 x drain /bleed screw
Please note: With effect from February 2021, the wetends will only be manufactured with 1 x drain /bleed screw at the base of the faceplate. The images above may differ to the wetend received.
Starting at £8.40 £7.00
