Waterway Executive Impellors

Waterway's complete selection of Executive Impellors rated at either 2 / 3 / 4 & 5HP. These are supplied without seals & wears rings.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Waterway Executive Impellors - 2 hp	Waterway Executive Impellors - 2 hp	555	310-4210	£22.87 £19.06	- +	2 In stock
Waterway Executive Impellors - 3 hp	Waterway Executive Impellors - 3 hp	556	310-4200	£22.87 £19.06	- +	1 In stock
Waterway Executive Impellors - 4 hp	Waterway Executive Impellors - 4 hp	557	310-4190	£22.87 £19.06	- +	3 In stock
Waterway Executive Impellors - 5 hp	Waterway Executive Impellors - 5 hp	558	310-4180	£22.87 £19.06	- +	Available for Back Order
Waterway Executive Impellors (3 HP specifcally for a 3HP Motor)	Waterway Executive Impellors (3 HP specifcally for a 3HP Motor)	43779	310-2440	£25.90 £21.58	- +	Available for Back Order
Waterway Executive Impellors (14HP European Impellor)	Waterway Executive Impellors (14HP European Impellor)	43796	310-1980	£25.57 £21.31	- +	1 In stock

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

We offer the complete selection of Waterway Executive Impellers - rated at 2 / 3 / 4 & 5HP.

Your existing impeller should be replaced with the same horse power equivalent, to correctly specify the impellor, carefully look for the HP rating in the middle of the impellor (stamped, slightly offset - look closely, it is difficult to see).

We always recommend when replacing the impeller you also replace the Waterway Seal

When you order your impellor make sure you have the correct Waterway Wear Rings (sits directly on top of the impellor)

Ideal For

All 48 & 56 frame Waterway wet ends with the embossed number 315-1220 or 315-1260 between the legs at the back of the wet end.

Additional Info

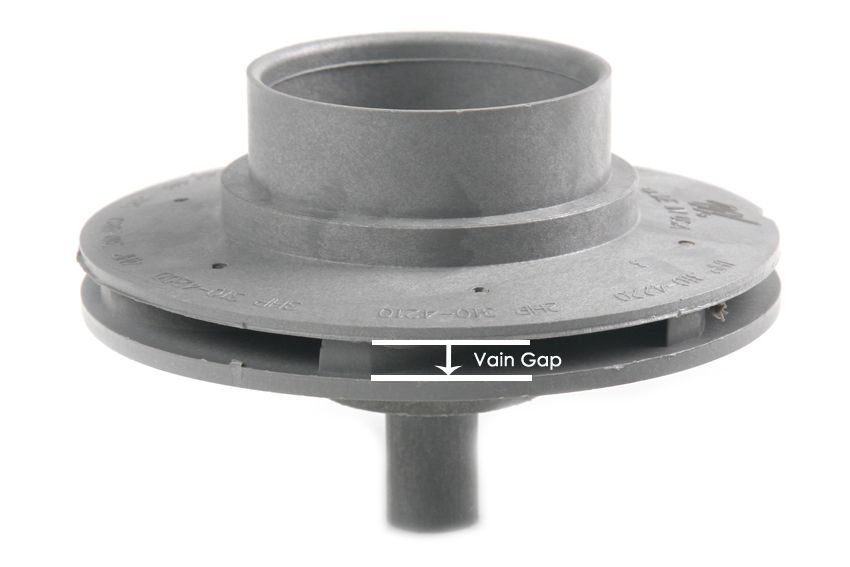

As a guide to help you if you cannot locate the horsepower please look at the below:

2hp Executive impellor diameter: 116mm / vane gap: 8mm (older versions may differ in measurements. diameter: 121mm / vane gap: 5mm)
3hp Executive impellor diameter:107mm / vane gap: 11.5mm (older versions may differ in measurements. diameter: 118mm / vane gap: 9mm)
4hp Executive impellor diameter:107mm / vane gap: 15mm (older versions may differ in measurements. diameter:116mm / vane gap: 13mm)
5hp Executive impellor diameter: 117mm / vane gap: 15mm (older versions may differ in measurements. diameter:116mm / vane gap: 16mm)
3hp European impellor diameter: 117mm / vane gap: 11mm (Red Dot)

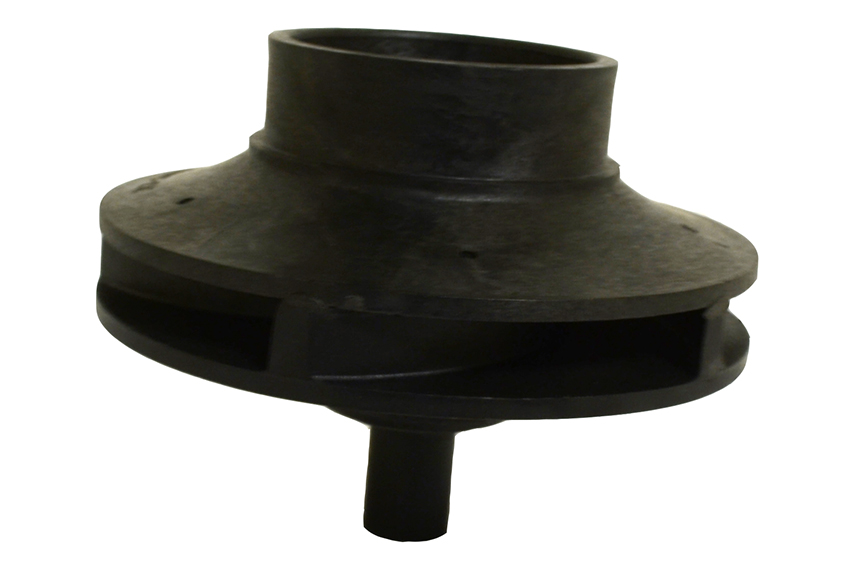

14hp European impellor diameter: 112mm / vane gap: 6mm (Yellow Dot)

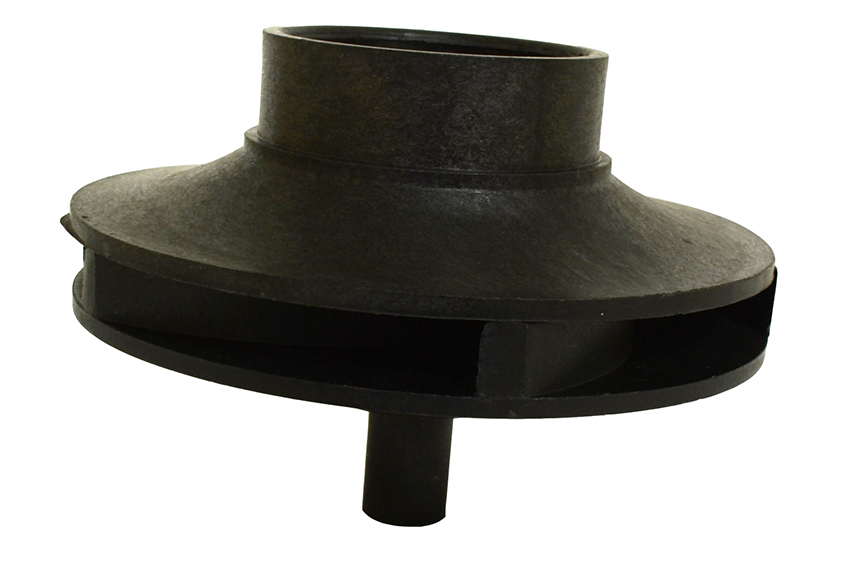

The 310-2440 (sku 43779) impellor is specifically designed to fit a 3HP Waterway Executive motor. It should not be fitted to any motor lower than a 3HP rating. If you are unsure of your motor HP rating, please check the amp draw on the motor specification plate. It will show AMP's of approximately 12.3 on the high speed. The impellor may be marked with a Red or Black Dot.

Do not confuse the HP of the motor with the HP of the impellor as these are two completely different things.

Another point to be aware of is that sometimes you may find an HP sticker on the wetend. Do not assume this is the HP of the impellor. Always check the actual impellor prior to ordering. Fitting a wrong impellor can cause damage to the motor.
