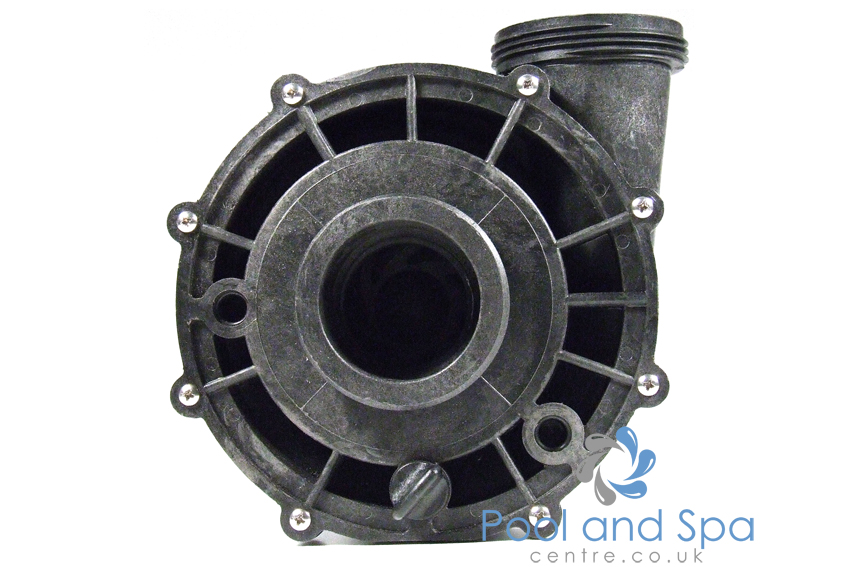

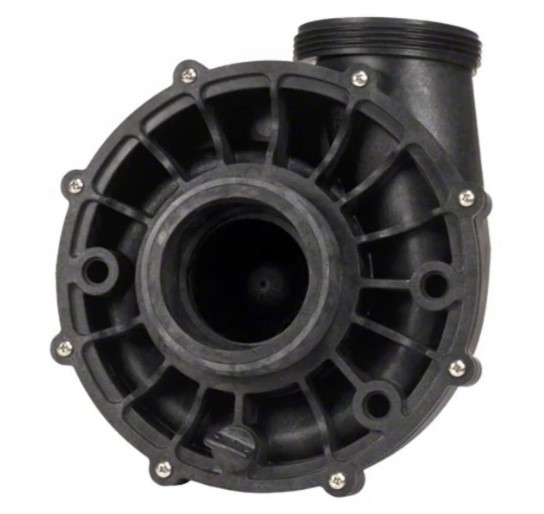

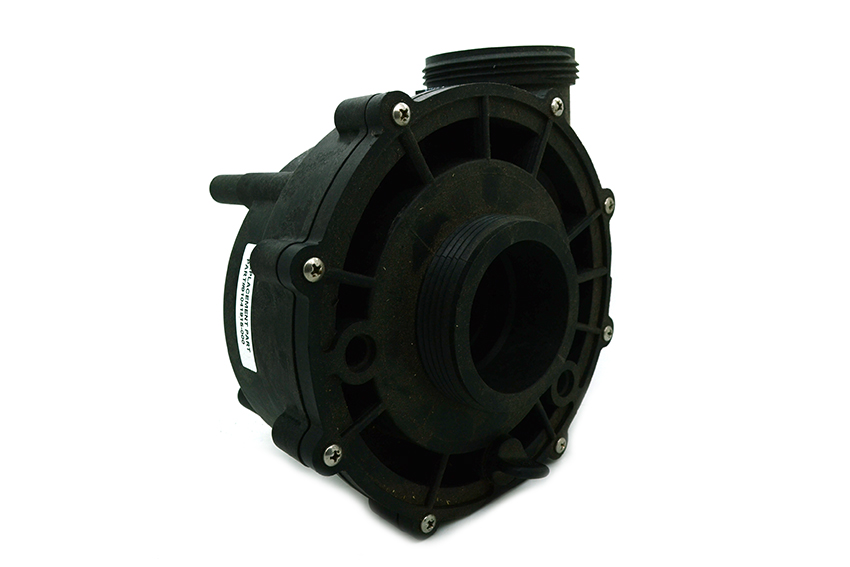

All Aquaflo XP2 & XP2e wetends have what is known as a 2" suction inlet and a 2" Discharge outlet. The actual measurement over the threads of the inlet and outlet is approx 78 mm.
Aqua-Flo FMXP3 Wet End has 2 x 2.5" connections so the outside diameter of the threads is 93mm. 48/56Y Frame and 4HP impeller.
To get the correct hot tub Aquaflo wet end, you need to find the below part numbers to identify the correct specification of wet end, therefore power output, this will mean taking your pump out and removing the wet end.
You can see how to do this in our Hot Tub Pump Installation & Wet End Rotation guide

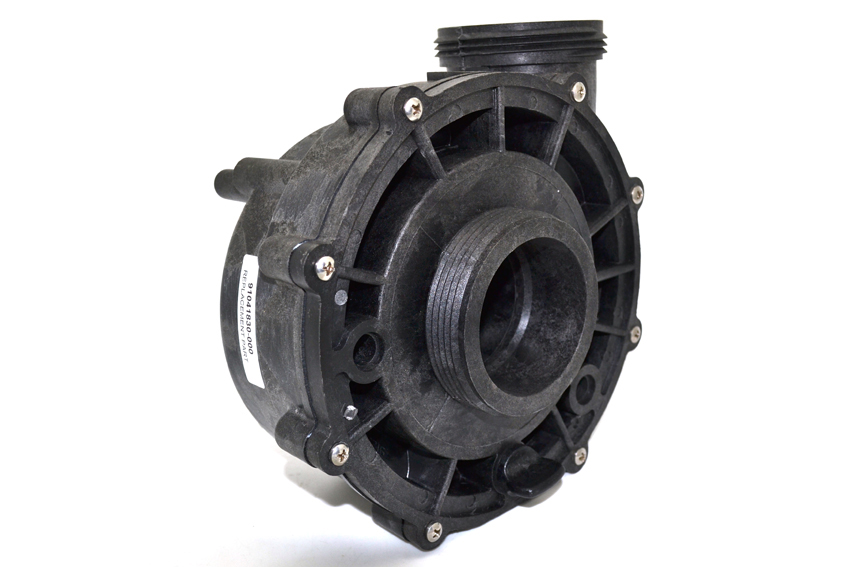

It's easy to identify your type of wet end, in this photo, you can see how to find the volute numbers and the dimensions to specify whether it is a 48 / 6.1 or 6.3 type, find that number and then below find the table that applies to it.
Height: 285 mmWidth: 185 mm (face diameter)Depth: 140mm
Over the years the impellors have discontinued and have interchanged making a myriad of options, therefore to simplify the process we have put the wet end in size and power order - just make sure you get the correct volute and you can't go wrong
Wet End Volute 92770705
48 Frame - 92mm across legs
*Please note 91041610-000 has been replaced by 91041820.
Wet End Volute 92770715
6.1 Mount - 102mm across legs
Wet End Volute 92770725
6.3 Mount - 104mm across legs
Impellor Vein Gaps:
91694150 - 8mm91694200 - 6.5mm91694251 - 9mm91694300 - 11mm91694400 - 12mm91695317 - 12.5mm91695200 - 11mm91695250 - 11mm91695500 - 15mm91695401 - 17mm
Please see Hot Tub Pump Identification if you need any more help specifying your wetend, if you can't find the numbers or have different numbers please get in contact with us
The wet end comes complete and has an original internally factory fitted seal kit.
Please note that sku 3526 comes with a 2hp impellor.
We also have a XP2 exploded diagram showing the spare parts availableWe also have a XP2e exploded diagram showing the spare parts available
