Aqua-flo XP2 / XP2e Pump Range

The Aqua-Flo range of XP2 and XP2e pumps provide greater flow rates than previous XP2 models while improving the overall spa energy efficiency.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
XP2e 1.5hp - two speed	XP2e 1.5hp - two speed	1303	05320024-8040	£359.52 £299.60	- +	2 In stock
XP2 2hp - single speed	XP2 2hp - single speed	1304	07030003-6040	£294.61 £245.51	- +	9 In stock
XP2e - 2hp - two speed	XP2e - 2hp - two speed	1305	05340014-8040	£359.30 £299.42	- +	3 In stock
XP2 - 2.5hp - single speed	XP2 - 2.5hp - single speed	1306	07044000-6040	£325.09 £270.91	- +	8 In stock
Maelstrom MS-1 - 2.5hp - two speed	Maelstrom MS-1 - 2.5hp - two speed	1307	0800-290001	£349.87 £291.56	- +	5 In stock
XP2e - 3hp - single speed	XP2e - 3hp - single speed	1308	05253000-6040	£275.74 £229.78	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

As the UK's leading distributor of Gecko pumps, we are proud to offer a comprehensive range of high-performance, energy-efficient models to meet the diverse needs of our customers. This includes the popular XP2 and XP2e lines, as well as the newly launched Maelstrom Aqua-Flo series - all of which uphold the exceptional quality, efficiency, and performance standards that have long defined the Gecko brand.

What sets these cutting-edge pumps apart is their unparalleled energy consciousness, which allows them to deliver the same - if not greater - flow rates as previous iterations, while dramatically improving the overall energy efficiency of the spa or hot tub. This translates to tangible cost savings for consumers.

Not sure which pump you need?

Below is a breakdown of what to check. First will be AMPs and RPMs.

If there is only one rating then it will be a single speed, if there is two, you guessed it ... two speed.
AMP ratings will typically be 5 – 7 amps = 1.5 (HP), 7–9 amps = 2.0 (HP), 9–11 amps = 2.5 (HP), 11–12 amps = 3.0(HP) & 14–15 amps = 4.0 (HP)
RPM rating will normally be 1450 for low speed and 2900 for high speed.

Next, check the outside diameter's of the threads for your pipe connections.

Most wet ends can be rotated to 3, 9 and 12 o'clock so no need to worry about that.

It is worth checking overall dimensions of the pump before ordering to ensure you have enough space for the new pump.

Now you have all the information to look through our Jet Pump Range!

We do offer a cheaper alternative if you are interested?

SKU	Description	RWA™ Alternative
1304	XP2 2hp - single speed	RWA™ 2HP Single Speed
1306	XP2 2.5hp - single speed	RWA™ 2.5HP Single Speed
1308	XP2e 3hp - single speed	RWA™ 3HP Single Speed

Features

True, continuous rated horsepower of 1.5, 2.0, 2.5, and 3.0 HP
2" inlets and outlets
Single & dual speeds
50 Hz
Uses more jets per pump / Eliminates diverter valve in certain applications

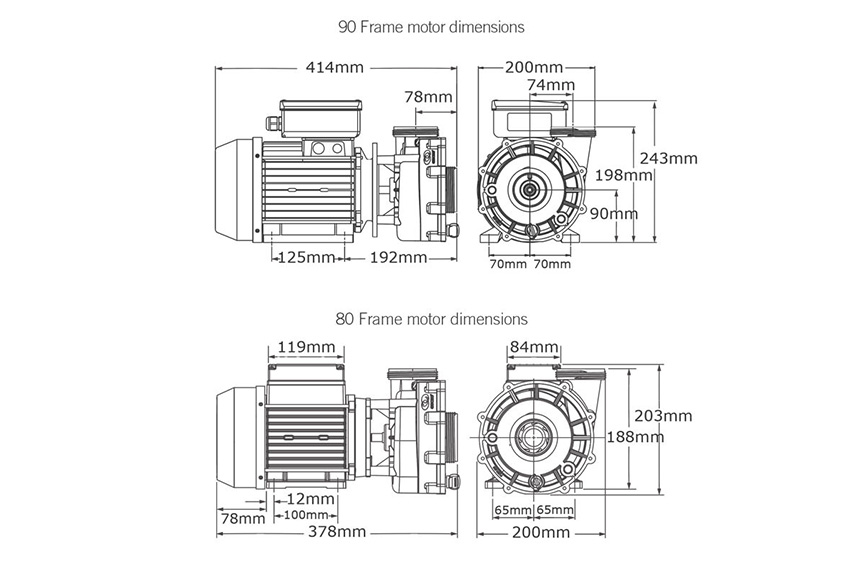

Dimensions

Specifications

Part Number	Speed	kW	HP	Frame	High Amps	Low Amps	Hi-Flow (l/min)
05253000-6040	1	2.4	3.0	80	10.3	-	680
0800-290001	2	2.3	2.5	90	9.5	2.9	475
07044000-6040	1	1.8	2.5	80	7.8	-	370
05340014-8040	2	1.8	2.0	90	7.9	1.6	380
07030003-6040	1	1.5	2.0	80	6.7	-	330
05320024-8040	2	1.4	1.5	90	6	1.2	300

Part number 0800-290001 is an ideal substitute for pump part number 05351009-6040, which is no longer available.

Ideal For

A huge variety of spas where a 2" x 2" inlet outlet replacement is required, directly replaces Waterway pumps.

To give you some help the below are the more common pump replacement codes - always check the specification nethertheless

1.5hp 2-Speed

05015001-2040 , 05015005-1000 , 05015081-2300 , 05015081-2340 , 05015558-1340 , 05015684-2300 , 05015959-1340 , 05015964-1301 , 05015964-1340 , 05115001-2300 , 05115001-2340 , 05115003-2340 , 05115006-2300 , 05115006-2340 , 05115459-2040 , 05115459-2300 , 05115761-2000 , 05115761-2040 , 05115792-2370 , 05115894-2300 , 05215001-7340 , 05515000-2300 , 05515000-2340 , 05515558-2340 , 05515661-1300 , 05515684-2340 , 05515880-1300 , 05615001-2300 , 05615001-2340 , 05615002-2340 , 05615006-2340 , 05615459-2300 , 05618000-2340 , 05818000-7340 , 06115517-2040 , 5121-315 , 974001 , DJAYFB-0001

2hp 2-Speed

06620876-1 06120453-2 06620321-2 06120812-1 06620768-2 06620786-2 06620399-2 06620342-2 06620003-2 06620489-2 06620390-2 06620345-1 06620768-2 06120681 06620608-1 06120070-1 06620311-2 06615978-2 06120 06620 T55CXBRF 06620764-1 06620489-2 06120500-2 06120000-1040 06620776-2 06620339-1 06120007-2 06620509-2 06620768-2 06620390-2 06620168-1 06620776-1 06620000-1 06120181-1 1-00-0144A 06620500-2 06120500-2040 06620031-1 06620485-2 06620454-2 06620831-1 06620514-2 06620001-2 06620608-1 06620342-2 06620776-2 06120608 06620459-2 06620788-2 07323001-2

Additional Info

Pumps supplied with unions.

No cable supplied you will need to retain your existing cable.

Part number 0800-290001 comes with a 2,4 m cable with AMP plug

You may receive a motor with either a black or a blue wetend.
