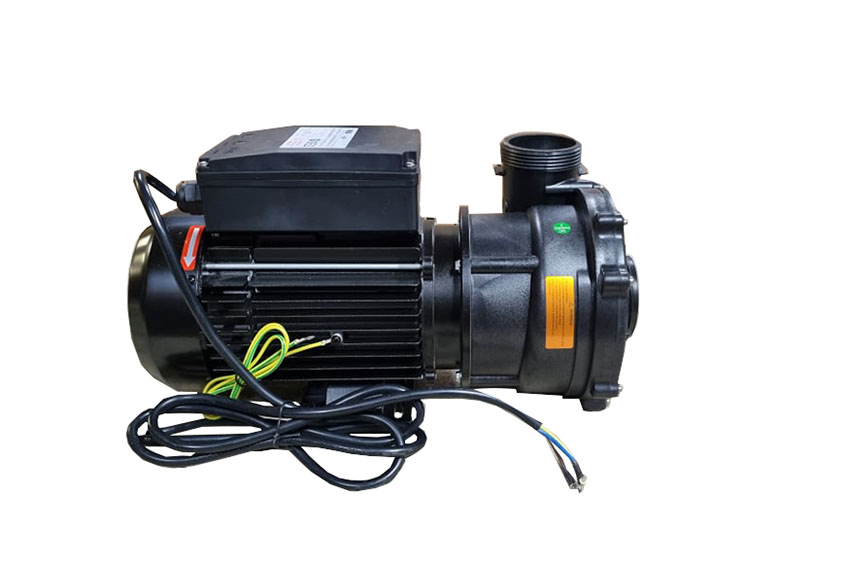

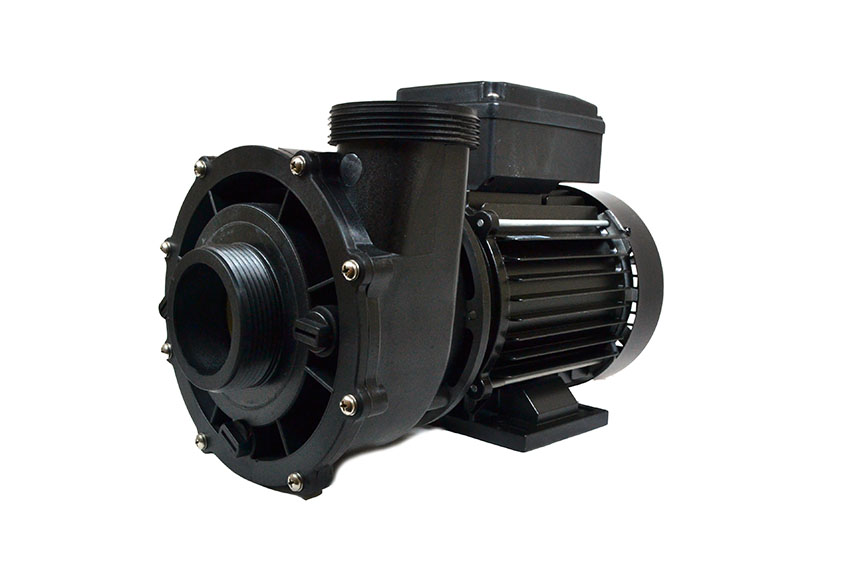

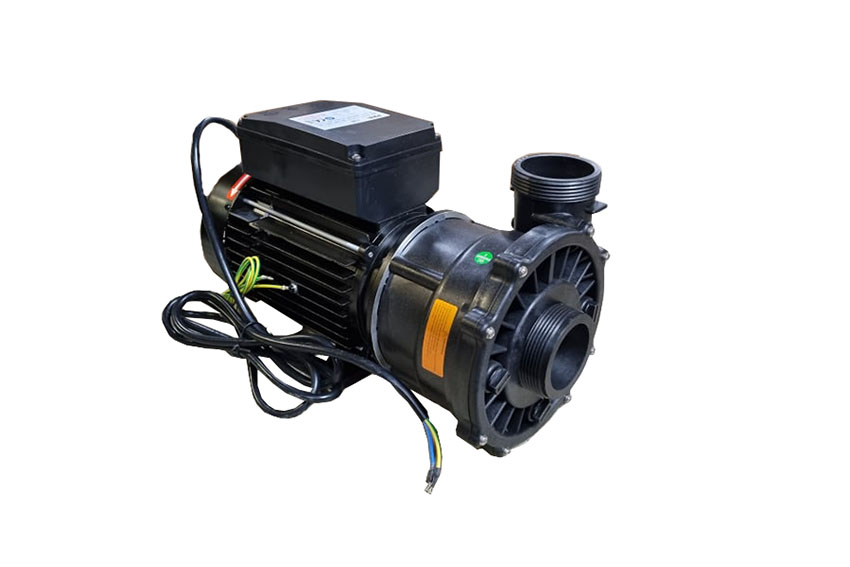

DXD Jet Pump Range

• If there is only one rating then it will be a single speed, if there is two, you guessed it ... two speed.
• AMP ratings will typically be 5 – 7 amps = 1.5 (HP), 7–9 amps = 2.0 (HP), 9–11 amps = 2.5 (HP), 11–12 amps = 3.0(HP) & 14–15 amps = 4.0 (HP)
• RPM rating will normally be 1450 for low speed and 2900 for high speed.

Most wet ends can be rotated to 3, 9 and 12 o'clock so no need to worry about that.

It is worth checking overall dimensions of the pump before ordering to ensure you have enough space for the new pump.

Now you have all the information to look through our Jet Pump Range!

*2.5" Waterway pumps can be replaced with the DXD range using the Wet End Suction Thread Adapter - 2.00" to 2.50"

IMPORTANT NOTE: Older (Pre 2008) LP & WP pumps and wet ends are manufactured with a shorter section (approx. 15mm) and discharge port (approx. 30mm). You may find on some hot tubs with very rigid plumbing that the newer versions will not line up with the pipework. The wet end faceplate moulding is different and they are also "open" on the rear of the wet end casing as opposed to the pre 08 wet ends which are encased. SEE IMAGES FOR REFERENCE.

If you are replacing a pre '08 version (the wet end is labelled B351-03) we find that the Waterway Executive equivalent tends to have a better fit.
