G957

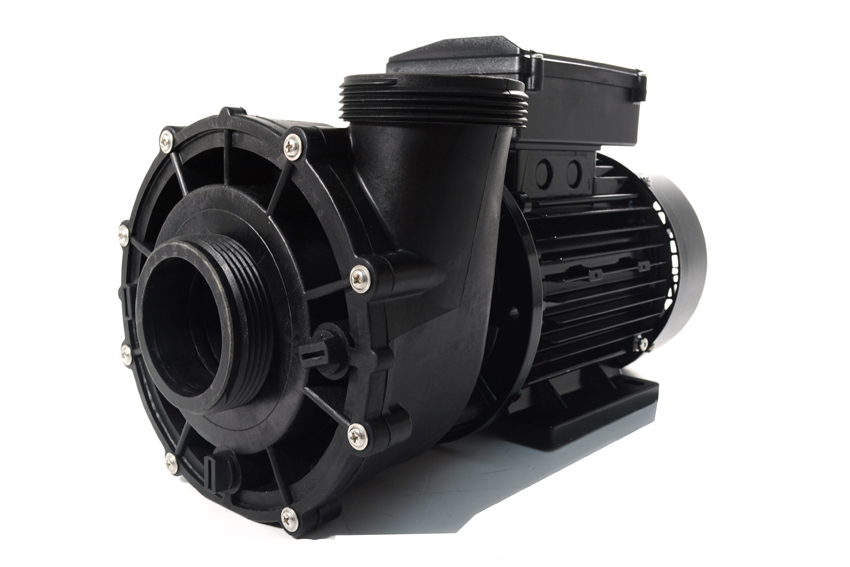

LX LP/WP Pump Series- 2” x 2” wetend

The new LX range of single and dual speed jet boost pumps are used in JACUZZI® and SUNDANCE® SPAS spas, known as LP and WP range
Grouped product items
Product Name SKU MPN Price Qty Stock
LP200 (2hp) - single speed LP200 (2hp) - single speed 1298 LP200
£216.31 £180.26
- +
Available for
Back Order

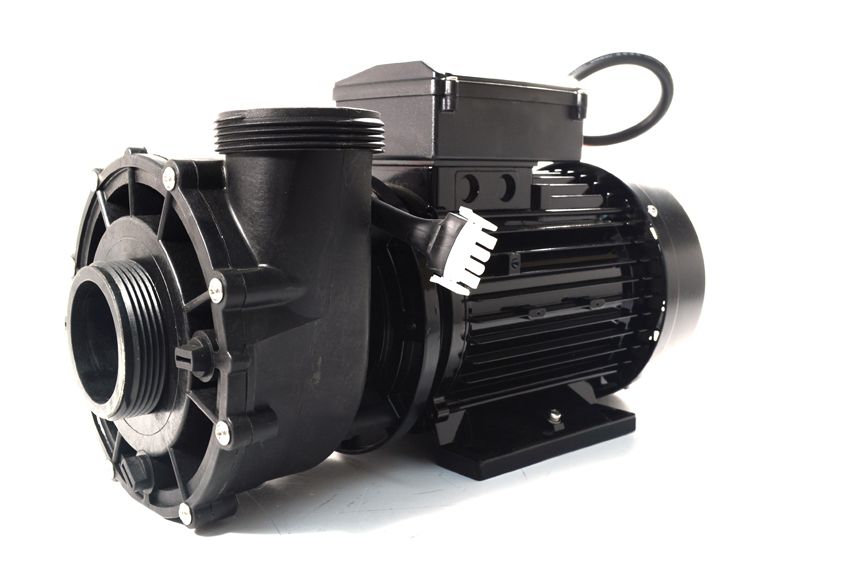

WP200 (2hp) - two speed WP200 (2hp) - two speed 1299 WP200-II
£243.23 £202.69
- +
Available for
Back Order

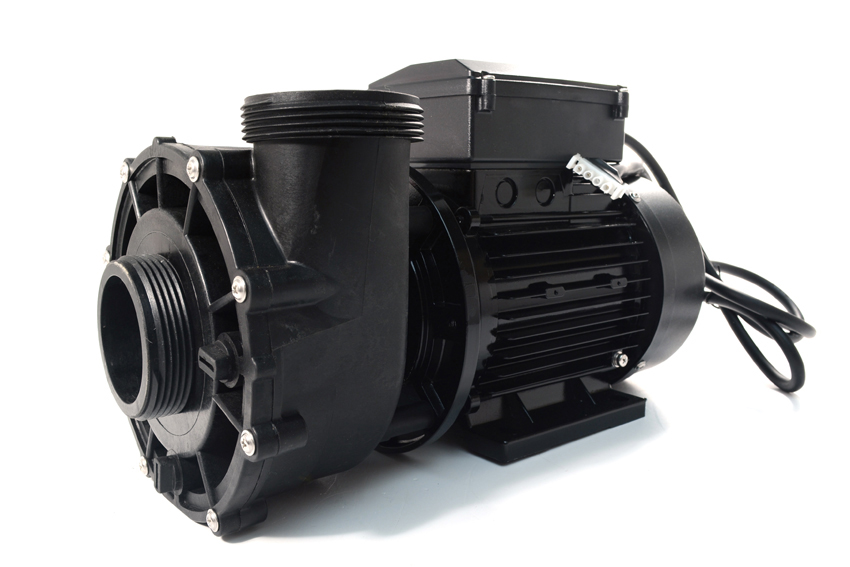

LP250 (2.5hp) - single speed LP250 (2.5hp) - single speed 1300 LP250
£189.98 £158.32
- +
8 In stock

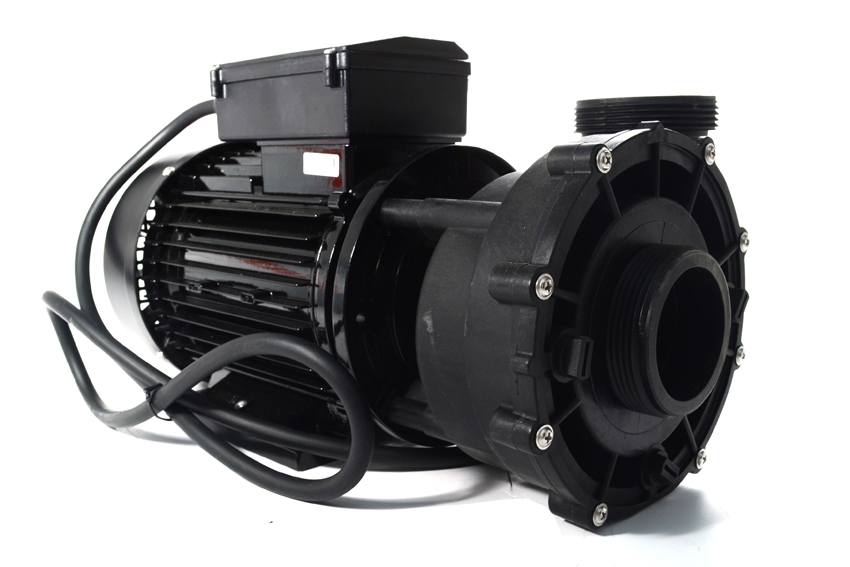

WP250 (2.5hp) - two speed WP250 (2.5hp) - two speed 4310 WP250-II
£295.03 £245.86
- +
Available for
Back Order

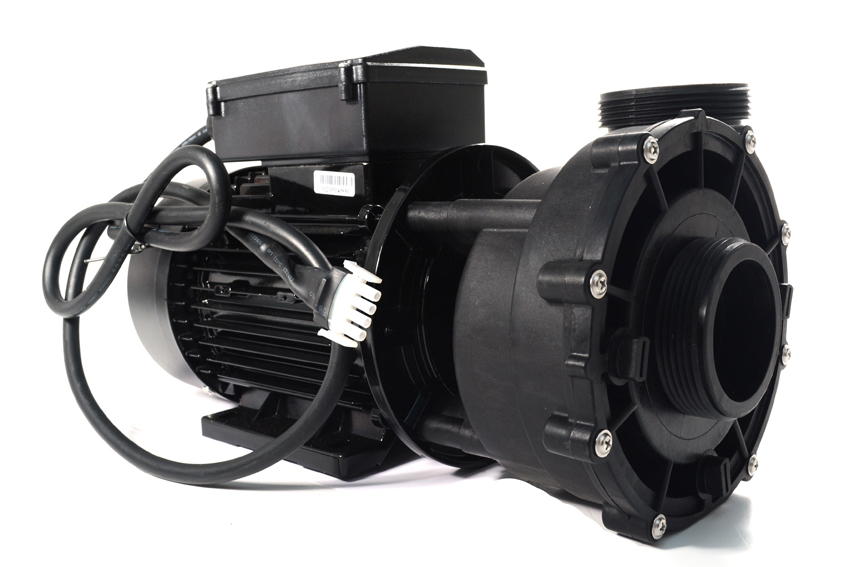

LP300 (3hp) - single speed LP300 (3hp) - single speed 4311 LP300
£266.59 £222.16
- +
Available for
Back Order

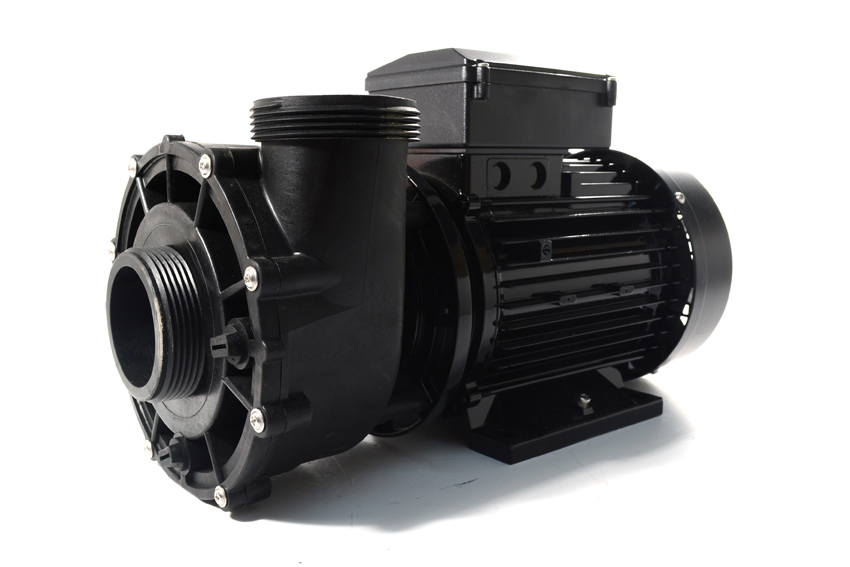

WP300 (3hp) - two speed WP300 (3hp) - two speed 4312 WP300-II
£280.99 £234.16
- +
Available for
Back Order

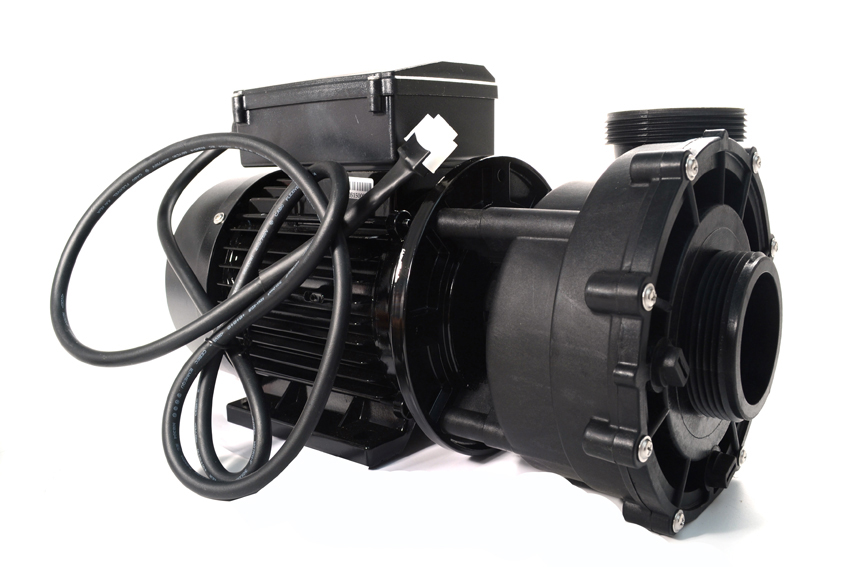

LP150 (1.5hp) - single speed LP150 (1.5hp) - single speed 18818 LP150
£155.00 £129.17
- +
6 In stock

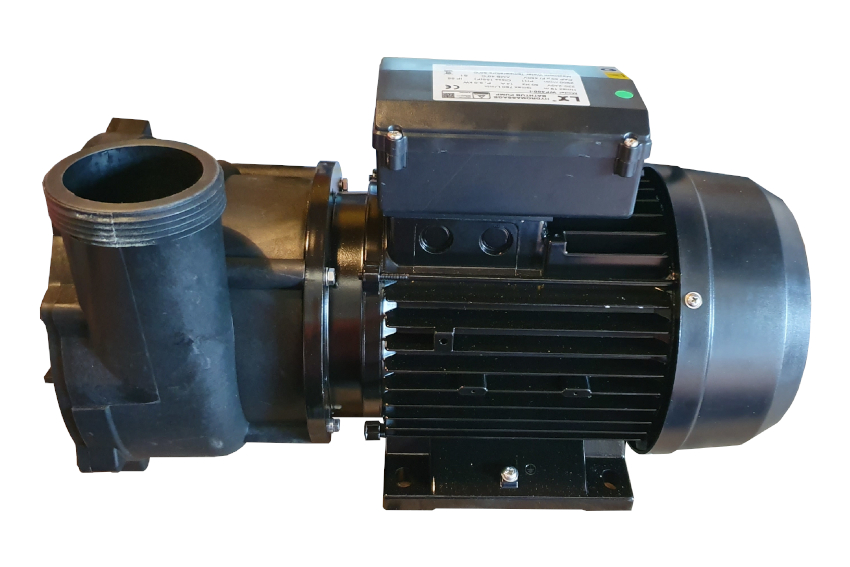

WP400-I (4.0HP) - Single Speed WP400-I (4.0HP) - Single Speed 36964 WP400-I
£259.93 £216.61
- +
Available for
Back Order
WP500-II (5.0HP) - two speed WP500-II (5.0HP) - two speed 36965 WP500-II
£360.74 £300.62
- +
12 In stock
Add to Wishlist

In-stock orders dispatched:14:00

As a UK main stockist of the  LX range, these 56 frame speed pumps come complete with either a 3 or 4-core plain cable. They carry a 12-month warranty from the date of purchase and are completely interchangeable with certain Waterway and Aquaflo pumps

Look in the "Can be used with" Tab to match up your specification as these pumps are the direct replacements for JACUZZI® & SUNDANCE® SPAS pumps



Looking for a cheaper alternative?

SKU Description RWA™ Alternative
1298 LP200 (2hp) - single speed RWA™ 2HP Single Speed
1300 LP250 (2.5hp) - single speed RWA™ 2.5HP Single Speed
4311 LP300 (3hp) - single speed RWA™ 3HP Single Speed

LP200, LP250, LP300:

Length: 400mm
Width: 205mm
Height: 220mm

WP200, WP250, WP300:

Length: 435mm
Width: 200mm
Height: 235mm

WP400

Length: 415mm
Width: 202mm
Height: 197mm

WP500

Length: 458mm
Depth: 209mm
Height: 261mm

Single Speed:

LP150 - single speed LP200 - single speed LP250 - single speed LP300 - single speed WP400-I - single speed
Amps: 5.8 Amps: 7 Amps: 8 Amps: 10 Amps: 12
Volts: 230 Volts: 230 Volts: 230 Volts: 230 Volts: 230
Hz: 50 Hz: 50 Hz: 50 Hz: 50 Hz: 50
RPM: 2900 RPM: 2900 RPM: 2900 RPM: 2900 RPM: 2900
Motor KW: 1.1 HP: 1.5  Motor KW: 1.5 HP: 2  Motor KW: 1.85  HP: 2.5 Motor KW: 2.2  HP: 3.14 Motor KW: 3 HP: 4
Capacitor: 20uf Capacitor: 30uf Capacitor: 40uf Capacitor: 50uf Capacitor:40uf
Fittings: 2 inch Fittings: 2 inch Fittings: 2 inch Fittings: 2 inch Fittings: 63 mm



Two Speed:

WP200 - Two speed WP250 - Two speed WP300 - Two speed WP500-II - Two speed
Amps: High 7 / Low 2 Amps: High 9 / Low 2.5 Amps: High 10 / Low 3 Amps Low / High Speed: 4.5 / 15.0
Volts: 230 Volts: 230 Volts: 230 Volts: 230
Hz: 50 Hz: 50 Hz: 50 Hz: 50
RPM: 2900 / 1425 RPM: 2900 / 1425 RPM: 2900 / 1425 RPM Low / High: 2900/1450
Motor KW: 1.5 HP: 2  Motor KW: 1.85  HP: 2.5 Motor KW: 2.2  HP: 3.14 Motor Hp Low / High: 5 HP / 1 HP
Capacitor: 30uf Capacitor: 40uf Capacitor: 50uf Capacitor:50uf
Fittings: 2 inch Fittings: 2 inch Fittings: 2 inch Fittings: 2.5 inch

This LX Jet pump range can be used as replacements for the following Hot Spring Wavemaster pump codes.

LX Hot Springs Wavemaster
LP200 71838, 37066-03
WP200 74718, 0965901-03, 37066
LP250 71972, 73028
WP250 73028, 0982801-03
LP300 0977601-03

These pumps are direct replacements for both SUNDANCE® & JACUZZI® SPAS pumps, please ready the below information to ensure the perfect fit

SUNDANCE® SPAS

These pumps replace the Thermax pump, you may also need to replace the drain valve found here LX Drain Plug.

SUNDANCE® SPAS Ref:



6500-117
6500-123
6500-124
6500-239
6500-240
6500-294
6500-291
6500-299
6500-319
6500-700
6500-791
6500-899
Manufactuer Ref LP200 - single speed WP200-II - Two speed
Amps: 7 2.4 (low) 7.0 amp (high)
Volts: 230 230
Hz: 50 50
RPM: 2900 2900 / 1425
Motor KW: 1.5 0.35kw (low) 1.5 kw(high)
Motor HP: 2 0.26hp (low) 1.125hp (high)
Capacitor:  30uf 30uf
Fittings: 2 inch 2 inch

Firstly - look along the row and find the pump that need replacing checking HP and speed, check the spa is within the year shown, then view the wet end that corresponds to it, the configuration is the final check, it should match exactly your existing pump.

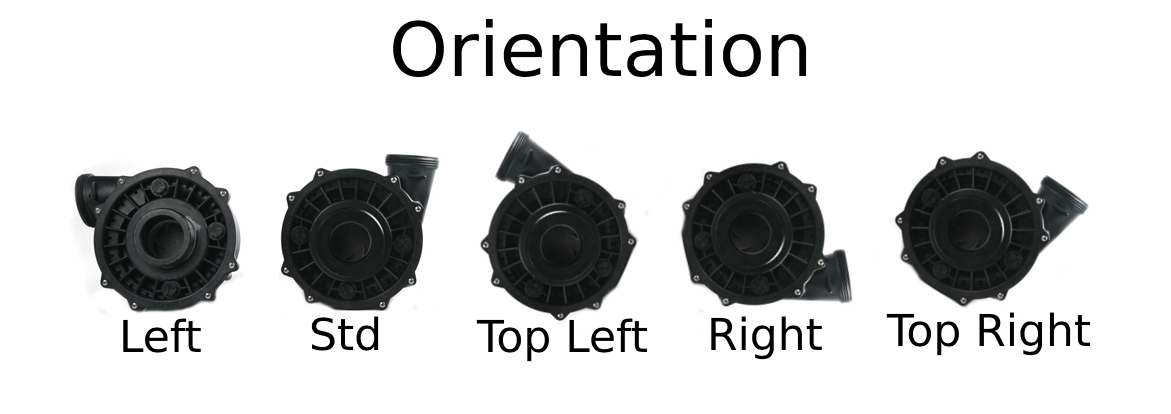

Be aware our wet end are sent out in standard position you can rotate them to whatever position you want in a matter of minutes.

Once you have located the ref: number then the following pump is required:

SINGLE SPEED - 6500-117 / 6500-123 / 6500-124 / 6500-239 / 6500-240 / 6500-294

TWIN SPEED - 6500-291 / 6500-299 / 6500-319 / 6500-700 / 6500-791 / 6500-899

Please note - part numbers changes - 6500-299 to 6500-899, 6500-291 to 6500-791, 6500-300 to 6500-700

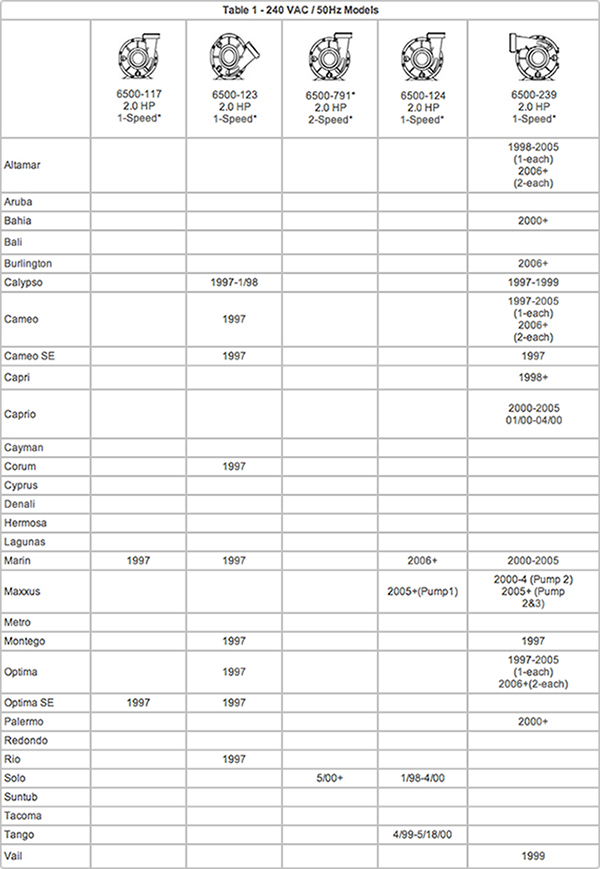

Table 1

Table 2


IMPORTANT NOTE: 2008 LP & WP pumps and wet ends are manufactured with a shorter suction (approx. 15mm) and discharge port (approx. 30mm). You may find on some hot tubs with very rigid plumbing that the newer versions will not line up with pipework. The wet end faceplate moulding is different and they are also "open" on the rear of the wet end casing as opposed to the pre 08 wet ends which are encased. SEE IMAGES FOR REFERENCE.


JACUZZI® SPAS

Firstly - look along the row and find the pump that need replacing checking HP and speed, check the spa is within the year shown, then view the wet end that corresponds to it, the configuration is the final check, it should match exactly your existing pump.

Once you have located the ref number then the following pump is required:

For ref number:

6500-291 / 6500-299 / 6500-319 / 6500-899 pick WP200 (2hp) - Two speed from the drop down box

6500-124 / 6500-239 / 6500-240 / 6500-294 pick LP200 (2hp) - Single speed from the drop down box

Be aware our wet end are sent out in standard position you can rotate them to whatever position you want in a matter of minutes.

* Part # 6500-899 was used as a temporary replacement for 6500-299.

Specifications



Table 1

JACUZZI® SPAS Ref: 6500-124 / 6500-239 / 6500-240 / 6500-294 6500-291 / 6500-299 / 6500-319 / 6500-899
Manufacturer Ref LP200 - single speed WP200-II - Two speed
Amps: 7 2.4 (low) 7.0 amp (high)
Volts: 230 230
Hz: 50 50
RPM: 2900 2900 / 1425
Motor KW:  1.5 0.35kw (low) 1.5 kw(high)
Motor HP: 2 0.26hp (low) 1.125hp (high)
Capacitor:  30uf 30uf
Fittings:  2 inch 2 inch

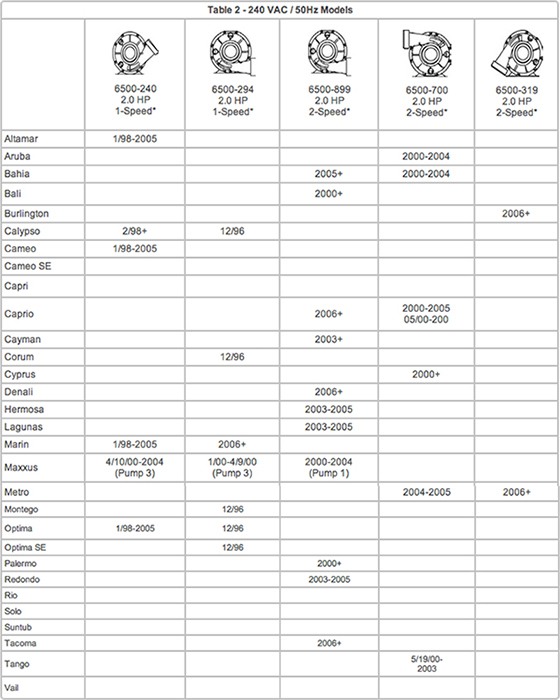

Table 2



IMPORTANT NOTE: 2008 LP & WP pumps and wet ends are manufactured with a shorter suction (approx. 15mm) and discharge port (approx. 30mm). You may find on some hot tubs with very rigid plumbing that the newer versions will not line up with pipework. The wet end faceplate moulding is different and they are also "open" on the rear of the wet end casing as opposed to the pre 08 wet ends which are encased. SEE IMAGES FOR REFERENCE.

We have a complete list of spare parts available for the:

WP200-ii pump
WP300-ii pump
LP200-ii pump

Please note the WP400-I & WP500-II cannot rotate to top left and right *please check with us.
