To make it easy to replace your GS pack we have listed them here, just look out for the name and confirm with the 5 digit Balboa serial number.
Before you commit though, you have a decision to make at this point, either replace you GS box only with all the old technology in or pay a heavily discounted price and update with a new BP8 pack & TP topside (it's slightly more work as you have to fit the new topside, thats it!) but you get the unbelievable new connectivity and features that mean you are ready for the future....we highly recommend this option as the price difference is neither here or there and the advantages are huge.Look here for everything you need to know...the Universal BP8 Pack the Universal BP8 Packages, note the only pack this does not work with is the GS520DZ, if you are looking to replace this them look here
Built on patented M7 sensor technologyEuropean safety approvalsRoHS compliant - environmentally friendlyCustom designed plastic enclosureEasy to install & serviceIntegrated functionalityState of the art designM7 flow and temperature sensors - replaces failure-prone mechanical pressure/flow switch
26.82 x 31.14 x 11.68 cm
KW: 3Volts: 230Hz: 50Fittings: 2 inch
Balboa GS501Z plastic box - Known to be an upgrade for the Signature Spas Sig 10 / 10L with Balboa PCB p/n 52158 used in conjunction with the existing Balboa VL401 Lite Duplex Digital 4 Button Touchpad Panel
Balboa GS510SZ Control Box - Can be used to replace the discontinued 2005LE M7 Spa Packs Balboa Pack 52421 and board 52422...
If you are buying this GS box due to a failure, be aware we supply the individual components for direct replacement:
GS500Z Printed Circuit BoardGS501Z Printed Circuit BoardGS501SZ Printed Circuit BoardGS510SZ Printed Circuit BoardGS510DZ Circuit BoardGS523DZ Circuit Board
If you are changing a heater then these are appropriate for all the above
3KW complete heater assembly3KW heater element only (titanium)
This pack is connected to all components via amp plugs, it is only compatiable with VL402, VL260, VL401, VL240 and mini series of touch panels.

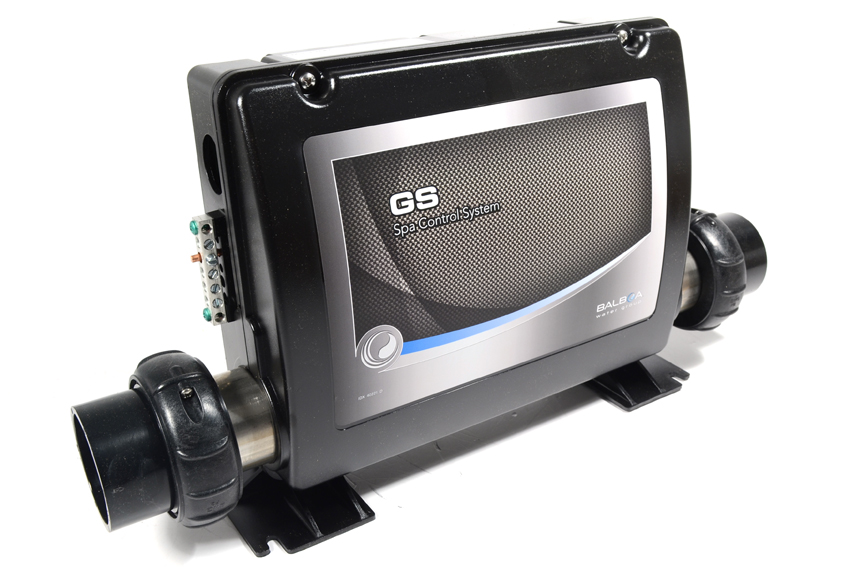

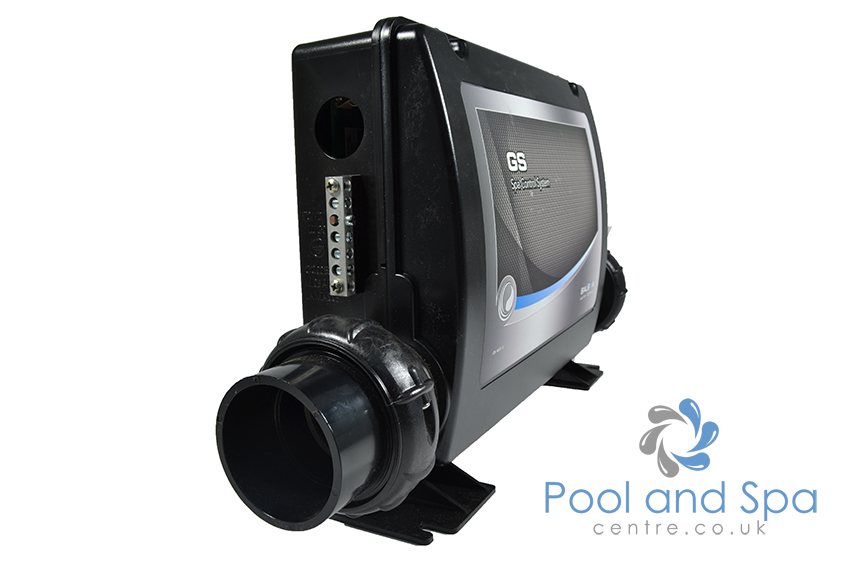

The Global Series or GS range of spa control systems are Balboa designed using M7 temperature & water flow sensing technology. This increases the reliability, serviceability and installation ease of the system box.
Easy Service & InstallationThe GS range uses a common universal control platform, the GS family has very good feature flexibilities, incorporating M7 temperature probe technology, which eliminates the failure prone pressure switch systems and simplifies the installation process by not having to drill additional holes in the spa.

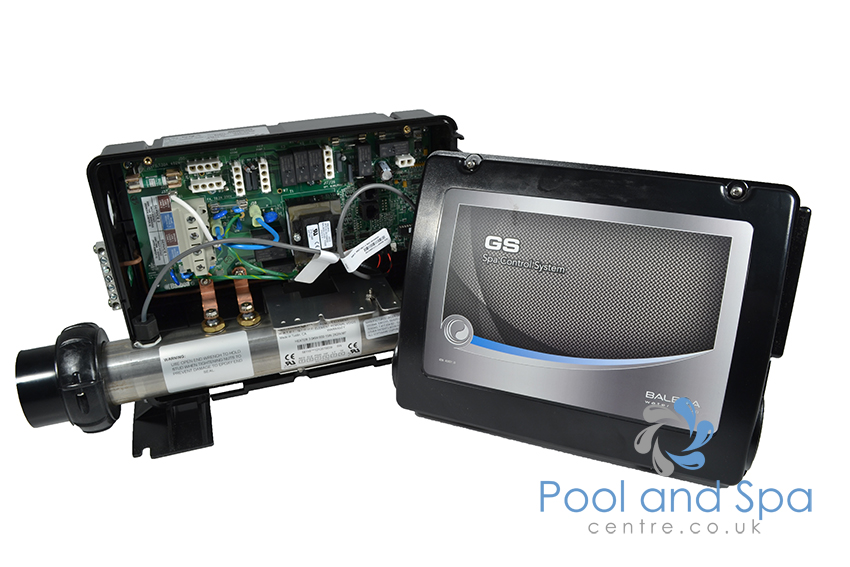

High Reliability & FlexibleAll boxes have a plastic enclosure eliminating water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.
Proven Reliability
