SKU
18223

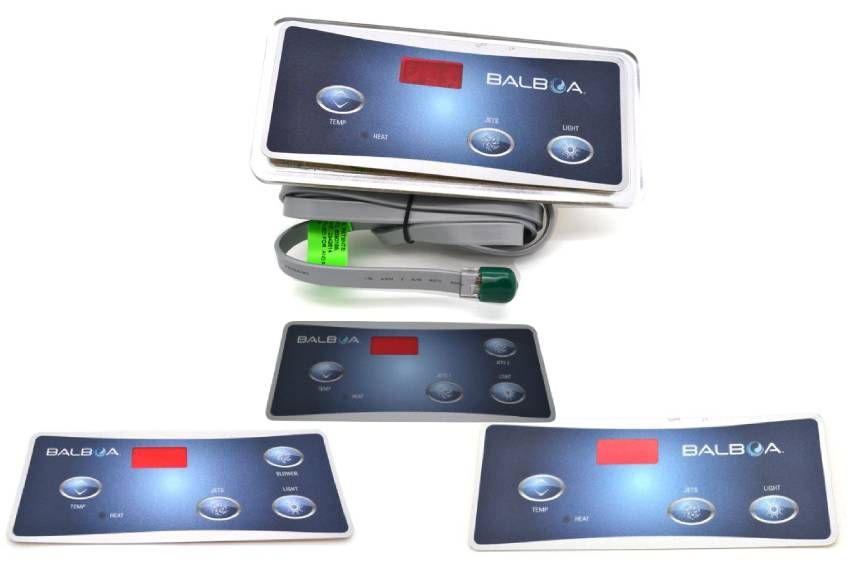

Balboa VL404 Topside Control Panel with Overlay Options

Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa VL404 no overlay Balboa VL404 no overlay 4154 54145
£124.58 £103.82
- +
3 In stock
Balboa VL404 Overlay, 3 button 1p Balboa VL404 Overlay, 3 button 1p 2810 10352
£13.81 £11.51
- +
3 In stock
Balboa VL404 Overlay, 4 button 1p + air Balboa VL404 Overlay, 4 button 1p + air 2853 10307
£13.40 £11.17
- +
4 In stock
Balboa VL404 Overlay, 4 button 2p Balboa VL404 Overlay, 4 button 2p 4083 10418
£13.75 £11.46
- +
4 In stock
Add to Wishlist

In-stock orders dispatched:14:00

Proudly, we are the UK Balboa Distributor, the most trusted name in our industry, this Balboa VL404 topside panel has either 3 or 4 buttons overlays available.

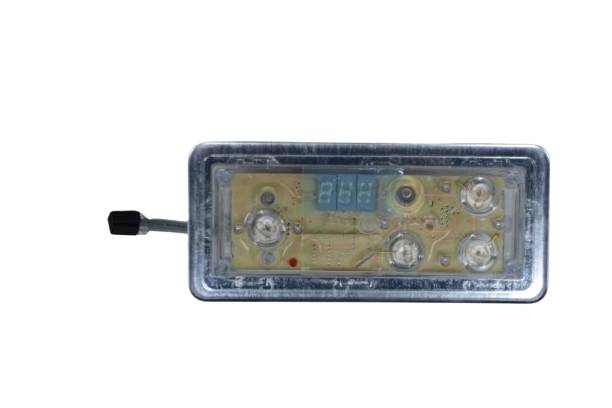

Select SKU 4154 as the back generic topside panel and then pick your overlay from the selection that marries upto the button configuration of your existing unit

The VL404 is part of Balboa's VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LED displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 54145 on a label.

  • LED Displays
  • Large, easy-to-read displays
  • Reliable communication interface
  • Maintenance reminders & alerts
  • Water-resistant connectors

Width: 186mm (6.3")
Height: 82mm (2.2")

PICK yours:

Button configurations of overlays:

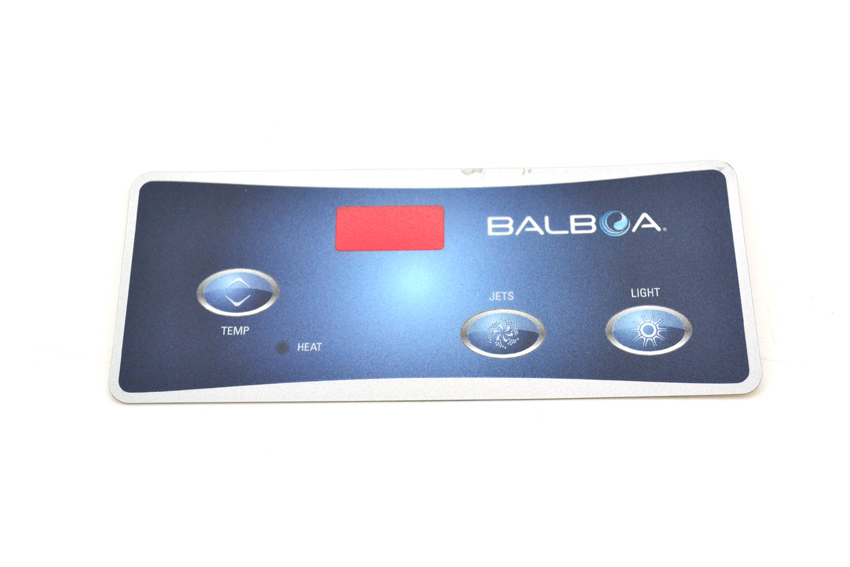

P/N 10352: Temp, Jets, Light

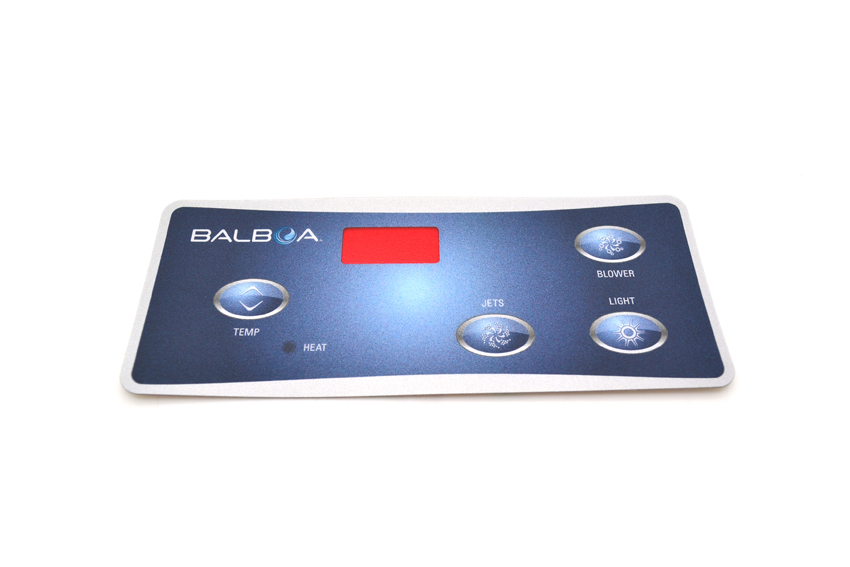

P/N 10307: Temp, Jets, Light, Blower

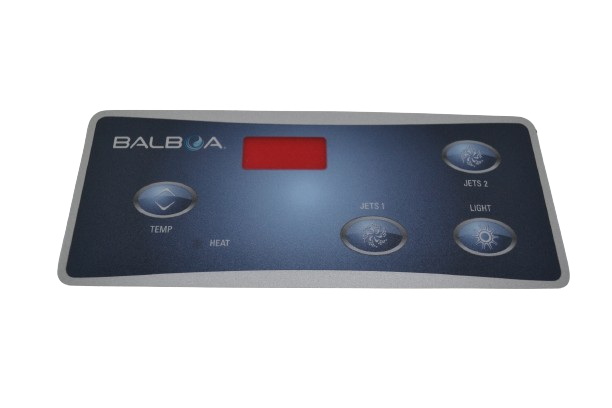

P/N 10418:Temp, Jets 1, Jets 2, Light



Hydropool, Hydrospa, GS500, 500Z, 501, 501Z, Duplex Value system, M1 series & GS100 (New Style)

This video will show you how to swop them over it takes two minutes

Please note, the size and configuration we send you will be as per the photograph, but sometimes the overlay design and colour may vary, this has no bearing on functionality & installation

Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
