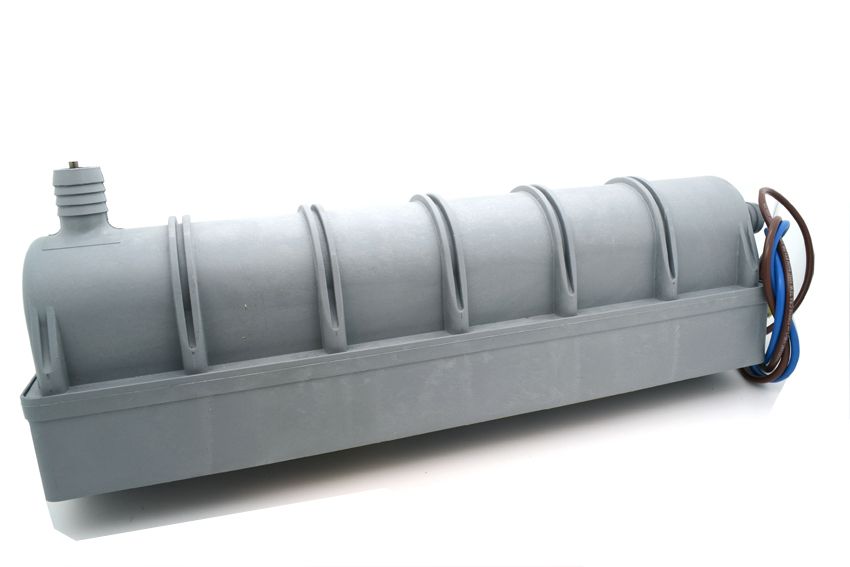

SUNDANCE® SPAS 2.7kw Smart Heater

£177.98 £148.32
Out of stock. Available for back order.
This SUNDANCE® SPAS 2.7kw Smart Heater is commonly found in hot tubs built after 2001
6500-315
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are The UK's Official Distributor for Balboa Water Group. Part Number 58335 has an RRP including VAT of: £206.17

This heater is designed to stand vertically against the control box, making installation straightforward. The 3/4 inch barb fittings at both ends connect securely to your spa’s plumbing with the aid of metal clips, ensuring a leak-free operation.

It’s important to note that this heater is unique to Sundance Spas. The heating element itself cannot be purchased separately, emphasizing the importance of maintaining the entire heater assembly for optimal performance and safety.

This heater is used in many SUNDANCE® & JACUZZI® SPAS that were built after 2001. Excluding Maxxus - This requires MPN 6500-316 Smart heater assembly, 5.5 kW

It has a grey plastic outer covering and is used in conjunction with a Laing circulation pump.

The Sundance Low Flo 2.7kW Heater is designed specifically for Sundance Spas, ensuring compatibility and optimal performance. With its robust construction and efficient heating capacity, this heater maintains your desired water temperature consistently, allowing you to enjoy your spa any time of the year.

Please note: Sensors fitted to the older version of this heater may not fit due to a design change.

Height: 105mm (excludes barbs)
Body Length: 380mm (excludes barbs)
Plumbing Connection: 3/4" (the barb is connected to the hose with a metal clip)

Specification Detail
Manufacturer Sundance
Power 240 Volts, 2.7 kW
Amperage 10.5 – 11.5 Amps
Material Plastic exterior
Flow Detection Reed flow switch in line
Connections 3/4 inch barb fitting at both ends
Length 380 mm
Diameter 107 mm

All 2001+ SUNDANCE® SPAS Export 50 Hz Models (Except Maxxus)

Replacing Sundance P/N 6500-315 and manufacturers p/n C3403-1

  • Drain the spa down, disconnect heater cables from the spa control box.
  • Push back the spring clamps that hold the 3/4 inch vinyl pipe in place.
  • Heat the vinyl pipe at these connections and remove the pipes.
  • Remove the old heater
  • Reverse the above and Install the new heater.
