Rising Dragon Pinnacle Lighting System

Please remember that water and electricity are a deadly combination and do not mix. Use any of the information contained herein AT YOUR OWN RISK.

We will not be held liable for any injuries that may result from the troubleshooting advice or installation of any electrical components in your hot tub spa unit.





The Pinnacle™ System has no complicated cabling or hub layouts, as installation means running one perimeter cable around the spa and using the patented splicing method to attach lights anywhere along this perimeter line.

The processors communicate with the other lights in the system. Rather than relying on signals being sent to corresponding diode wires, signals are sent and received using special chips sending instructions to each light.

Perimeter Cable

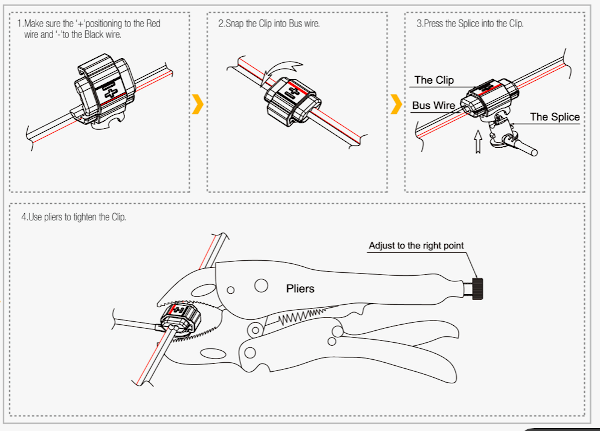

Harness Clips

Below you will find parts of the Pinnacle system making it easier for you to buy a complete system or pick a spare part.

Rising Dragons Pinnacle™ Light Series combines Precision Beam Diffusion, Wide Radius Projection. Like the Evolution system, the Pinnacle system still connects to the spa via a 12V AC out connection. This system also uses a Master light or a separate Controller to run the various lighting programs but that is where the similarities end.

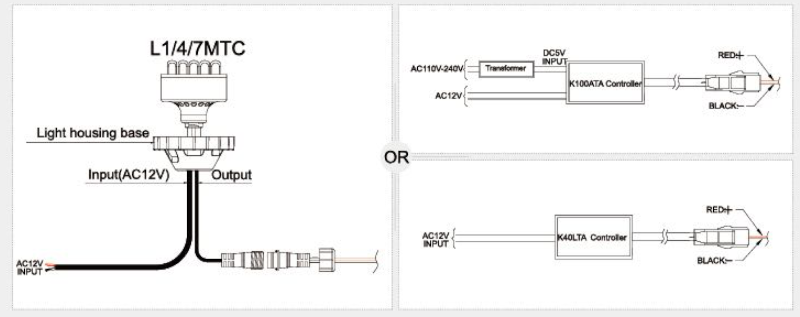

The Pinnacles system is designed to be 100% waterproof and can even be fully immersed in a spa! Two connection methods are possible, depending on the power of the lighting you wish to install. The controller associated with a transformer allows a total power of up to 20 Watts. The maximum load is 7.5 Watts with the master light.

Like the Evolution Series the Pinnacle™ series also steps down from 12V to 5V to reduce heat and increase your system life expectancy while still delivering more light to your eyes with less energy than any product in the industry. It also shares the memory function.

Controllers

K040L-TA0TL
K075L-TA0TL
K100A-TA0TL
K150B-TA0TL

Transformers

Rising Dragon Transformer Pinnacle K100 System
Rising Dragon Transformer for K150 System

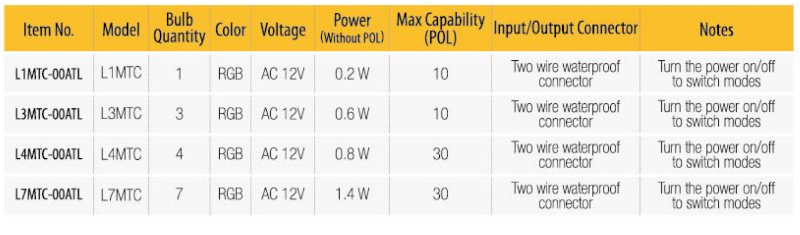

Master lights

L1MTC-00ATL
L3MTC-00ATL
L4MTC-00ATL
L7MTC-00ATL

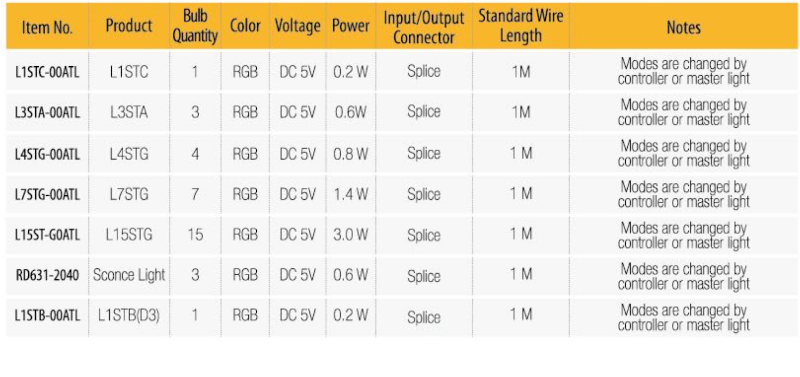

Main Lights

L1STC-00ATL
L3STA-00ATL
L4STG-00ATL
L7STG-00ATL
L15ST-G0ATL

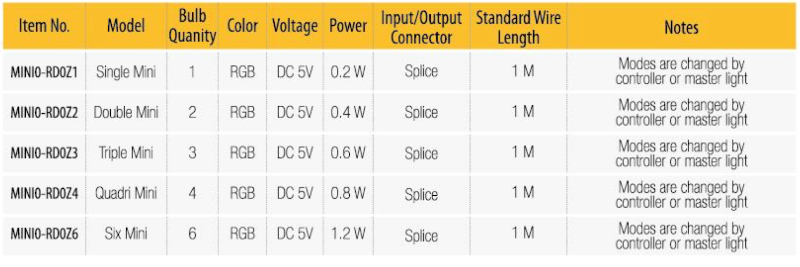

Mini POL's

MINI0-RD0Z1
MINI0-RD0Z2
MINI0-RD0Z3
MINI0-RD0Z4
MINI0-RD0Z6


Housings

Clear Housing
Opague Housings
POL Nut Housing
