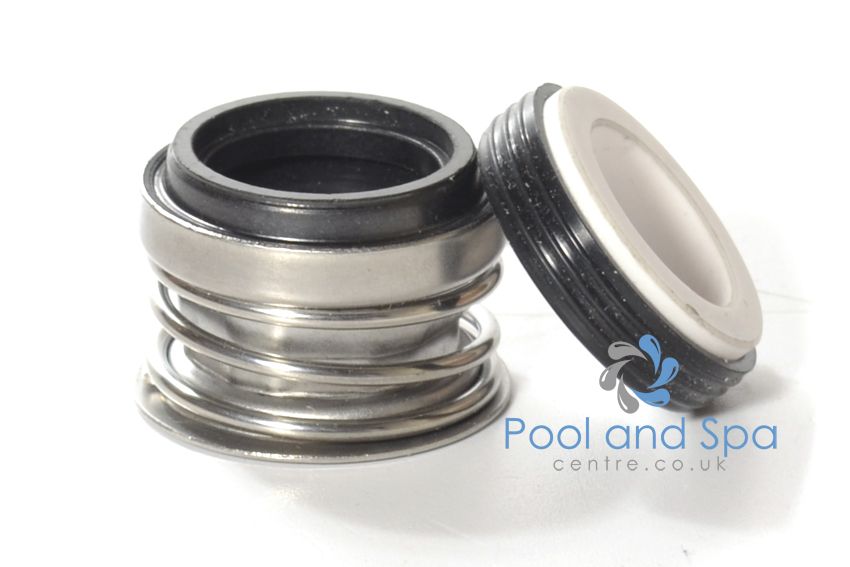

This is a very common 2 part water pump shaft seal kit for the Chinese DH1.0 Bath Pump.

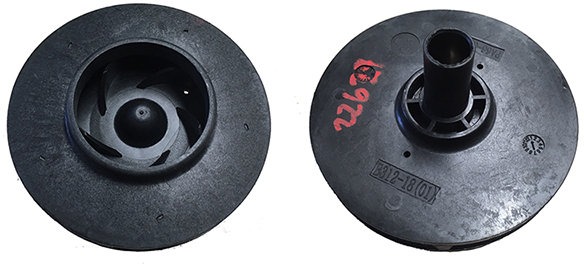

Sometime during the manufacturing process of the DH1.0 pumps, the seal, impellor and wetend were changed. This seal is compatible with the old-style impellor as shown below.
Unfortunately, we are not sure of the exact date of the change only that it was sometime in 2018 so we recommend you check your existing seal prior to ordering. You can also check your pump label. If it states LX-16 on the bottom right corner you will require the new style DH1.0 seal kit.
Diameter of both parts: 30mm.Complete length (both parts): 29mm.
Pre 2018 Whirlpool LX DH1.0 Bath Pump. (Please check your pump label or existing seal prior to ordering).
Please note this does not fit other LX pumps.
Typically you do not need silicone to guarantee a water tight seal as the rubber washer makes a water tight fit against the plastic housing.
Starting at £8.40 £7.00
Starting at £97.25 £81.04
