LX Whirlpool Pump Seal

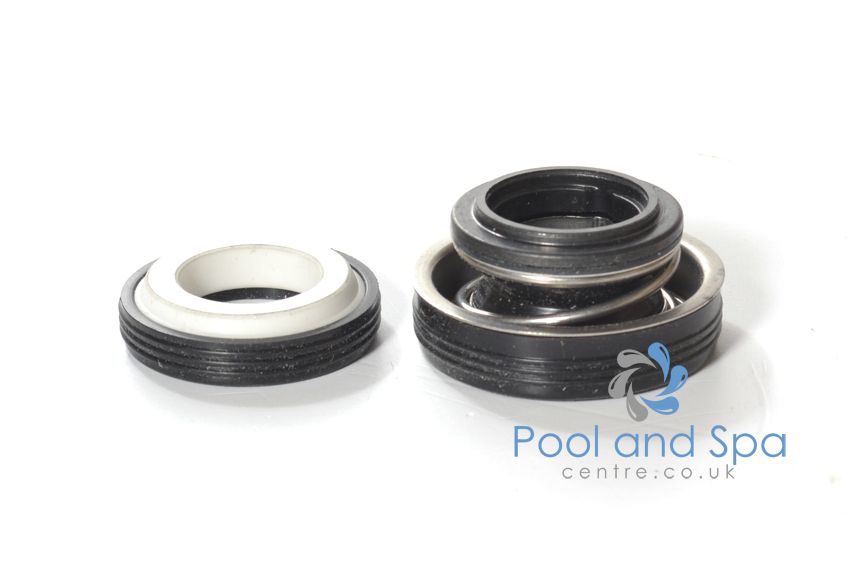

This is a very common 2 part water pump shaft seal kit for the Chinese LX Pump range.

This is the new seal material is Carbon/Sic/Viton. It is more resistant but slightly more expensive, but in the grand scheme of things worth the extra

This will not fit the other LX pumps prior to 2008.

• Diameter of Ceramic part: 35mm.
• Diamater of Sprung load part: 42mm
• Complete length (both parts): 29mm.

LX -
JA35,
JA50,
JA75,
JA100,
JA120,
JA150,
JA200,
TDA50,
TDA75,
TDA 150,
TDA200,
WTC50M,
EA320,
EA350,
EA390,
EA450,
LP150,
LP200,
LP250,
LP300,
WP200-II,
WP250-II,
WP300-II.

This will also fit DH1.0 pumps manufactured from late 2018 however it is worth checking which type of seal you have in your existing pump prior to ordering. If your pump label states LX-16 then you will require this seal kit.

Typically you do not need silicone to guarantee a water tight seal as the rubber washer makes a water tight fit against the plastic housing.
