SUNDANCE® SPA / JACUZZI® Low Flo 5.5kW Heater 6500-403

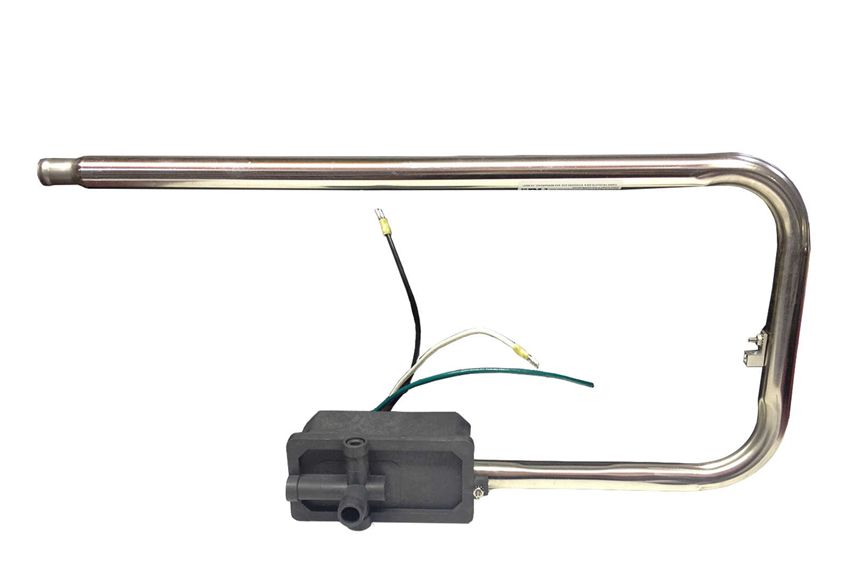

This is the heater assembly commonly known as a 5.5KW Lo-Flo Infinity / Portofino / Sweetwater heater, predominatley used in SUNDANCE® SPA / JACUZZI® hot tubs.

Length: 295 mm
Diameter: 107 mm
Overall length complete: 580 mm

Volts: 240
KW: 5.5
Amps: 22.9
Flow : Reed flow switch in line

Connections & Fixings: 3 Wire with Spade Connectors

Used in Sundance/Jacuzzi Spa Models:
2011+ Constance and Victoria
2008+ 680 Burlington, Hartford and Hawthorne with Circ pump
2007+ 680 Hartform and Hawthorne with Circ Pump
2007+ 780 Hamilton, Chelsee, Certa and Camden
2003-06 Palermo, Bahia and Cayman
2011+ All J-LX/J-LXL
2002-06 J-350, J-330
2004+ J-335, J-345, J-355
2005-07 J-325
2007+ J-375, J-365, J-270, J-280

Replacement Option For:
AI #2-00-0029 / MFG #C3549-1
AI #2-00-0070 / MFG #C3236-1A
MFG # 58315, 58371
MFG #6698
MFG #66980
MFG #6500-403
MFG #C3229-1A
MFG #C3229-2A
MFG #26-3229-2A-7T MFG #1-HA-E24055LS
MFG #SEH-5500-NH-6698
Aber-Pacific
Artesian
Atera
Dimension One
Dynasty
HydroQuip
LA Spas
Santa Barbara

Note: Plumbing Adjustments May Be Required for Replacements Due to Original Heater Not Available
