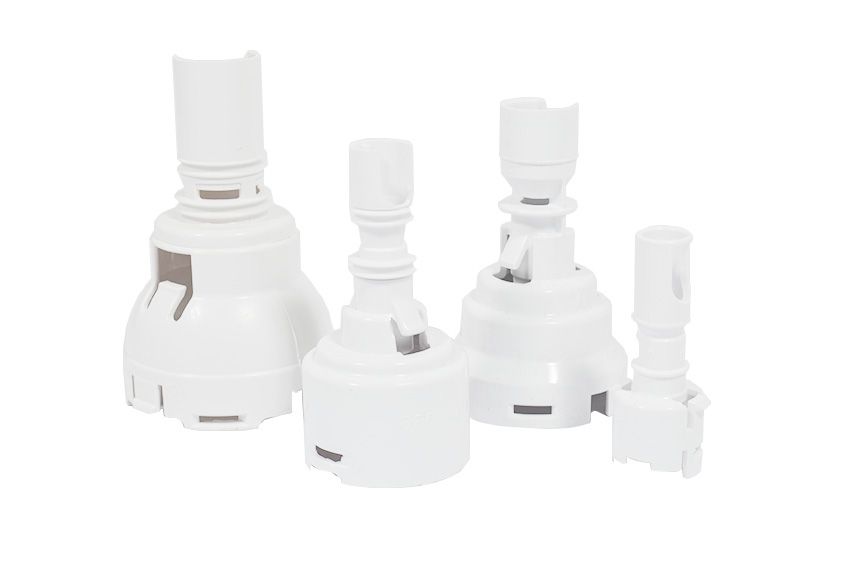

Waterway Jet Diffusers

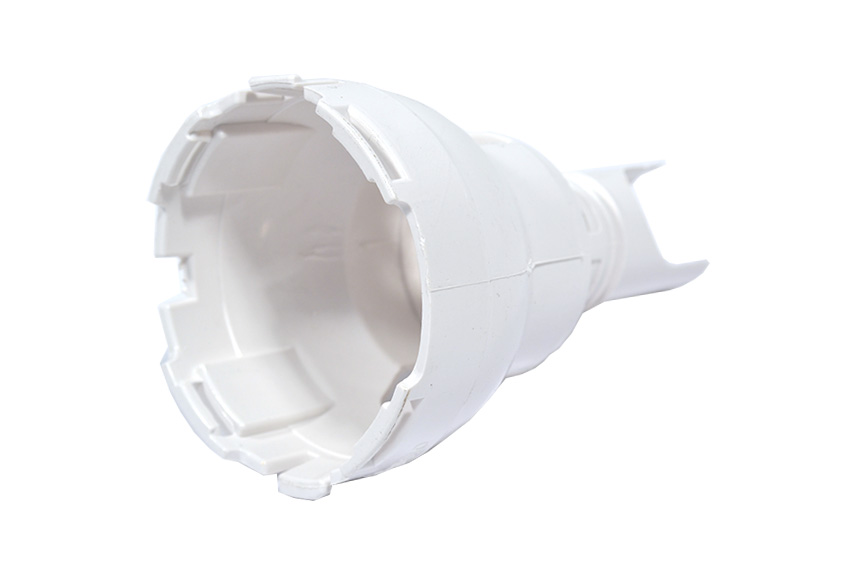

Manufacturers Code: 218-5140 - Cluster Storm Diffusers
Length (cm): 6.5
Width (cm): 2.4
Internal Diameter (cm): 2.2

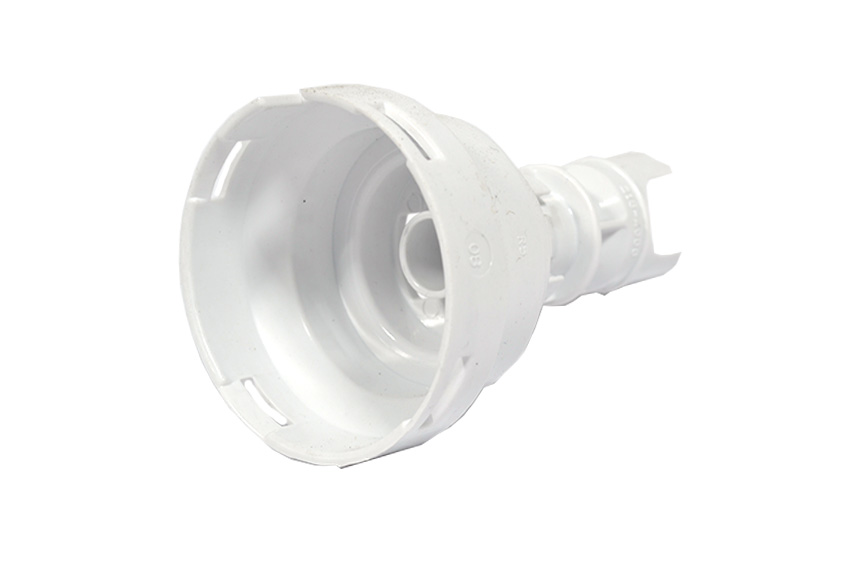

Manufacturers Code: 218-6930 - Mini Storm Diffusers
Length (cm): 8.5
Width (cm): 4.5
Internal Diameter (cm): 4.3

Manufacturers Code: 218-4000 - Poly Storm Diffusers
Length (cm): 9
Width (cm): 5.5
Width (cm): 5.3

Manufacturers Code: 218-6610 - Power Storm Diffusers
Length (cm): 10.5
Width (cm): 7
Internal Diameter (cm): 6.7

Manufacturers Code: 218-1600 - Whirlpool Jet Diffusers
Length (cm): 12
Width (cm): 6.5
Internal Diameter (cm): 6.3

Be aware we list these names as reference only you must check for part numbers and the design prior to ordering as many spa companies have changed between jet manufacturers though-out the years and we are not responsible for the accuracy of this list

Alp Spa, Beachcomber, Caldera, Catalina, Canadian Spa, Coast Spa, Coyote Spa, Elite Spa, Emerald Spas, Gulf Coast, Master Spas, Spa Crest & Spaform and many more brands.

Please note these instructions are for guidance only we do not take responsibility for there veracity.

Simmer some water in a saucepan.

Position the old jet face on a towel on a flat surface ready for the following downward pressure.

Make sure you have identified how the diffuser locates onto the jet - it will only clip into one position.

Place the diffuser (only the first 1-2mm of the plastic) into the simmering water for around a second and then immediately offer to the old jet face and then apply equal downward pressure.

Important: Regarding the Powerstorm diffusers, depending how old your jet is you may find that the lip on your existing jet face is to large to fit into the slot on the newly designed diffuser and therefore you may have to carefully cut down this lip to fit or alternatively replace the complete jet.
