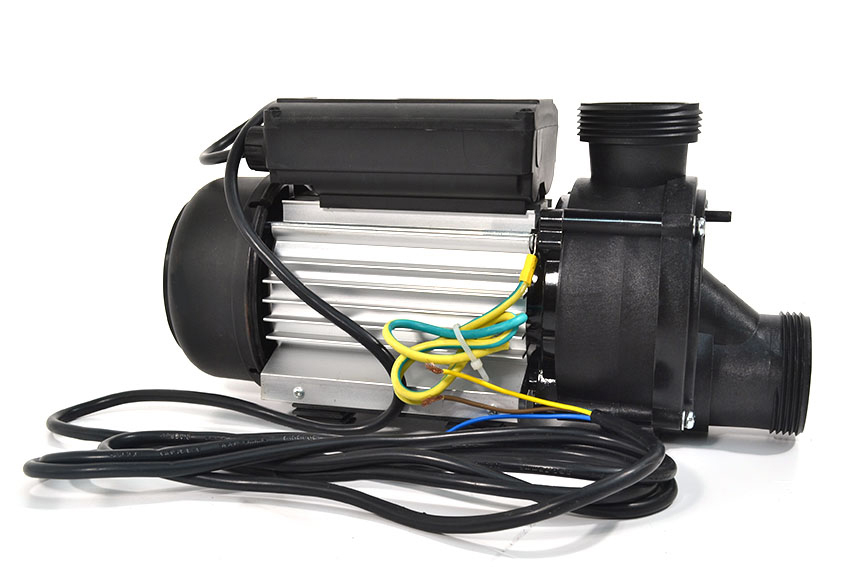

HydroAir HA350 Pumps

The HA350 models provide innovative motor design with efficient cooling of the electric motor and front bearings, ensuring longer life.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
HydroAir HA350 Pumps (Self Drain)	HydroAir HA350 Pumps (Self Drain)	709	21-35421	£157.88 £131.57	- +	3 In stock
HydroAir HA350 Pumps (Centre Discharge)	HydroAir HA350 Pumps (Centre Discharge)	710	22-35221	£179.02 £149.18	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

We are The UK's Official Distributor for Balboa Water Group. Part Number 22-35421 has an RRP including VAT of £217.95

The HA 350 pump family is an excellent combination of compact design, low noise and brilliant performance.

Due to this extensive range and the different parameters we offer, we normally ship within 7-10 days of order.

View our video in the gallery to see "How to Identify your Hot Tub Pump"

Features

2 wet end models
The HA 350 pumps are equipped with either a self-draining wet end or a centre suction wet end with a drain connection. The standard thread is Buttress but upon request, we can also offer BSP thread to suit exactly your demand. Typically it is 50mm

Dry run protection
One of the optional, innovative features is "dry run" protection. This feature provides optimal security for pneumatic pumps.

Flexible installation
Besides the special integrated anti-vibration feet, we can also offer pumps with a preinstalled mounting plate to ensure easy and fast installation. Also, BSP thread is an option.

Approvals
The HA 350 pumps are TÜV approved according to European norms EN60335-1 and EN60335-2-41 with focus on EN60335-2-60 where relevant.

Dimensions

See photo gallery above for technical drawings.

Specifications

HA 350, 0.68kW

Part No.	Power (P1)	Performance (P2)	V/Hz	Pneumatic (preset for elect. use)	For var. speed	Self drain	Centre suction with drain conn.
21-35421	0.68kW/0.91HP	0.56kW/0.75HP	220-240V/50Hz	x	x	x
21-35221	0.68kW/0.91HP	0.56kW/0.75HP	220-240V/50Hz	x	x		x

HA 350, 0.68kW, dry run

Part No.	Power (P1)	Performance (P2)	V/Hz	Pneumatic (preset for elect. use)	Dry run protection	Self drain
21-35421DRP	0.68kW/0.91HP	0.56kW/0.75HP	220-240V/50Hz	x	x	x

HA350E, 0.45kW

Part No.	Power (P1)	V/Hz	Pneumatic (preset for elect. use)	Self drain
20-25821	0.45kW	220-240V/2.0A	x	x

Remember to order unions with Buttress thread separately. For the dry run model hose and quick-connection must also be ordered separately.

Ideal For

21-35421 replaces the following pumps (please note some remedial pipework changes may need to be undertaken).

20-35321
GG10.66XP
GG10.66
21-4532(1)
GD050-2XC-S was replaced by 20-4532 and both are replaced by the 20-35421 /21-35421 now
GD075-2XC-S was replaced by 20-4532 and both are replaced by the 20-35421 /21-35421 now
GD050-2XD-S was replaced by 20-45321 and both are replaced by the 20-35421 /21-35421 now
GD075-2XD-S was replaced by 20-45321 and both are replaced by the 20-35421 /21-35421 now
GXD75-2XC-S1 was replaced by 20-4532 and both are replaced by the 20-35421 /21-35421 now
GXD75-2XD-S1 was replaced by 20-45321 and both are replaced by the 20-35421 /21-35421 now

21-35221 replaces the following pumps (please note some remedial pipework changes may need to be undertaken).

21-4522(1)
GC050-2XC-S was replaced by 20-4522 and both are replaced by the 20-35221 / 21-35221 now
GC075-2XC-S was replaced by 20-4522 and both are replaced by the 20-35221 / 21-35221 now
GC050-2XD-S was replaced by 20-45221 and both are replaced by the 20-35221 / 21-35221 now

21-35421DRP replaces the following pumps (please note some remedial pipework changes may need to be undertaken).

GG10-66LWP
