LX pump impellor range

A range of impellors from the Chinese LX range of pumps

Grouped product items
Product Name	SKU	MPN	Qty	Stock
DH1.0 impellor - Old Style	DH1.0 impellor - Old Style	22629	£12.04 £10.03	- +	13 In stock
JA35 & TDA35 impellor	JA35 & TDA35 impellor	7570	£12.04 £10.03	- +	12 In stock
JA50 & TDA50 impellor	JA50 & TDA50 impellor	7571	£12.04 £10.03	- +	5 In stock
LX - LP150 impellor	LX - LP150 impellor	27029	£17.47 £14.56	- +	26 In stock
TDA150 and JA150 impellor	TDA150 and JA150 impellor	18924	£14.14 £11.78	- +	4 In stock
JA200 & TDA200 Impeller	JA200 & TDA200 Impeller	22724	£14.14 £11.78	- +	5 In stock
LX - LP200/WP200 impellor	LX - LP200/WP200 impellor	7572	£13.78 £11.48	- +	5 In stock
LX-LP250 &WP250 impellor	LX-LP250 &WP250 impellor	18884	£14.52 £12.10	- +	24 In stock
LX-LP 300 / WP 300-II impellor	LX-LP 300 / WP 300-II impellor	7573	£13.78 £11.48	- +	30 In stock
JA75 - TDA75 impellor	JA75 - TDA75 impellor	45590	£22.13 £18.44	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

A selection of replacement Chinese impellors to suit the LX pump range.

Dimensions

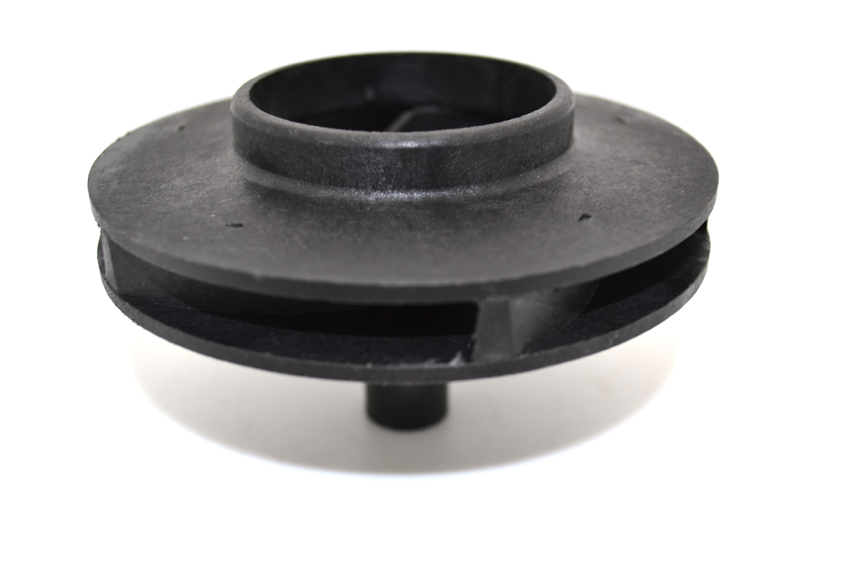

DH1.0 impellor dimensions - SKU22629
Diameter: 100mm
Height: 55mm
Impellor HP Size: 1
Markings: B312-18 and PA66-GF30
Vane Gap: 9mm
Intake outer diameter: 54mm

JA35 & TDA35 impellor dimensions - SKU7570
Width (cm): 80mm
Height: 56mm
Impellor HP Size: 0.35hp
Markings: Non visible
Vane Gap: 6mm
Intake outer diameter: 44mm

JA50 & TDA50 impellor dimensions - SKU7571
Height: 58 mm
Diameter: 95 mm
Impellor HP Size: 0.5hp
Markings: PA2
Vane Gap: 5.5mm
Intake outer diameter: 44mm

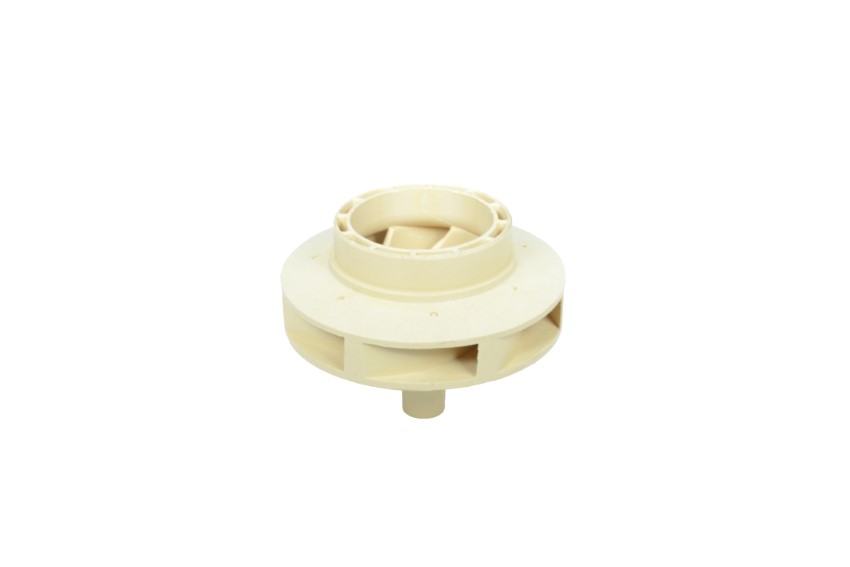

LP150 impellor dimensions - SKU27029
Width: 97mm
Height: 75mm
Impellor HP Size: 1.5
Vane Gap: 12mm
Intake outer diameter: 60mm

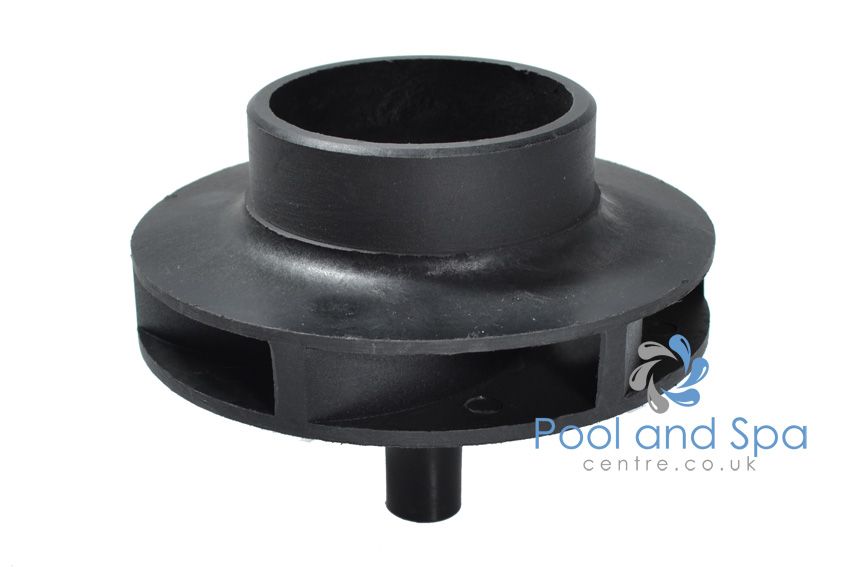

LP200/ WP200 impellor dimensions-SKU7572

(please note is interchangeable with SKU18884 (LX LP250 and WP250) but will have slightly less strength than the original)

Width: 109mm
Height: 75mm
Impellor HP Size: 2
Vane Gap: 11mm
Intake outer diameter: 61mm

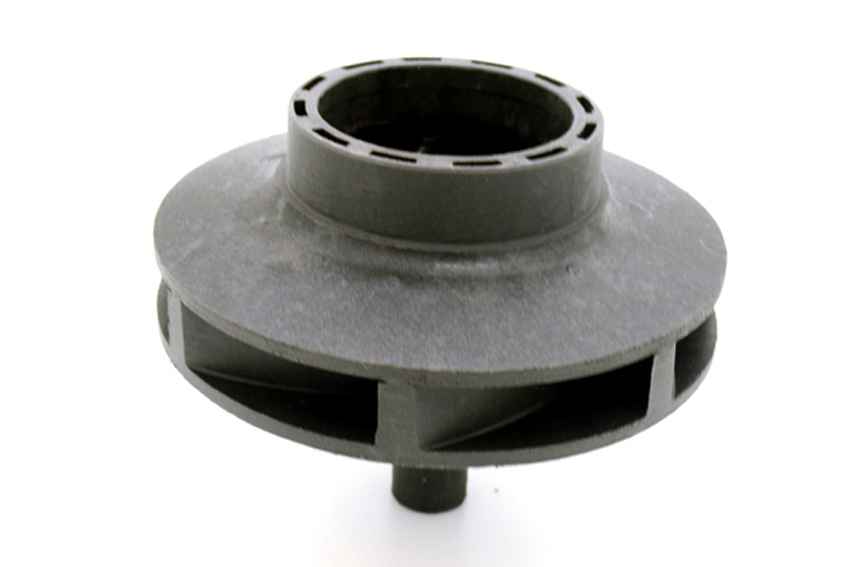

LP250 / WP250 Pump Impellor - SKU18884

(please note is interchangeable with SKU7572 (LX LP200/WP200 impellor) but will have slightly more power than the original)

Width: 112mm
Height: 80mm
Impellor HP Size: 2.5
Vane Gap: 11mm
Intake outer diameter: 60mm

LP 300 / WP 300-II impellor dimensions - SKU7573

Diameter: 117mm
Height: 72mm
Impellor HP Size: 3
Vane Gap: 10mm
Intake outer diameter: 60m

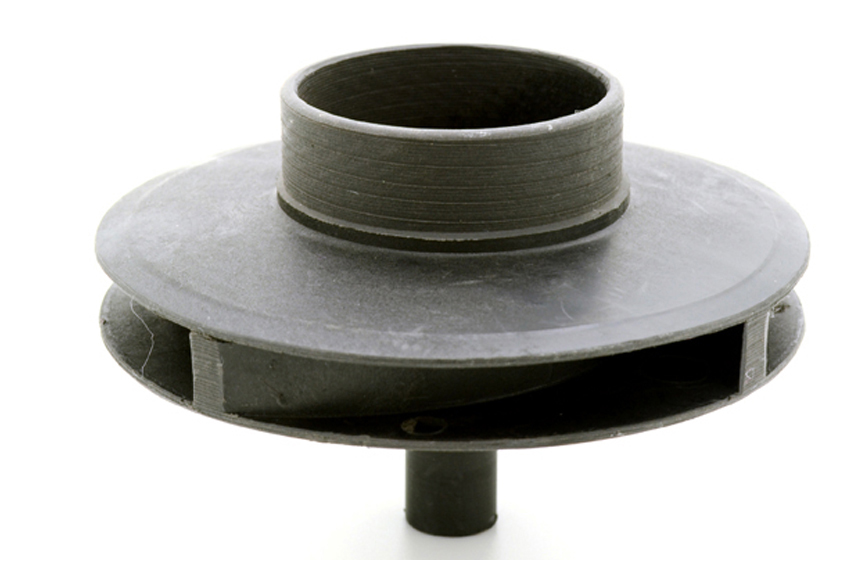

TDA150 and JA150 impellor dimensions - SKU18924

Width: 105mm
Height: 70mm
Impellor HP Size: 1.5
Markings: B168-150
Vane Gap: 10mm
Intake outer diameter: 55mm

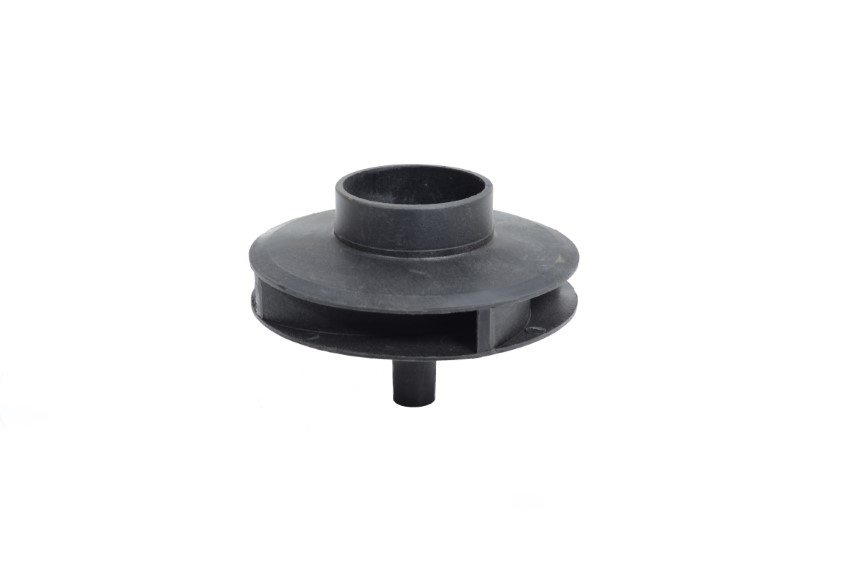

JA200 and TDA200 impellor dimensions - SKU 22724

Width: 113mm
Height: 80mm
Impellor HP Size: 2.0
Markings: B168-02
Vane Gap: 15mm
Intake outer diameter: 54mm

JA75 and TDA75 impellor dimensions - SKU 22724

Width: 94mm
Impellor HP Size: 0.75
Markings: B432-01
Vane Gap: 7mm
Intake outer diameter: 54mm

Additional Info

Some impellors have numbers embossed onto them. Unfortunately, we cannot confirm the correct replacement based on this number as these sometimes change or the same number is embossed onto numerous HP impellor. We advise checking the dimensions of your existing impellor and comparing to those listed above.

We always recommend when replacing the impeller you also replace the seal.

This seal suits all LX impellors (except the DH1.), however the DH1.0 seal can be found here
