Balboa BP2100 PCB

£351.56 £292.97

Availability: Out of stock. Available for back order.

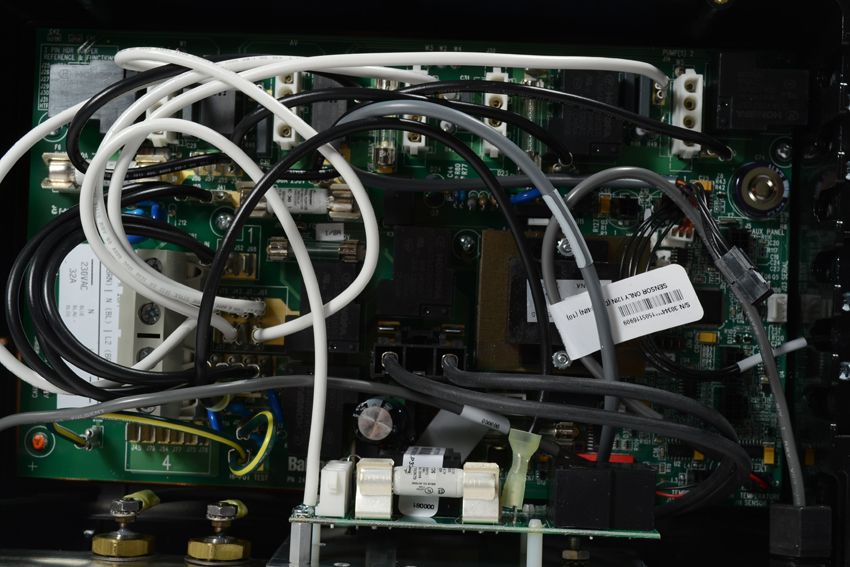

This is the Balboa BP2100 circuit board, it has a part number of 56392-02.

MPN: 59176-01

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

We are The UK's Official Distributor for Balboa Water Group. Part Number 59176 has an RRP including VAT of: £482.42

This is the Balboa BP2100 circuit board, it replaces the older PCB with a serial number of 56392-02.

Ideal For

The BP2100 control packs, you can use this board with Balboa TP Series Topside panels such as TP400 and TP600.

Instructions

Pump 1: Either a Dual speed pump or a Single speed pump and separate circulation pump.
Pump 2: Either a Single or Dual speed pump
Pump 3: Either a Dual speed pump or a Single speed pump, if a blower is being used below
Air Blower: Single speed blower (if pump 3 above is single speed)
Heater: x 1 (3kW, plug)
Ozone: x 1
Light: x1, 10v @ 1amp Max
Radio/TV/AV: Point available
Volts: 230vac
Hz: 50

Additional Info

This hot tub circuit board must only be fitted to the hot tub control system specified, it should be fitted by a competent individual as all our boards are tested prior to sending out, so we recommend you read our easy to understand PCB installation notes in our troubleshooting section as a faulty install will result in board damage and invalidate your warranty.

Compatibility
