SKU

G463

Balboa HA440NG Magnaflow Pumps.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
HA440NG Magnaflow - Two Speed	HA440NG Magnaflow - Two Speed	611	1023024	£446.69 £372.24	- +	Available for Back Order
HA440NG Magnaflow - Single Speed	HA440NG Magnaflow - Single Speed	612	1023063	£378.52 £315.43	- +	1 In stock

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

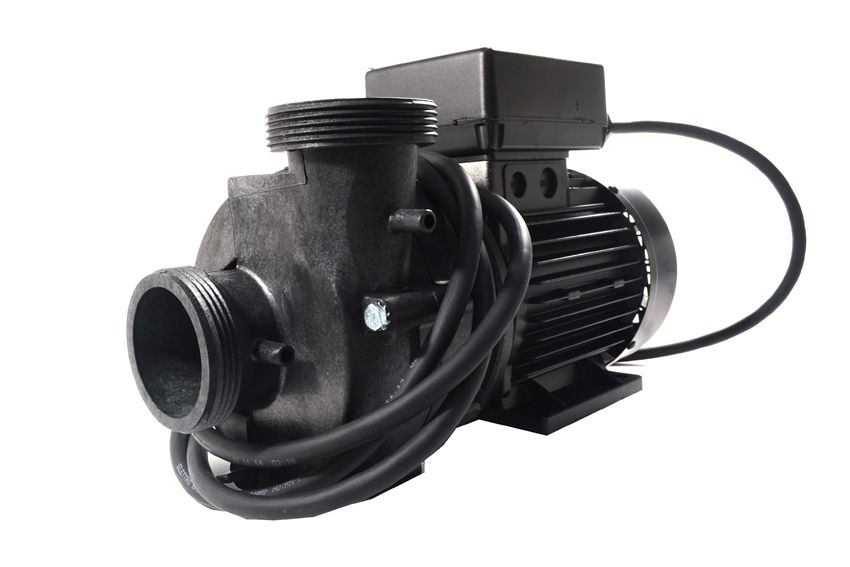

The HA440NG is manufactured by Balboa Water Groups pump division Hydroair, of whom we are the UK distributer, it is the ultimate benchmark in design, performance & flexibility and directly replaces failed Spaform hot tub pumps.

We offer both single and twin speed variants and the wet end has a 2" suction and 2" discharge (Outside diameter across the threads is 78mm)

Not sure which pump you need?

Below is a breakdown of what to check. First will be AMPs and RPMs.

If there is only one rating then it will be a single speed, if there is two, you guessed it ... two speed.
AMP ratings will typically be 5 – 7 amps = 1.5 (HP), 7–9 amps = 2.0 (HP), 9–11 amps = 2.5 (HP), 11–12 amps = 3.0(HP) & 14–15 amps = 4.0 (HP)
RPM rating will normally be 1450 for low speed and 2900 for high speed.

Next, check the outside diameter's of the threads for your pipe connections.

Most wet ends can be rotated to 3, 9 and 12 o'clock so no need to worry about that.

It is worth checking overall dimensions of the pump before ordering to ensure you have enough space for the new pump.

Now you have all the information to look through our Jet Pump Range!

Looking for a cheaper alternative?

SKU	Description	RWA™ Alternative
611	2hp Two Speed	2HP Two Speed SKU 44913
612	2hp Single Speed	2HP Single Speed SKU 44910

The unions are a direct match, but just check the images in the gallery as there is a height slight difference in the wet end, so ensure you have a bit of play with the pipes, also we do not guarantee the holding bolts will fit, remember they are just used in the transportation of the hot tub (not at all essential), the RWA alternative comes with anti vibration pads to remove excess noise.

Dimensions

Length: 390mm
Height: 230mm
Depth: 190mm
Electrical: Supplied with either a 3 core (single speed) or 4 core (twin speed) cable with AMP plug. (this can be swapped over with your old pump cable if required)
Unions: Unions are supplied

Specifications

HA440 - Single Speed	HA440 - Two Speed
Amps: 5.7	Amps: 1.5 (low) / 5.7 (high)
Volts: 230	Volts: 230
Hz: 50	Hz: 50
Motor HP: 2.14	HP: 0.43 (low) / 1.86 (high)
RPM: 2800	RPM: 1400 (low) / 2900 (high)
Capacitor: Check existing pump
Fittings: 2 inch	Fittings: 2 inch

Ideal For

Whether you have the old Hydroair HA440 (black wet end with O'ring) / Hydroair HA440 (grey wet end ) Hydroair HA440 (black wet end ) or the discontinued Genesis GC150-2XJ-B with the blue wet end, this is the pump for you. It also replaces Sirum pumps fitted to a Certikin Bordeaux.

Typical part numbers will be 95-4409-SF for single speeds and 95-44092-SF for two speeds

Suitable for all Spaform Spas including Atlantic, Esperanto, Fraser, Geneva, Grand Canyon, Milano, Odyssey, Oslo, Platimun, Tango, Utopia, also fited to Aegean, Hindhead DIY Series amongst others.

The single speed HA440NG can also be used to replace the Balboa Niagara pump model 1023003 & 1023007.

Can Be Used With

Replacement For

Two Speed Part numbers SKU611 (1023024)
HydroAir: 1023024, 1023033, 1023076
Dream Maker Spas: 405010

Single Speed Part numbers SKU612 (1023063)
HydroAir: 1023063, 1023065

Instructions

The wiring on these pumps will typically be:

Brown - Primary Live
Black - Secondary Live
Grey or Blue - Neutral
Green/Yellow - Earth

The new generation are labelled 1.5HP, but don't worry the superior technology mean the performance curve matches exactly the old HA400 pumps and is a direct replacement.

Please don't be daunted by the information below, we have completed these changeovers over 800 times before and it is extremely easy with our help - after all that's what we are here for.

Replacing a Version1 HA440 (black wet end with O'ring)

If you are replacing a Version One Wet Ended (Black) HA440 Pump, it is fitted with an o'ring in the discharge outlet, you must purchase a thick gasket which in most case will overcome this problem. Then it is a straight swap.

Thick Gasket

Replacing the GC150-2XJ-B motor only:
The replacement motor can be found here GC150-2XJ-B motor replacement.

Replacing GC150-2XJ-B Complete Pump:

The blue wet end and its component parts is now discontinued. So if the impeller is broken its unfortunately a new pump.

Be advised it is not a straight swap for the GC150 as there are a few plumbing changes needed. We have done over 800 changeovers without any failures (so there's not many left out there ), we supply all the parts to make the conversion as easy as possible for you and we can help you if you would take a photograph of the pump in position. showing the pipework, then we can build the pipework up for you and explain the quickest and easiest way to carry out the installation.

This is easy to do if you are fairly well DIY proficient. Gives us a call and we'll happily guide you through it.

This pump will perform at its best with 2 inch plumbing. This pump does not always perform at its best when plumbed in to 1.5 inch plumbing combined with running through a water diverter valve.

Replacing a Version 2 HA440 (grey wet end)

A straight swap - no need to worry about anything.
